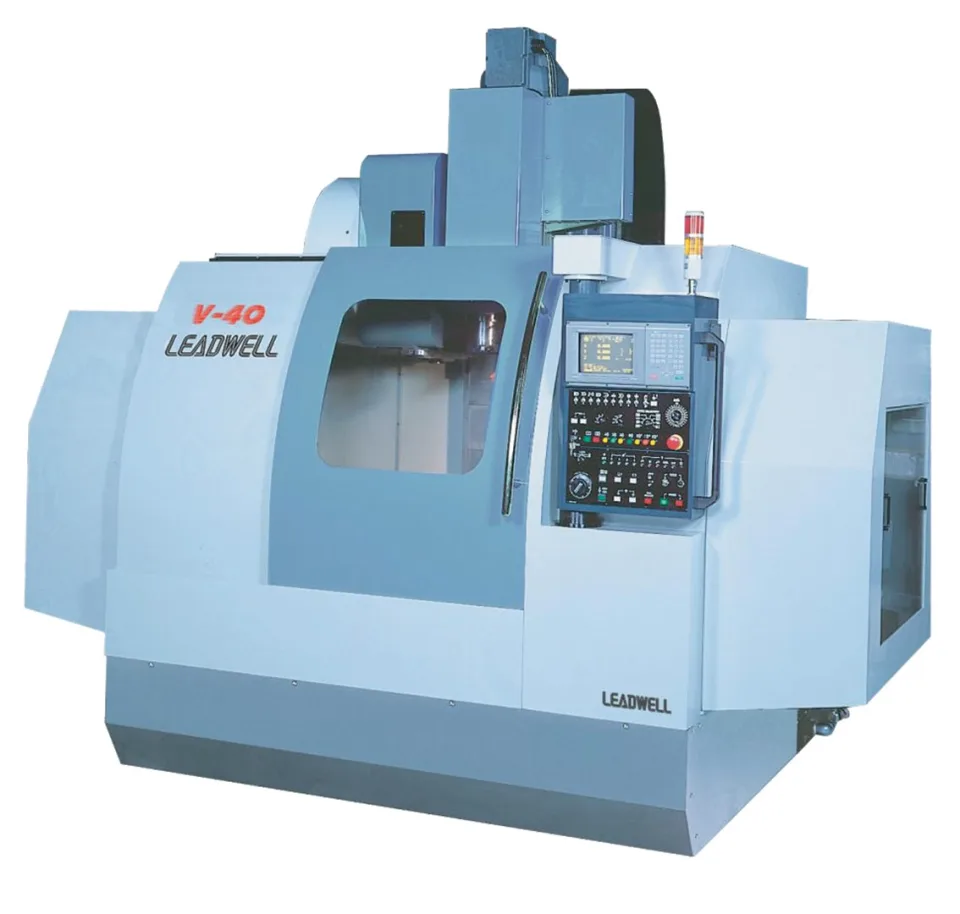

Leadwell V-40 CNC Vertical Machining Centre
Siemens 802D SL
POA
CNC-0-1041 | Prices exclude GST
Product overview
About this machine.
Quality Taiwanese Manufacturing
Scott package includes
- 24 Tool arm type ATC
- 8000rpm spindle
- 4th Axis preparation
- Rigid tapping
- Inside screw type chip conveyor
- RS 232 interface
Options
- 10000 rpm spindle
- 15000 rpm spindle
- 20000 rpm spindle
- 45000 rpm attachment
- Chain type chip conveyor
- 2 speed geared head
- Automatic tool length measurement
- Automatic tool breakage detection
- 4th axis package
- 20 Bar CTS Coolant thru spindle
- Fanuc Oi Control
- Fanuc data server interface
- Other conrols available
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | V-40 | |
|---|---|---|
| Travel | ||
| Travel on X axis (Table, longitudial) | mm | 1020 |
| Travel on Y axis (Table, cross) | mm | 510 |
| Travel on Z avis (Spindle, vertical) | mm | 510+110 |
| Table | ||
| Table top to spindle nose | mm | 160-670 |
| Working Area | mm | 1200x500 |
| Spindle | ||
| Spindle Taper | BT40 | |
| Spindle speed r.p.m. | 80-8000 | |
| Feedrates | ||
| Rapid traverse speed, X,Y/Z | mm/min | 24000/18000/24000 |
| Automatic Tool Changer | ||
| Number of tool pots / Arm type ATC(OPT.) | 20/24 | |
| Motors | ||
| Spindle motor 30min./continuous | HP | 12/10 |
| Miscellaneous | ||
| Total machine wieght | kg | 6000 |
