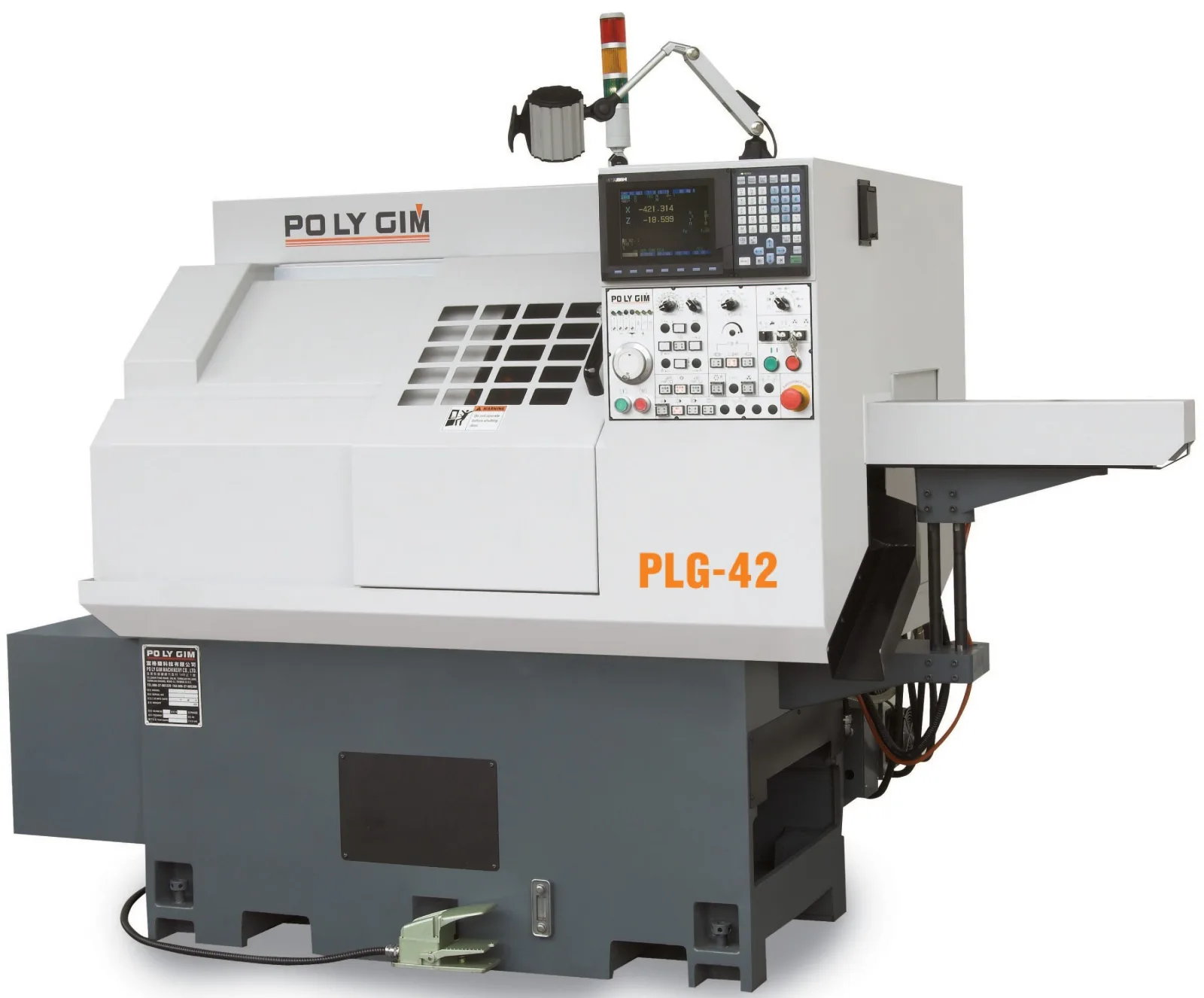

Polygim PLG-42 CNC Lathe
1 / 4
Polygim logo CNC-0-4200

CNC Machine Tools · Turning centres

Polygim PLG-42 CNC Lathe

Simplified design that is suitable for mass production

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Spindle bore 55mm
Poly Gim PLG-42
Max turning diameter 130mm
Max turning length 160mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

In addition to excellent products, Poly Gim offer second to none performance with a simplified design that is suitable for mass production.

6” 3-jaw hydraulic chuck

  • 8 station hydraulic turret
  • Foot chuck switch
  • Working light
  • Coolant system
  • Part catcher
  • Chip conveyor + bucket
  • Tools & tool box
  • Lubrication unit
  • Alarm light

Chain type chip conveyor (not shown in main image)

  • RS232 Interface for Data transfer
  • Tool path graphic display

NB. Tailstock not available for PLG-42

Optional

  • Fedek bar feeder DH-65
  • Type 42 collet chuck
  • Type 42 collets 12 - 42mm (31pcs)

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Poly Gim PLG-42
Max turning diameter 130mm
Max turning length 160mm
Max bar feeding diameter 42mm
Spindle bore 55mm
Spindle speed 100 - 4000rpm
Spindle A2-5
Motor 5.5kw
Tooling 8 station hydraulic turret + Gang type
Controller Fanuc Oi-Mate
Machine size 2440 x 1260 x 1830mm
Weight 1780kg

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
