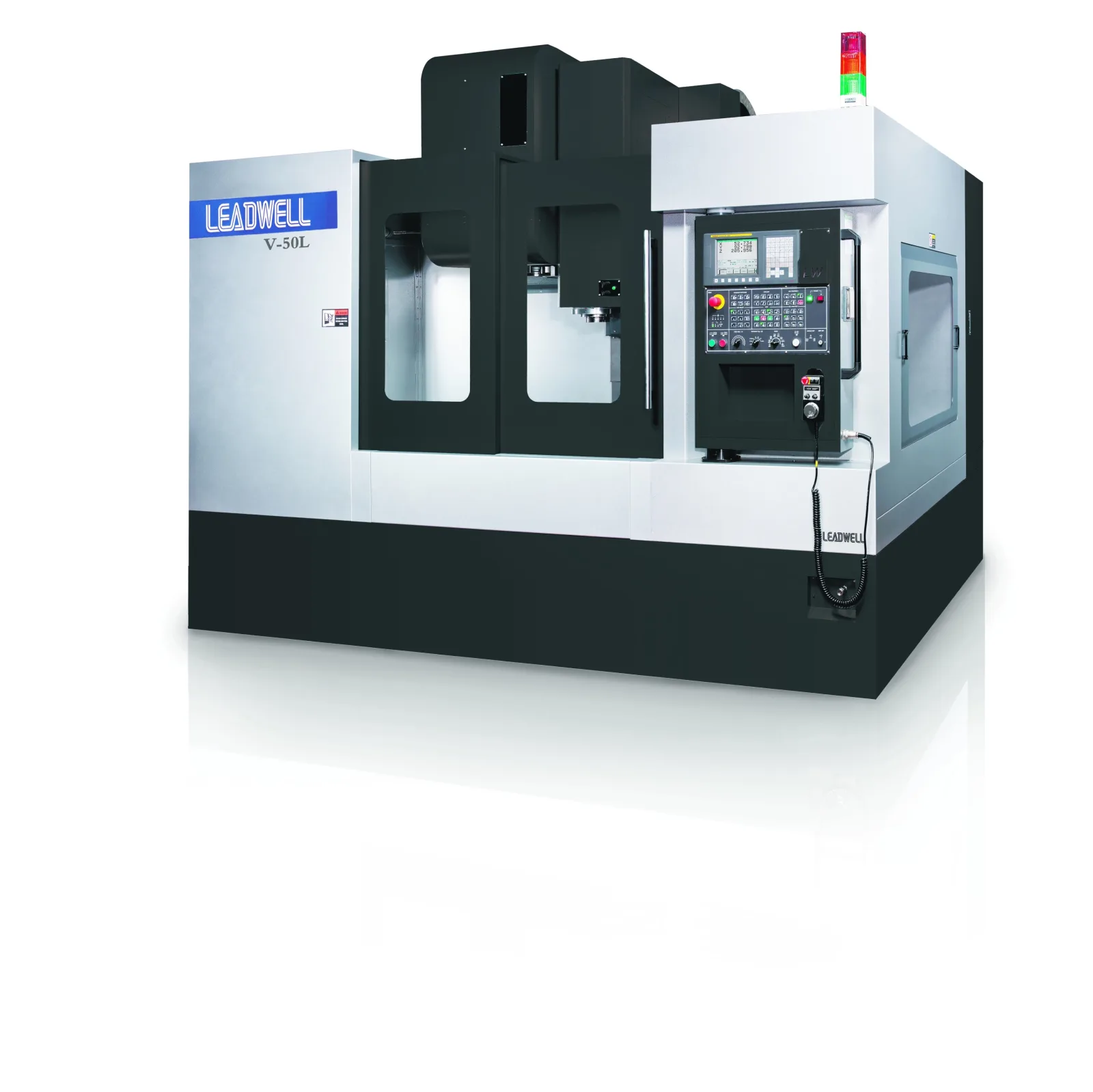

Leadwell V-50L CNC Vertical Machining Centre

LEADWELL V50L CNC VERTICAL MACHINING CENTRE 828D

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

New generation V-Series with enhanced rigidity and cutting performance. This has been achieved with an increased base weight of 1000kg, FEA computer analysis of design, closed type cast iron construction. Cross roller type, instead of ball type linear guides, Heavy duty ballscrew support with increased pretension and higher rapid traverse rates. Many other new features have been incorporated in this new design.

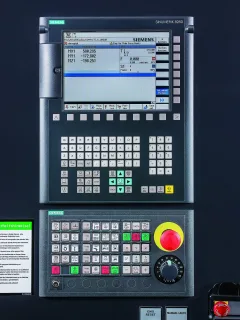

Siemens 828D Control (Fanuc optional)

  • ShopMill conversational programming, ProgramGUIDE and ISO programming
  • 3D Solid graphics simulation
  • Advance Surface technology for highspeed 3D surfaces
  • Ethernet
  • CF Card
  • USB
  • RS-232

ATC 24 Tools (arm type)

  • Spindle 10,000rpm (ceramic bearings)
  • Spindle Cooler Device
  • Spindle Purge System (w/ valve)
  • Spindle Air Blast
  • Spindle coolant ring (4 jets)
  • Programmable air blow
  • CTS Preparation
  • Base wash coolant system
  • Coolant gun
  • Oil skimmer
  • Twin auger chip converyors plus
  • Chain type chip conveyor and bucket
  • 4th axis Preparation (pre-wire)

Machine video

See Leadwell V-50L in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model V-50L
Travel
Travel on X axis (Table, longitudial) mm 1270
Travel on Y axis (Table, cross) mm 635
Travel on Z avis (Spindle, vertical) mm 610
Table
Table top to spindle nose mm 100 - 710
Working Area mm 1420 x 610
Spindle
Spindle Taper BT40
Spindle speed rpm 10,000
Feedrates
Rapid traverse speed, X,Y/Z m/min 36
Cutting feedrate m/min 10
Automatic Tool Changer (ATC)
Number of tools 24
ATC Type Arm type
Motors
Spindle motor kW (HP) 18.5 (25)
Machine size
Floor space (LxWxH) mm 2200 x 3840 x 2721
Weight kg 7000
