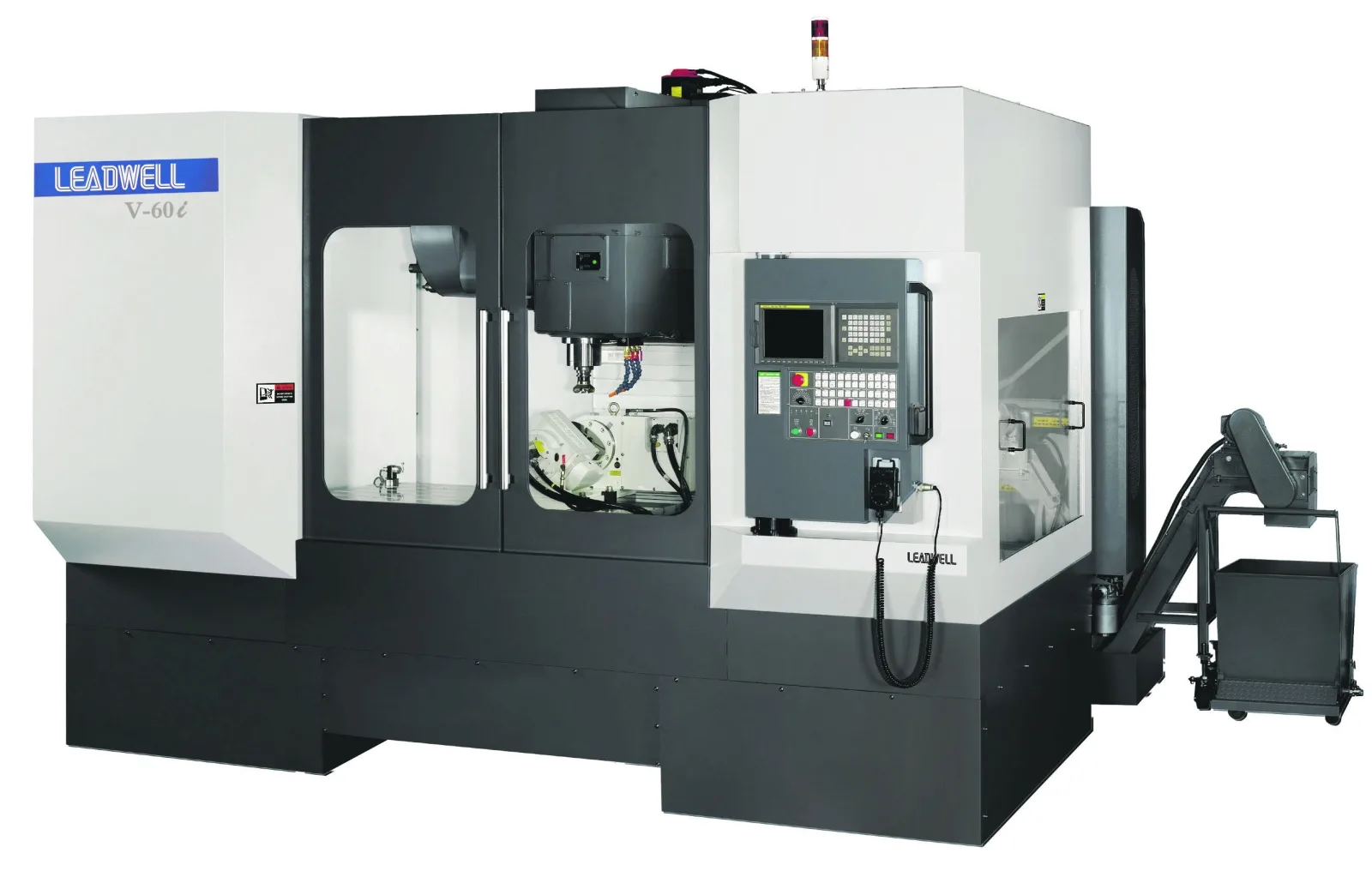

Leadwell V60 CNC Vertical Machining Centre

Name: Leadwell V60 CNC Vertical Machining Centre
Brand: Leadwell
SKU: CNC-0-1061

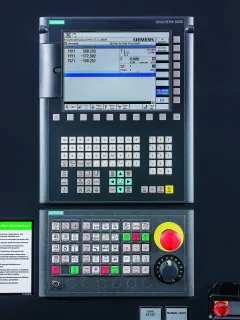

LEADWELL V60 CNC VMC C/W SIEMENS 802D SL

POA Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

Quality Taiwanese Manufacturing

Standard Accessories:

8000rpm spindle
Rigid tapping
Inside screw type chip conveyor
Umbrella type chip conveyor
RS 232 interface
Fanuc 21MB

Options:

Coolant through spindle preparation
High pressure filter system
Arm type ATC
10000 rpm spindle
15000 rpm spindle
20000 rpm spindle
45000 rpm attachment
Chain type chip conveyor
2 speed geared head
Automatic tool length measurement
Automatic tool breakage detection
4th axis package
Other controls available

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.

Specifications for Leadwell V60
Model		V-60
Travel
Travel on X axis (Table, longitudial)	mm	1520
Travel on Y axis (Table, cross)	mm	760
Travel on Z avis (Spindle, vertical)	mm	610+110
Table
Table top to spindle nose	mm	120-730
Working Area	mm	1680x750
Spindle
Spindle Taper		BT40
Spindle speed r.p.m.		80-8000
Feedrates
Rapid traverse speed, X,Y/Z	mm/min	18000/1500
Automatic Tool Changer
Number of tool pots / Arm type ATC(OPT.)		24/214(32)
Motors
Spindle motor 30min./continuous	HP	20/14.7
Miscellaneous
Total machine wieght	kg	9000
