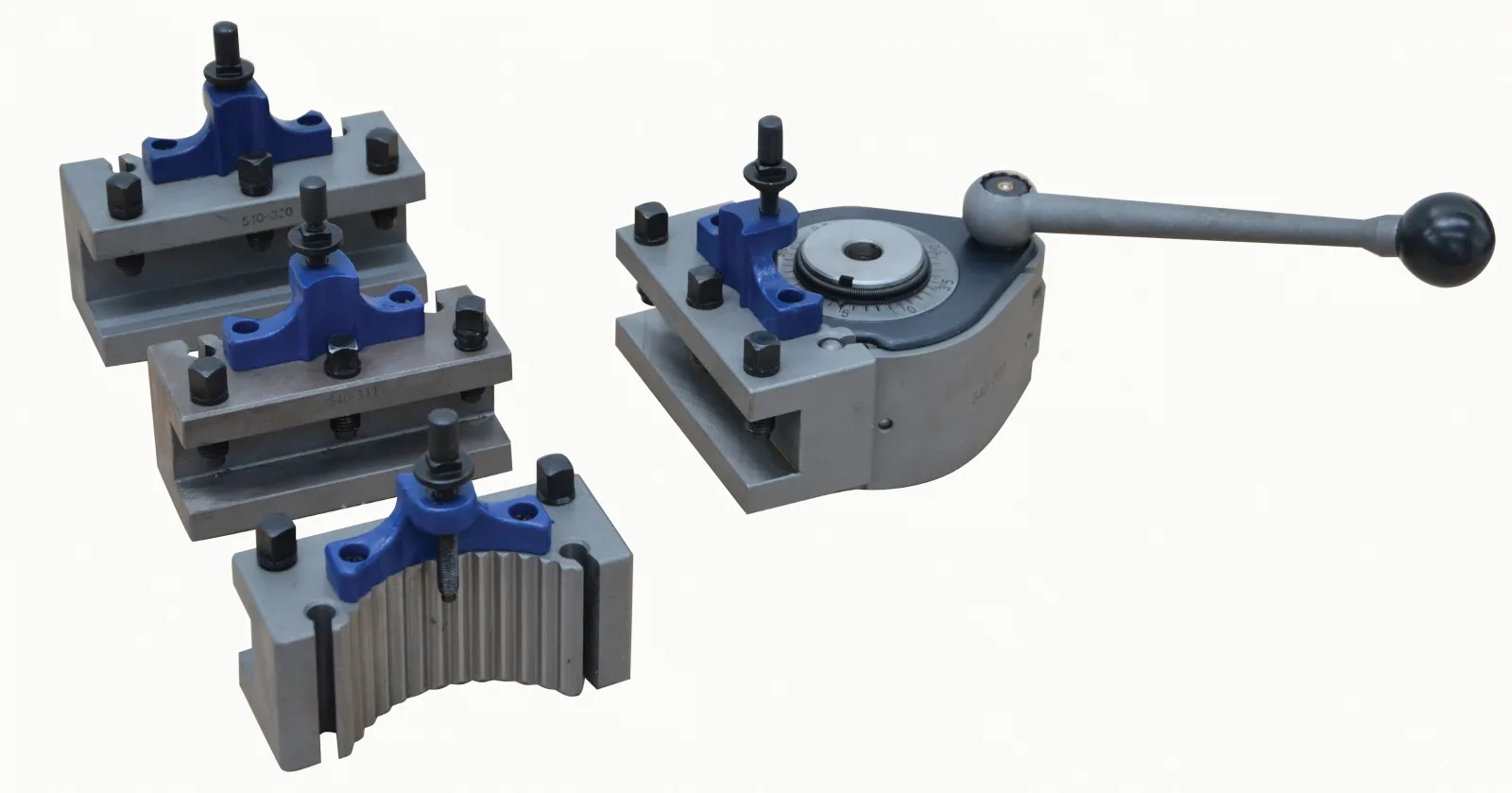

HAIDAO 40 Position Quick Change Tool Posts European Style

Name: HAIDAO 40 Position Quick Change Tool Posts European Style
Brand: HAIDAO
SKU: WEB-RAPID QCT EURO

Complete with 4 toolholders

POA Configured to suit your application. Talk to us for a price.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Spare standard holders Tool holder length

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

The best designed Quick Change Toolpost system in the industry for its accuracy, rigidity & productivity.

Adjust the tool to 40 different marked positions Heat treated & precision ground for very accurate repeatability High productivity with the change of a toolholder in seconds Easy height adjustment

European style toolpost copy which is very popular in Germany

Each set comes complete with 4 holders:

3 pces Standard holders
1 pce Vee bottom holder
Additional holders available

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.

Specifications for HAIDAO 40 Position Quick Change Tool Posts
Model	Swing of Lathe	Max size of tool	Weight	Price Excl GST
A0	120-220mm	12mm		$495.00
A1	150-300mm	16mm		$595.00
E5	200-400mm	20mm	7.5 kg	$860.00
B2	300-500mm	25mm	12.5 kg	$895.00
C3	400-700mm	32mm	24 kg	$1,399.00
D1	600-1000mm	40mm	50 kg	POA
Spare standard holders	Tool holder length
A0	50mm			POA
A1	75-90mm			$98.00
E5	100mm	20mm		$185.00
B2	120mm	25mm		$195.00
C3	150mm	32mm		$315.00
D1	180mm			$440.00
