Algra Rapidue Italian Quick Change Tool Posts
1 / 4
Algra Rapidue logo WEB-RAPID QUICK CHANGE

Tooling, Accessories & Consumables · Lathe & milling tooling

Algra Rapidue Italian Quick Change Tool Posts

Complete with 4 toolholders High quality made in Italy

POA Configured to suit your application. Talk to us for a price.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Spare Standard Holders Toolholder length
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

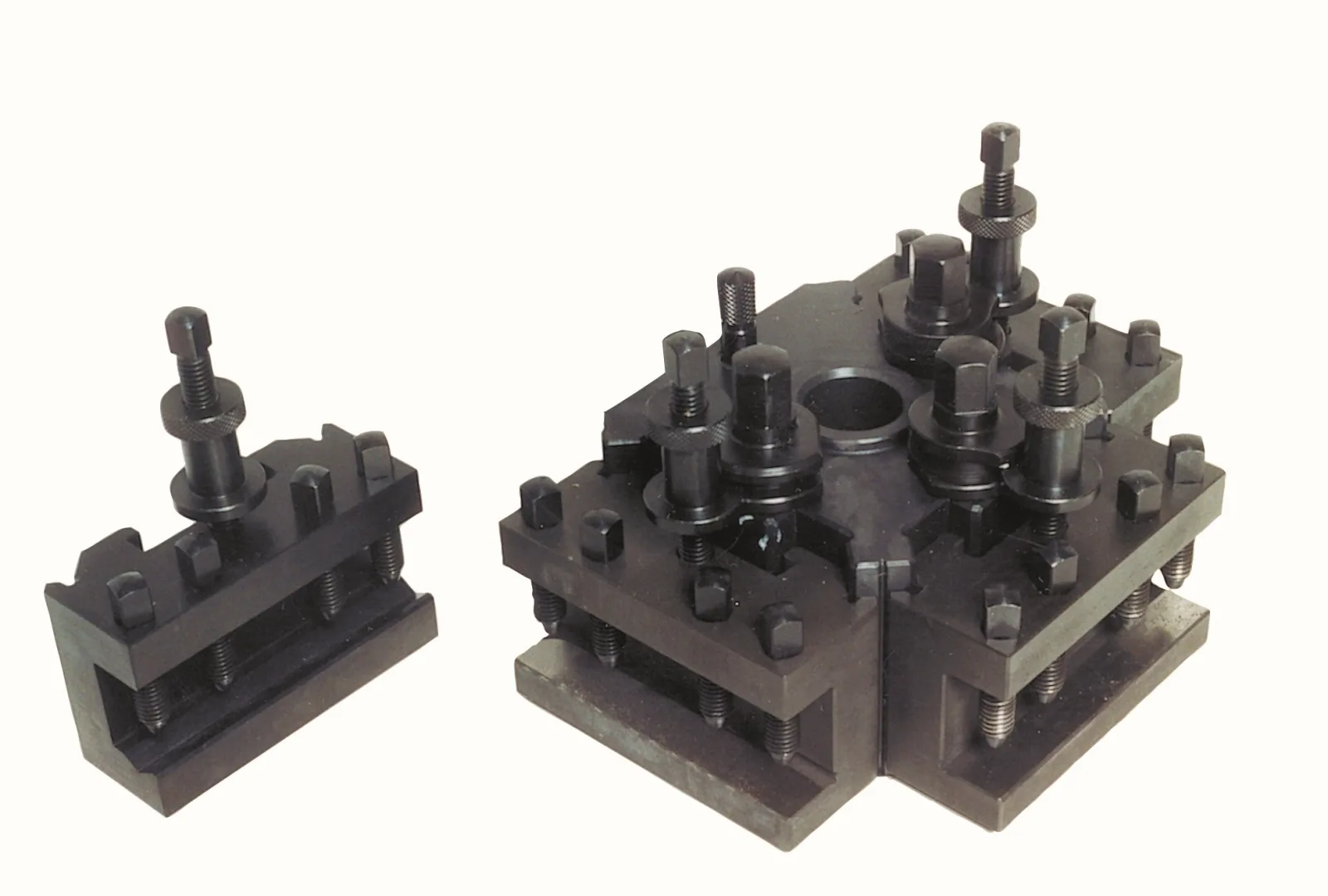

The ALGRA Rapidue Quick Change Toolpost is a premium-quality, three-way toolpost system, proudly made in Italy. Precision ground for outstanding accuracy and repeatability, it provides fast, reliable tool changes while maintaining excellent rigidity for superior machining performance.

Features:

  • Genuine ALGRA Rapidue quick change toolpost
  • Manufactured in Italy
  • Precision ground for accuracy and repeatability
  • High-quality construction for long service life
  • Three-way toolpost design for quick and efficient tool changes
  • Rigid clamping for improved machining performance
  • Suitable for professional workshop and industrial applications

Complete set supplied with:

  • 1 x Three-way toolpost
  • 3 x Standard tool holders
  • 1 x Vee-bottom tool holder

Additional holders & options available: See picture 2

See toolholder sizing on picture 3

Optional:

  • Morse taper holder

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model Centre height max Tool dia max Base to Centre Price Excl GST Scott models
M 120mm 16mm 24-34mm $770.00 Myford size
AR/AP 140mm 16mm 25-41mm $POA 6128
A 170mm 20mm 32-42mm $998.00 6233 / 6236 / Z330 ERL1340
BR/BP 200mm 25mm 38-53mm $1,190.00 1640, 1550
B 230mm 32mm 47-65mm $1,360.00 1860 / 2060 / 6250
C 280mm 32mm 51-72mm $1,699.00 6266 Z560 Z660 TY2060
D 350mm 40mm 61-95mm $POA 6280
Spare Standard Holders Toolholder length
502-M 68mm $100.00
502-AR/AP 79mm $POA
502-A 96mm $160.00
502-BR/BP 108mm $199.00
502-B 116mm $199.00
502-C 137mm $265.00
502-D 160mm $595.00

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
