HAIDAO 40 Position Quick Change Tool Posts European Style
POA
WEB-RAPID QCT EURO | Prices exclude GST
Product overview
About this machine.
The best designed Quick Change Toolpost system in the industry for its accuracy, rigidity & productivity.
Adjust the tool to 40 different marked positions Heat treated & precision ground for very accurate repeatability High productivity with the change of a toolholder in seconds Easy height adjustment
European style toolpost copy which is very popular in Germany

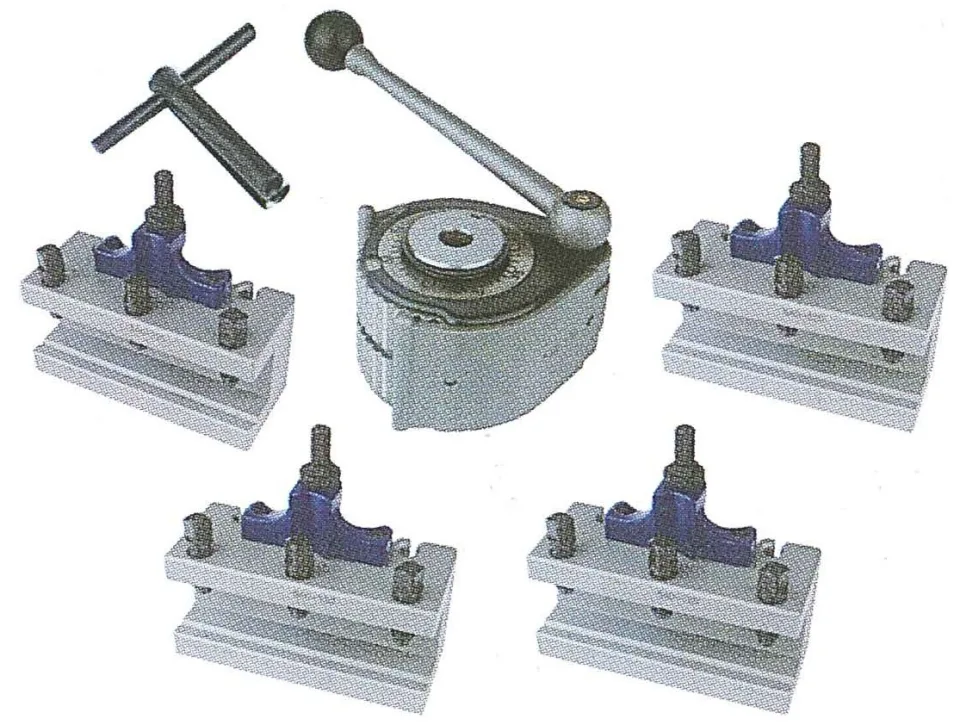

Each set comes complete with 4 holders:
- 3 pces Standard holders
- 1 pce Vee bottom holder
- Additional holders available
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | Swing of Lathe | Max size of tool | Weight | Price Excl GST | |
|---|---|---|---|---|---|
| A0 | 120-220mm | 12mm | $495.00 | ||
| A1 | 150-300mm | 16mm | $595.00 | ||
| E5 | 200-400mm | 20mm | 7.5 kg | $860.00 | |
| B2 | 300-500mm | 25mm | 12.5 kg | $895.00 | |
| C3 | 400-700mm | 32mm | 24 kg | $1,399.00 | |
| D1 | 600-1000mm | 40mm | 50 kg | POA | |
| Spare standard holders | Tool holder length | ||||
| A0 | 50mm | POA | |||
| A1 | 75-90mm | $98.00 | |||
| E5 | 100mm | 20mm | $185.00 | ||
| B2 | 120mm | 25mm | $195.00 | ||
| C3 | 150mm | 32mm | $315.00 | ||
| D1 | 180mm | $440.00 |
