Cosen SH-710LDM Semi Automatic Structural Steel Bandsaw

Name: Cosen SH-710LDM Semi Automatic Structural Steel Bandsaw – Double Mitre, Double Column
Brand: Cosen
SKU: SAWB-0-6703

Large double mitre bandsaw

POA Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Blade speed range 25 - 100 m/min

Blade size 6520-6540 x 41 x 1.3mm

Bundle height 420mm

Bundle width 710mm

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

Established in 1976, Cosen Saws has become a global leader in industrial band saw manufacturing, offering over 140 models in horizontal, vertical, and miter-cutting configurations. Their machines are available in manual, semi-automatic, and fully automatic forms, catering to a wide range of cutting needs. With cutting capacities ranging from 200 mm to 2200 mm, Cosen's band saws are designed to handle materials such as steel, titanium, chromium, and silicon, serving industries including construction, automotive, aerospace, and wind power generation. Notably, Cosen was recognized as the No. 1 Sawing Equipment Brand by U.S. Metal Center News in 2015, 2022, 2023, and 2024.

The Cosen SH-710LDM CE bandsaw with its rigid construction and superior features, is a heavy duty, semi automatic, double mitre band saw that offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment. With SH-710LDM, you can mitre-cut either forward or backward up to 60deg. The 10 degree blade cant is designed specifically for cutting structural steel such as H-beam, I-beam, channels and profiles at the maximized cutting conditions.

Features:

Quality Taiwanese manufacturing
Double column, linear-guide design for superior rigidity and reduced thermal distortion
Canted 10 degree saw head, ideal for cutting structural steel and prolonging blade life
Automatic, precision ground, chrome-plated hydraulic swivel head positioning with digital angle readout (+/-0.1 degrees)
Heavy duty cast iron frame and wide base construction for maximum stability
Hydraulically controlled semi-automatic saw frame return
Automatic hydraulic blade tensioning system ensures consistent accuracy and releases tension when machine is powered off
Two additional upper blade guide bearings for enhanced stability during cutting
Full-stroke hydraulic cast iron vise with split jaws to reduce burr formation
LED blade speed readout on operator interface
Precision feed pressure and feed rate controlled via dual-valve hydraulic system
Tethered operator control station for convenient, flexible operation
10" HMI touchscreen with PLC control, "last cut" memory, and "keep on" cycle selector for repeat cuts
Inverter driven 7.5 hp blade motor with planetary gearbox and variable blade speed control (15-120 m/min standard)
Independent control cabinet for electronics and power management

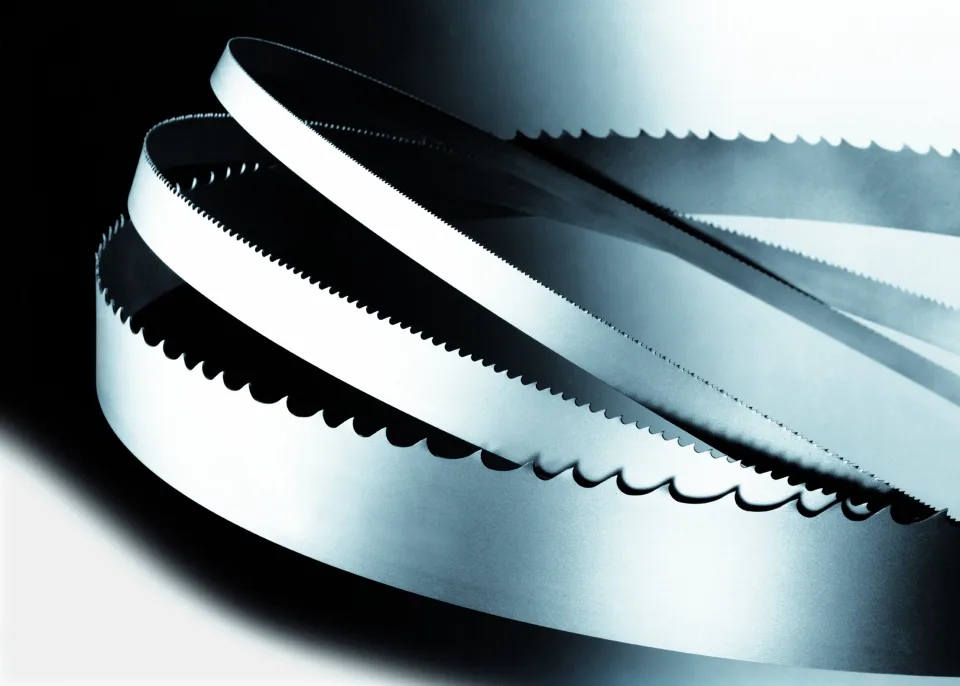

Strong 41mm bi-metal blade
Power driven blade cleaning brush
Adjustable flood coolant system with extended nozzles for improved blade and material cooling
Coolant system includes integrated washdown gun for easy cleaning and maintenance

Other optional accessories:

Blade vibration dampening device improves cutting performance by up to 20%
2m Heavy duty roller tables
3m Powered roller table, two speed (Available on indent machines only)
3m Powered roller table with inverter (Following on indent machines only ,if available)
Laser cutting line
Automatic wedging resistance
Mist lubrication cutting system (indent only, must be factory fitted)
Blade deviation

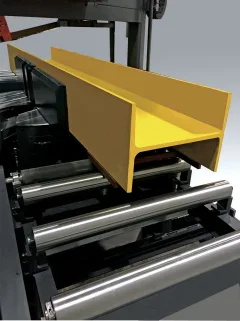

Hydraulic infeed lift roller and idle roller table for safer, easier material handling
Safety features:
Latching emergency stop
Electrical and hydraulic safety interlocks throughout the machine
High visibility paint and shielded conduits for enhanced operator safety
Safety interlock switch on blade guard
Automatic blade breakage detection
Hydraulic gauge to ensure blade is not over tensioned
Safety guarding

Included accessories by Scott Machinery:

Variable vice pressure regulator
Hydraulic vertical clamping vice
Hydraulic chip conveyor
CE conformity

Machine video

See Cosen SH-710LDM in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.

Specifications for Cosen SH-710LDM
Cosen	SH-710LDM
Capacity	Straight	+/- 45deg	+/- 60deg
Round	470mm	420mm	330mm
Rectangular (WxH)	710 x 420mm	450 x 420mm	300 x 420mm
Blade speed range	25 - 100 m/min
Blade size	6520-6540 x 41 x 1.3mm
Bundle height	420mm
Bundle width	710mm
Remnant	25-30mm
Coolant pump	0.1kW (1/8HP) (33L)
Hydraulic pump	0.75kW (1hp) (35.2L)
Work bed height	750mm
Nett machine weight	2,755 kg
Floor space (LxWxH)	3250 x 3200 x 2300mm
Shipping cubic m / kg	15.63m / 2,990 kg
