Cosen SH-710LDM Semi Automatic Structural Steel Bandsaw
Double Mitre, Double Column
Product overview
About this machine.
Established in 1976, Cosen Saws has become a global leader in industrial band saw manufacturing, offering over 140 models in horizontal, vertical, and miter-cutting configurations. Their machines are available in manual, semi-automatic, and fully automatic forms, catering to a wide range of cutting needs. With cutting capacities ranging from 200 mm to 2200 mm, Cosen's band saws are designed to handle materials such as steel, titanium, chromium, and silicon, serving industries including construction, automotive, aerospace, and wind power generation. Notably, Cosen was recognized as the No. 1 Sawing Equipment Brand by U.S. Metal Center News in 2015, 2022, 2023, and 2024.

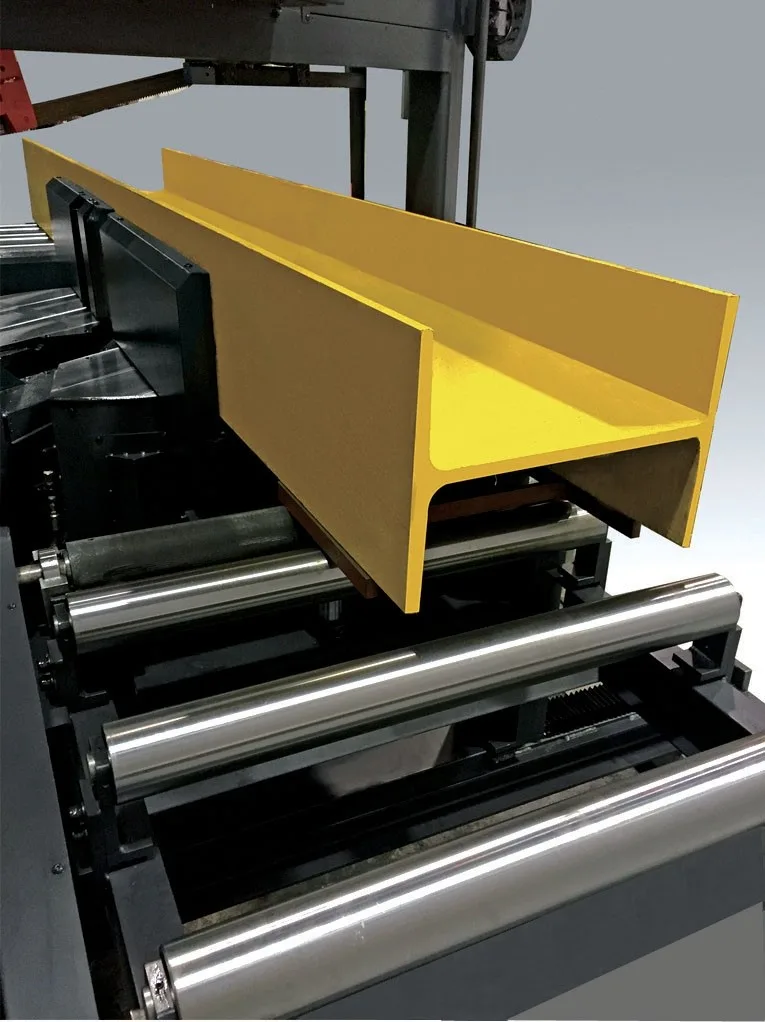

The Cosen SH-710LDM CE bandsaw with its rigid construction and superior features, is a heavy duty, semi automatic, double mitre band saw that offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment. With SH-710LDM, you can mitre-cut either forward or backward up to 60deg. The 10 degree blade cant is designed specifically for cutting structural steel such as H-beam, I-beam, channels and profiles at the maximized cutting conditions.
Features:
- Quality Taiwanese manufacturing
- Double column, linear-guide design for superior rigidity and reduced thermal distortion
- Canted 10 degree saw head, ideal for cutting structural steel and prolonging blade life
- Automatic, precision ground, chrome-plated hydraulic swivel head positioning with digital angle readout (+/-0.1 degrees)
- Heavy duty cast iron frame and wide base construction for maximum stability
- Hydraulically controlled semi-automatic saw frame return
- Automatic hydraulic blade tensioning system ensures consistent accuracy and releases tension when machine is powered off
- Two additional upper blade guide bearings for enhanced stability during cutting
- Full-stroke hydraulic cast iron vise with split jaws to reduce burr formation
- LED blade speed readout on operator interface
- Precision feed pressure and feed rate controlled via dual-valve hydraulic system
- Tethered operator control station for convenient, flexible operation
- 10" HMI touchscreen with PLC control, "last cut" memory, and "keep on" cycle selector for repeat cuts
- Inverter driven 7.5 hp blade motor with planetary gearbox and variable blade speed control (15-120 m/min standard)
- Independent control cabinet for electronics and power management
- Strong 41mm bi-metal blade
- Power driven blade cleaning brush
- Adjustable flood coolant system with extended nozzles for improved blade and material cooling
- Coolant system includes integrated washdown gun for easy cleaning and maintenance
Other optional accessories:
- Blade vibration dampening device improves cutting performance by up to 20%
- 2m Heavy duty roller tables
- 3m Powered roller table, two speed (Available on indent machines only)
- 3m Powered roller table with inverter (Following on indent machines only ,if available)
- Laser cutting line
- Automatic wedging resistance
- Mist lubrication cutting system (indent only, must be factory fitted)
- Blade deviation

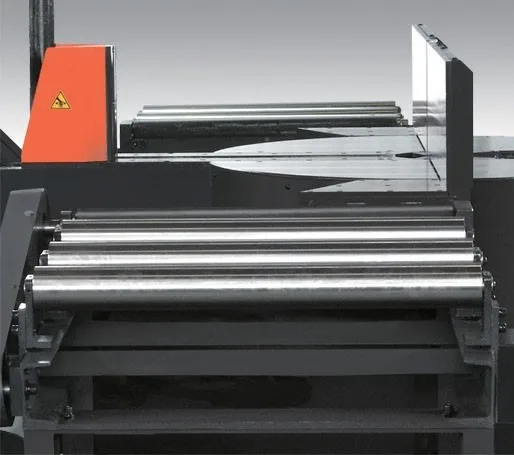

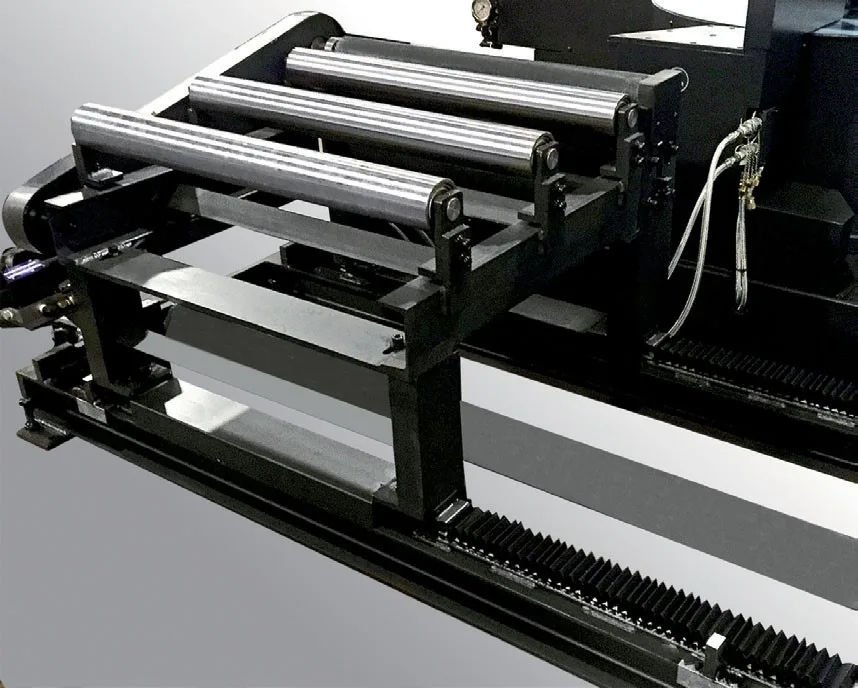

- Hydraulic infeed lift roller and idle roller table for safer, easier material handling
- Safety features:
- Latching emergency stop
- Electrical and hydraulic safety interlocks throughout the machine
- High visibility paint and shielded conduits for enhanced operator safety
- Safety interlock switch on blade guard
- Automatic blade breakage detection
- Hydraulic gauge to ensure blade is not over tensioned
- Safety guarding
Included accessories by Scott Machinery:
- Variable vice pressure regulator
- Hydraulic vertical clamping vice
- Hydraulic chip conveyor
- CE conformity
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Cosen | SH-710LDM | ||
|---|---|---|---|
| Capacity | Straight | +/- 45deg | +/- 60deg |
| Round | 470mm | 420mm | 330mm |
| Rectangular (WxH) | 710 x 420mm | 450 x 420mm | 300 x 420mm |
| Blade speed range | 25 - 100 m/min | ||
| Blade size | 6520-6540 x 41 x 1.3mm | ||
| Bundle height | 420mm | ||
| Bundle width | 710mm | ||
| Remnant | 25-30mm | ||
| Coolant pump | 0.1kW (1/8HP) (33L) | ||
| Hydraulic pump | 0.75kW (1hp) (35.2L) | ||
| Work bed height | 750mm | ||
| Nett machine weight | 2,755 kg | ||
| Floor space (LxWxH) | 3250 x 3200 x 2300mm | ||
| Shipping cubic m / kg | 15.63m / 2,990 kg |
