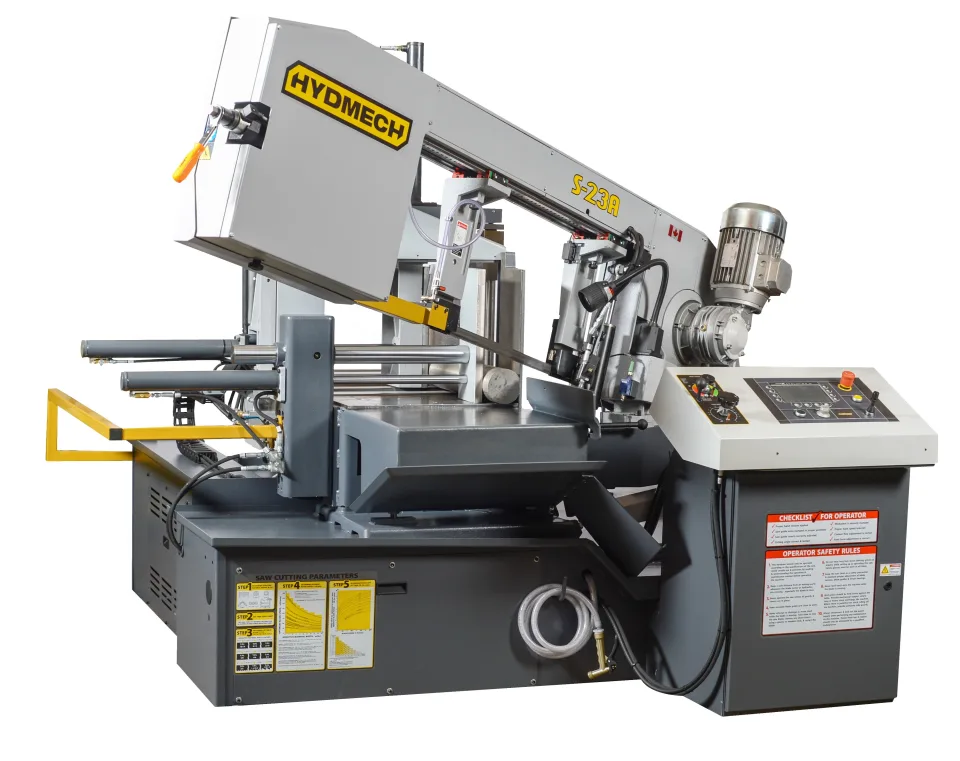

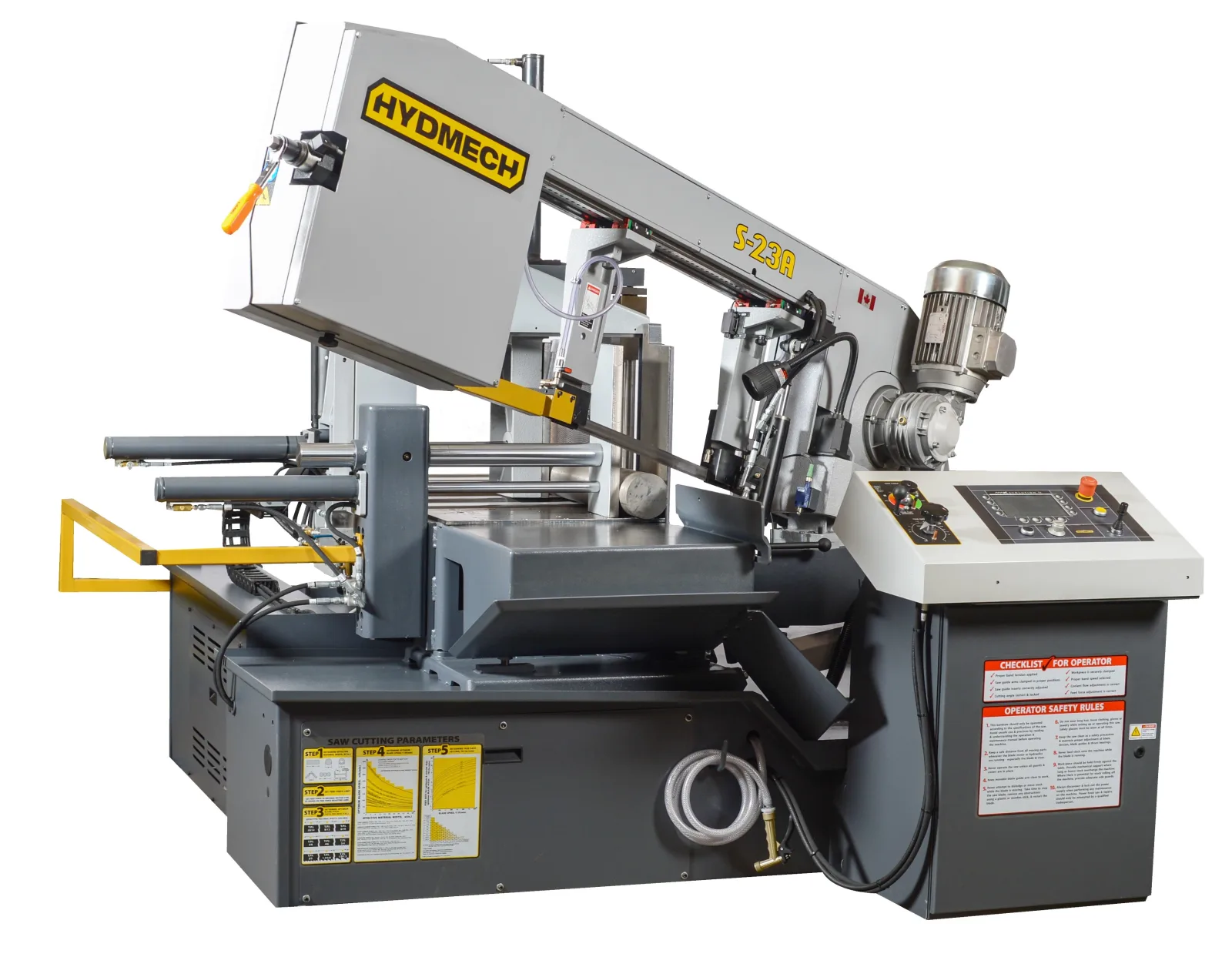

Hydmech S-23A Automatic Pivot Style Band Saw

Fully automatic NC feed band saw Horizontal mitre cutting to 30 degrees 405 mm x 505 mm capacity

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Blade size 5130 x 34 x 1mm
Blade speed range 22-106 m/min
Main motor power 8.8hp
Machine weight 1909kg
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

The S-23A is an automatic scissor style band saw providing exceptional miter cutting capability for medium duty applications.

Featuring an automatic mode control with an LED readout for blade tension, blade speed, blade height position, run time of the cut, blade drive motor amperage draw, part length, quantity required, piece count, job run time, total blade run time. All offered in several language choices.

The S-23A miters from 90° to 60°. Featuring a 405mm H x 505mm W capacity at 90°, 8.8 HP motor, and 34mm blade, the S-23A automatic scissor style band saw is built solidly to give you maximum productivity.

Standard features:

  • Easy swing, heavy duty cast iron saw head
  • Cast iron shuttle features automatic multi-indexing up to 28.5” in a single stroke. Powered by ball screw and stepper motor.
  • 8 HP VFD. True direct blade drive – no belts/pulleys
  • On-demand hydraulics save energy
  • Blade chamber separates material from cut part
  • Cast iron band wheels
  • Automatic PLC, touch screen control programmable up to 100 jobs with 20 in queue
  • Replaceable blade brush
  • Robust steel base
  • Easy to read angle scale with angle locking mechanism
  • Cast iron guide arms mounted on linear rails is adjustable for proper spacing.
  • Easy access electrical panel
  • Out of stock switch
  • Mechanical band tensioning with digital readout
  • Hydraulic positive down feed
  • Replaceable carbide guide inserts
  • Safety door interlocks
  • Flood coolant with wash down hose
  • Laser light
  • Work light

Included options:

  • Mist coolant
  • Overhead bundling
  • Variable vice pressure

Machine video

See Hydmech S-23A in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Hydmech S-23A
Capacity Straight 45deg 30deg
Round 405mm 355mm 205mm
Rectangular (H x W) 405 x 505mm 405 x 355mm 405 x 205mm
Blade size 5130 x 34 x 1mm
Blade speed range 22-106 m/min
Main motor power 8.8hp
Machine weight 1909kg
Floor space 2272 x 2213 x 1549mm
Table height 840mm
