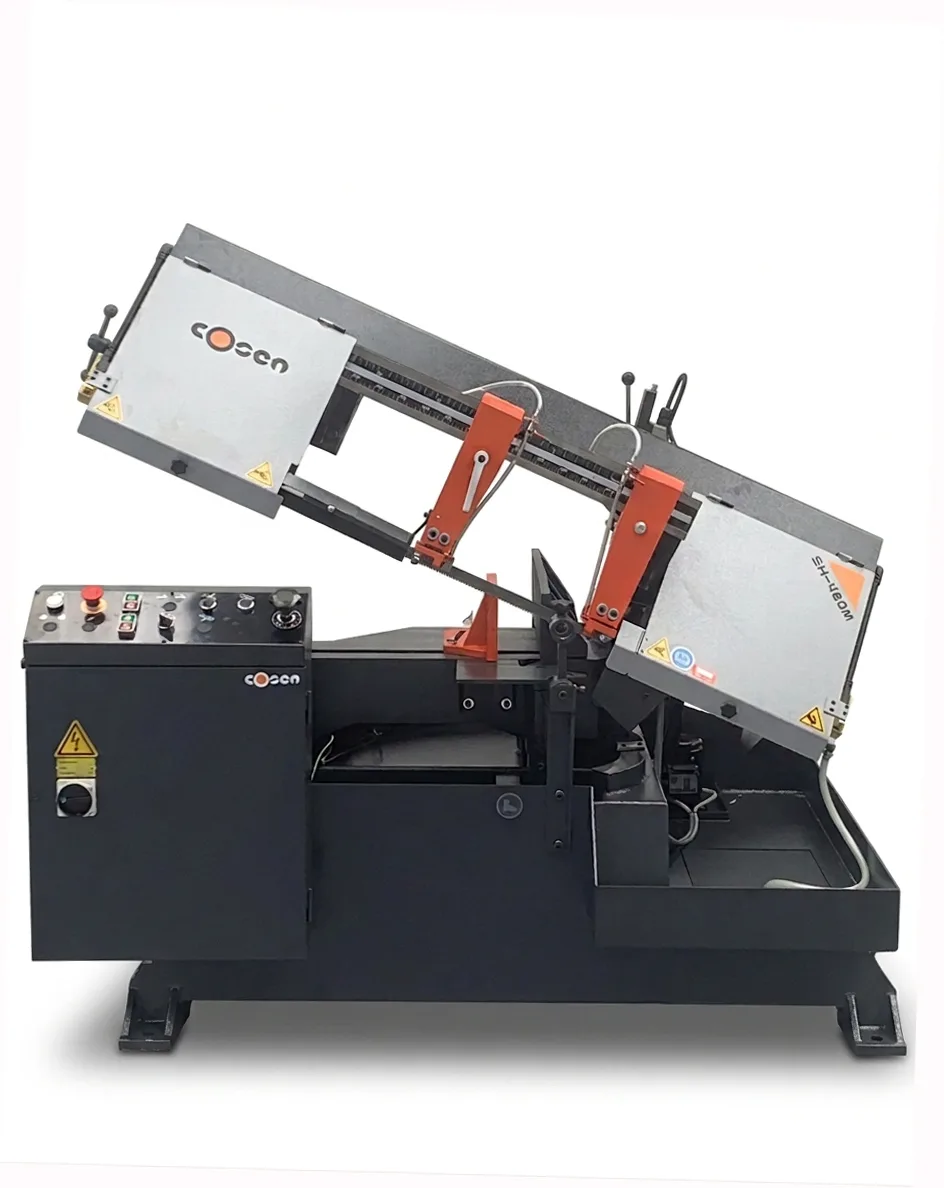

Cosen SH-460M Semi Automatic Mitre Cutting Bandsaw

Name: Cosen SH-460M Semi Automatic Mitre Cutting Bandsaw
Brand: Cosen
SKU: SAWB-0-1046

Horizontal mitre cutting to 60 degrees 250mm Round 460mm Rectangular

$9,990.00 Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Nett machine weight 590 kg

Floor space (L x W x H) 1400 x 1900 x 1700mm

Shipping 2.9m3 690 kg

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

Established in 1976, Cosen Saws has become a global leader in industrial band saw manufacturing, offering over 140 models in horizontal, vertical, and miter-cutting configurations. Their machines are available in manual, semi-automatic, and fully automatic forms, catering to a wide range of cutting needs. With cutting capacities ranging from 200 mm to 2200 mm, Cosen's band saws are designed to handle materials such as steel, titanium, chromium, and silicon, serving industries including construction, automotive, aerospace, and wind power generation. Notably, Cosen was recognized as the No. 1 Sawing Equipment Brand by U.S. Metal Center News in 2015, 2022, 2023, and 2024. With a reputation for great value for money, they have spent more than 27 years maximizing efficiency and quality in every step of design, engineering and manufacturing to assure customers of long-lasting performance. In addition to utilizing internationally recognised components such as Siemens of German, Telemecanique of France and NOK seals of Japan. Cosen have also earned ISO-9001 standards as well as CE designation and EMC to assure customers around the globe of absolute quality and reliability.

The Cosen SH-460M is a semi-automatic, high quality, no frills, genuine mitre saw. Along with its rigid construction and superior features, the SH460M is a heavy duty band saw that offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment

Features:

Quality Taiwanese Manufacturing
Heavy duty bow & wide base construction
Carbide blade guides with rollers
Bow swivel for mitre cutting around HD pivot & locking system
Hydraulic cylinder with semi-automatic bow lift
Specially designed base for mitre cutting from 90 - 45 degrees
Manual cast iron vice
Rigid guide arms mounted on extra wide precision ground dovetail slide
Two additional bearings to support blade from the top along with replaceable carbide blade guides
Convenient operator control station
Easy blade change with front access
4 step pulley for blade speed
Table height 645mm

Standard accessories:

Two point coolant system to blade
Blade cleaning brush wheel
Down feed rate & cutting pressure control via hydraulic down feed valve
27mm bi-metal blade
Adjustable length stop
Safety features:
Latching emergency stop
Safety interlock switch on blade guard
CE Conformity
Optional:
Infinite variable blade speed unit (Indent machines only)

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.

Specifications for Cosen SH-460M
Cosen	SH-460M
Capacity		90deg	45deg	60deg
	Round section	250mm	230mm	110mm
	Square section	250mm	230mm	110mm
	Rectangular section (WxH)	460 x 230mm	230 x 230mm	110 x 230mm
		400 x 250mm
Saw blade	Speeds m/minute	24, 38, 53, 81
	Blade Size	3505 x 27 x 0.9mm
Motors	Blade motor	2 hp (1.5 kW) 415v/3ph
	Hydraulic motor	1/4 hp
	Coolant pump	1/8 hp
Nett machine weight	590 kg
Floor space (L x W x H)	1400 x 1900 x 1700mm
Shipping	2.9m3 690 kg
