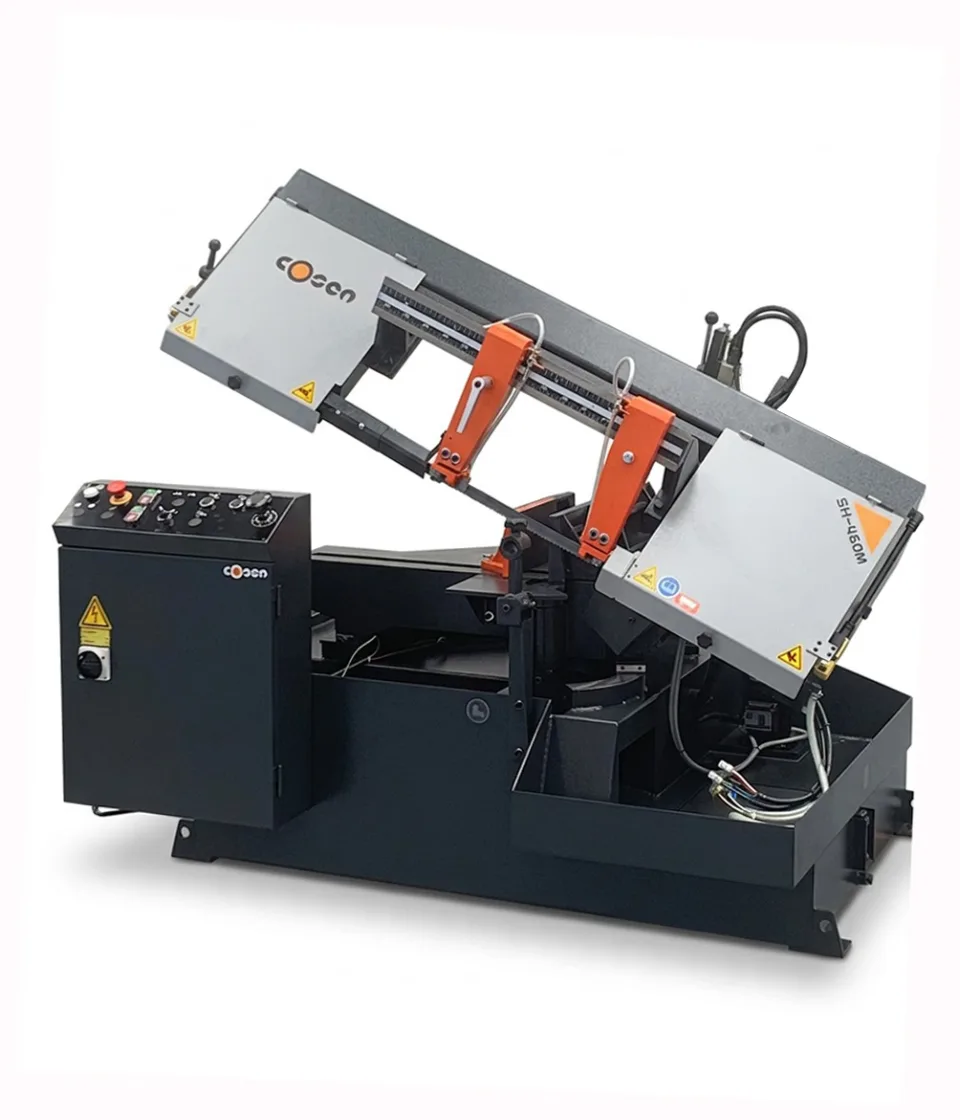

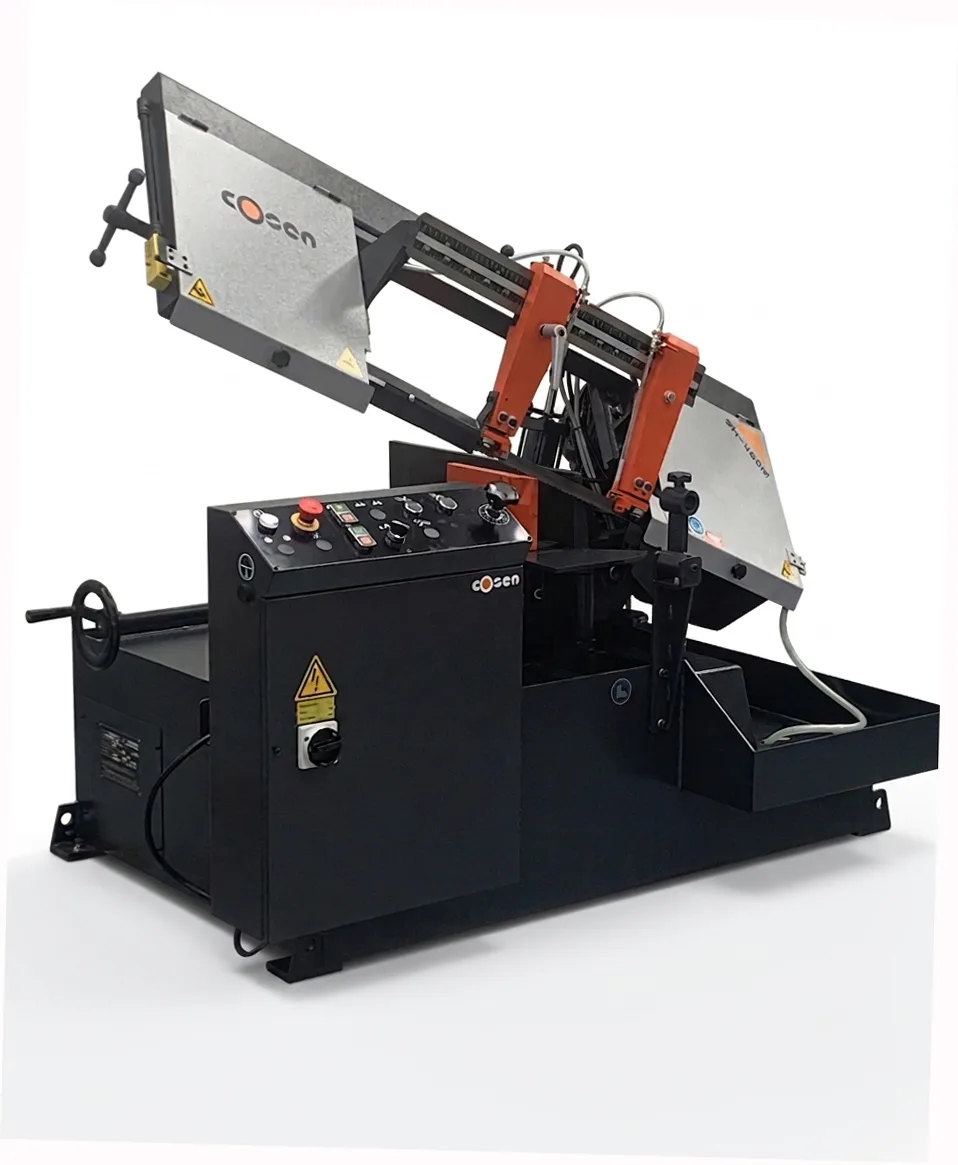

Cosen SH-460M Semi Automatic Mitre Cutting Bandsaw
Product overview
About this machine.
Established in 1976, Cosen Saws has become a global leader in industrial band saw manufacturing, offering over 140 models in horizontal, vertical, and miter-cutting configurations. Their machines are available in manual, semi-automatic, and fully automatic forms, catering to a wide range of cutting needs. With cutting capacities ranging from 200 mm to 2200 mm, Cosen's band saws are designed to handle materials such as steel, titanium, chromium, and silicon, serving industries including construction, automotive, aerospace, and wind power generation. Notably, Cosen was recognized as the No. 1 Sawing Equipment Brand by U.S. Metal Center News in 2015, 2022, 2023, and 2024. With a reputation for great value for money, they have spent more than 27 years maximizing efficiency and quality in every step of design, engineering and manufacturing to assure customers of long-lasting performance. In addition to utilizing internationally recognised components such as Siemens of German, Telemecanique of France and NOK seals of Japan. Cosen have also earned ISO-9001 standards as well as CE designation and EMC to assure customers around the globe of absolute quality and reliability.
The Cosen SH-460M is a semi-automatic, high quality, no frills, genuine mitre saw. Along with its rigid construction and superior features, the SH460M is a heavy duty band saw that offers precision, efficiency in operation, lower cost per cut, and durability in a demanding production environment
Features:
- Quality Taiwanese Manufacturing
- Heavy duty bow & wide base construction
- Carbide blade guides with rollers
- Bow swivel for mitre cutting around HD pivot & locking system
- Hydraulic cylinder with semi-automatic bow lift
- Specially designed base for mitre cutting from 90 - 45 degrees
- Manual cast iron vice

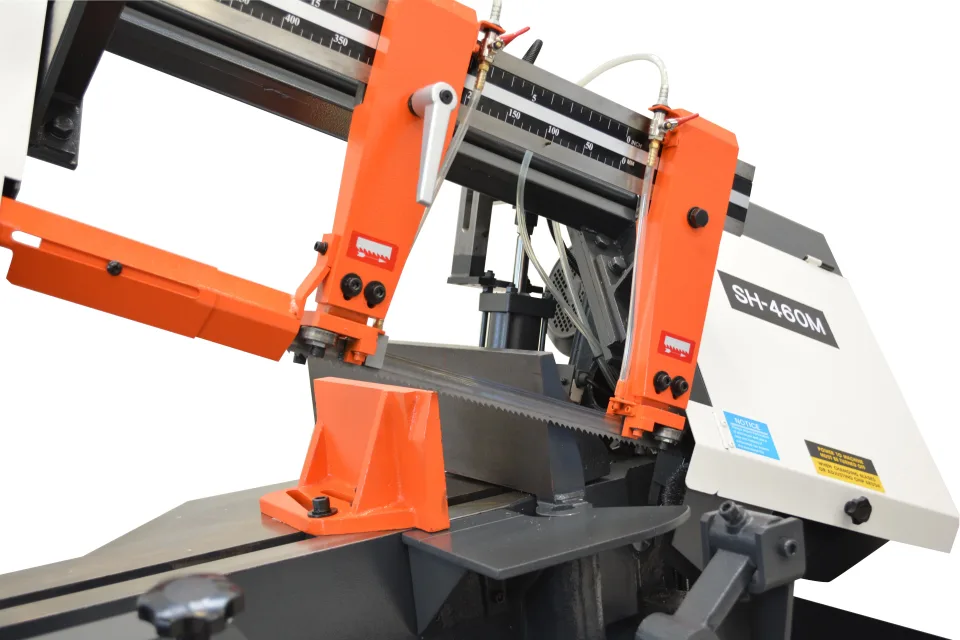

- Rigid guide arms mounted on extra wide precision ground dovetail slide
- Two additional bearings to support blade from the top along with replaceable carbide blade guides

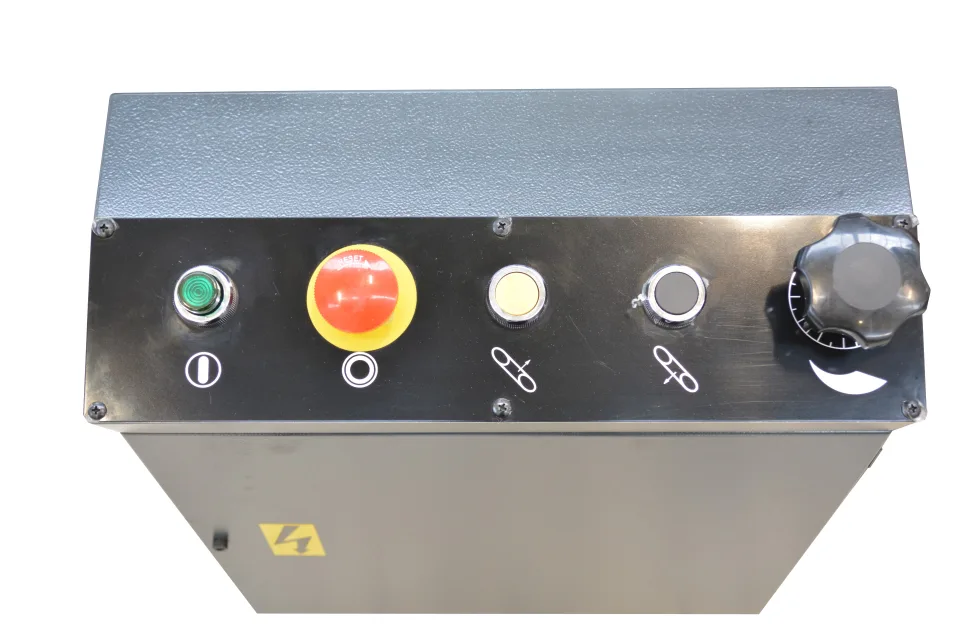

- Convenient operator control station
- Easy blade change with front access
- 4 step pulley for blade speed
- Table height 645mm
Standard accessories:
- Two point coolant system to blade
- Blade cleaning brush wheel
- Down feed rate & cutting pressure control via hydraulic down feed valve
- 27mm bi-metal blade
- Adjustable length stop
- Safety features:
- Latching emergency stop
- Safety interlock switch on blade guard
- CE Conformity
- Optional:
- Infinite variable blade speed unit (Indent machines only)
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Cosen | SH-460M | |||
|---|---|---|---|---|
| Capacity | 90deg | 45deg | 60deg | |
| Round section | 250mm | 230mm | 110mm | |
| Square section | 250mm | 230mm | 110mm | |
| Rectangular section (WxH) | 460 x 230mm | 230 x 230mm | 110 x 230mm | |
| 400 x 250mm | ||||
| Saw blade | Speeds m/minute | 24, 38, 53, 81 | ||
| Blade Size | 3505 x 27 x 0.9mm | |||
| Motors | Blade motor | 2 hp (1.5 kW) 415v/3ph | ||
| Hydraulic motor | 1/4 hp | |||
| Coolant pump | 1/8 hp | |||
| Nett machine weight | 590 kg | |||
| Floor space (L x W x H) | 1400 x 1900 x 1700mm | |||
| Shipping | 2.9m3 690 kg |
