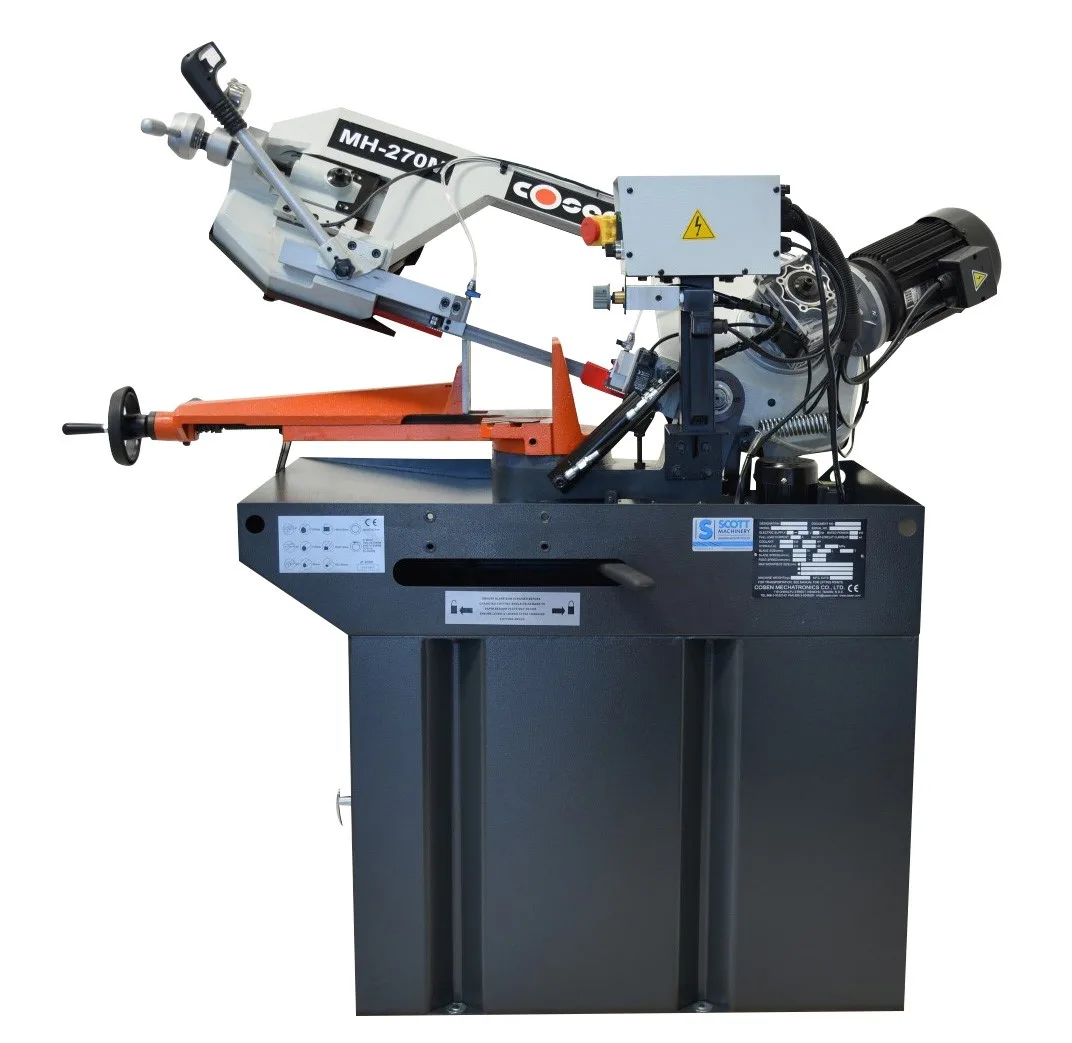

Cosen MH-270M AutoCut Manual Mitre Cutting Bandsaw

Horizontal mitre cutting to 60 degrees 225mm round

$5,290.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Blade speeds 35 or 70 m/min
Blade specification 2450 x 27 x 0.9mm
Working table height 950mm
Motor power 1.1 kW 415V
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Established in 1976, Cosen Saws has become a global leader in industrial band saw manufacturing, offering over 140 models in horizontal, vertical, and miter-cutting configurations. Their machines are available in manual, semi-automatic, and fully automatic forms, catering to a wide range of cutting needs. With cutting capacities ranging from 200 mm to 2200 mm, Cosen's band saws are designed to handle materials such as steel, titanium, chromium, and silicon, serving industries including construction, automotive, aerospace, and wind power generation. Notably, Cosen was recognized as the No. 1 Sawing Equipment Brand by U.S. Metal Center News in 2015, 2022, 2023, and 2024. With a reputation for great value for money, they have spent more than 27 years maximizing efficiency and quality in every step of design, engineering and manufacturing to assure customers of long-lasting performance. In addition to utilizing internationally recognised components such as Siemens of German, Telemecanique of France and NOK seals of Japan. Cosen has also earned ISO-9001 accreditation as well as CE designation and EMC to assure customers around the globe of absolute quality and reliability.

The MH-270M bandsaw is a high quality Taiwanese built single mitre bandsaw, based on refined Italian design principles. This model combines robust construction with user friendly operation, offering smooth and accurate cutting performance for a wide range of materials. Ideal for general fabrication, maintenance workshops, educational facilities, and production environments requiring frequent mitre cutting. It features a manual vice and an adjustable hydraulic down feed, making it well-suited for small to medium-sized machine shops, maintenance facilities, metal fabrication shops, educational settings, and short-run production tasks. It efficiently cuts square, round, and rectangular solids, as well as tubing. Built with a robust frame, this saw delivers consistent accuracy and dependable performance over years of use.

Features:

  • Quality Taiwanese Manufacturing
  • Based on Italian styling
  • Wide base construction
  • Mitre cutting swivel bow to 60 degrees
  • Convenient positional stops at 45, 60 & 90 degrees
  • Lever handle for locking bow position
  • Carbide blade guides with twin roller bearings for blade support
  • Manual cast iron vice with quick lever clamp
  • Two point coolant system to blade
  • Blade cleaning brush wheel
  • Down feed rate & cutting pressure control via hydraulic down feed valve
  • Convenient operator control station
  • 2 speed 415v motor for high/low blade speeds
  • Blade tension gauge
  • RONTGEN bi-metal saw blade

Plus AutoCut features include

  • Bow hand lever with trigger start switch
  • Separate hydraulic valve downfeed control with large dial
  • Three function switch giving: Fast Approach, Auto Down feed, Manual Down feed

Safety features:

  • Latching emergency stop
  • Safety interlock switch on blade guard
  • Hydraulic gauge to ensure blade is not over tensioned

Machine video

See Cosen MH-270M AutoCut in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Specifications for Cosen MH-270M AutoCut
Cosen MH-270M AutoCut
Capacity 90deg 45deg 60deg
Round capacity 225mm 145mm 90mm
Rectangular capacity (WxH) 240 x 150mm 210 x 145mm 180 x 90mm
Blade speeds 35 or 70 m/min
Blade specification 2450 x 27 x 0.9mm
Working table height 950mm
Motor power 1.1 kW 415V
Weight 266 kg
Floor Space (LxWxH) 1740 x 1420 x 1750mm
Shipping 1.8m3 280kg
