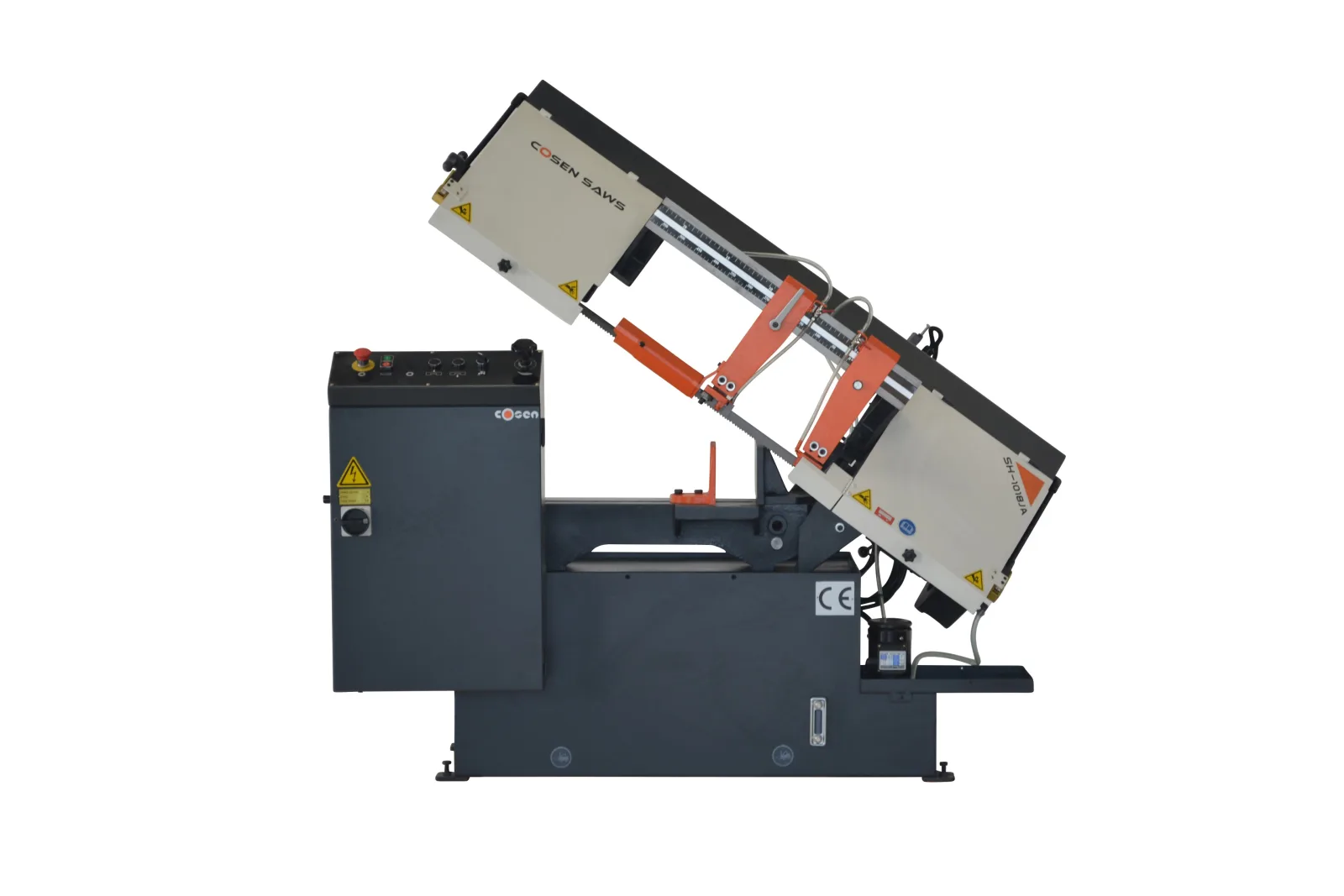

Cosen SH-1018JA CE Semi Automatic Bandsaw

10" x 18" Horizontal 415v Three phase

$8,200.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Blade speeds 24, 38, 53, 81 m/minute
Blade size 3505 x 27mm
Table height 640mm
Main motor 2hp / 1.5kW 414V
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Established in 1976, Cosen Saws has become a global leader in industrial band saw manufacturing, offering over 140 models in horizontal, vertical, and miter-cutting configurations. Their machines are available in manual, semi-automatic, and fully automatic forms, catering to a wide range of cutting needs. With cutting capacities ranging from 200 mm to 2200 mm, Cosen's band saws are designed to handle materials such as steel, titanium, chromium, and silicon, serving industries including construction, automotive, aerospace, and wind power generation. Notably, Cosen was recognized as the No. 1 Sawing Equipment Brand by U.S. Metal Center News in 2015, 2022, 2023, and 2024. With a reputation for great value for money, they have spent more than 27 years maximizing efficiency and quality in every step of design, engineering and manufacturing to assure customers of long-lasting performance. In addition to utilizing internationally recognised components such as Siemens of German, Telemecanique of France and NOK seals of Japan. Cosen has also earned ISO-9001 accreditation as well as CE designation and EMC to assure customers around the globe of absolute quality and reliability.

The SH-1018JA CE 3 phase bandsaw features a manual vise and an adjustable hydraulic down feed, making it well-suited for small to medium-sized machine shops, maintenance facilities, metal fabrication shops, educational settings, and short-run production tasks. It efficiently cuts square, round, and rectangular solids, as well as tubing. Built with a robust frame, this saw delivers consistent accuracy and dependable performance over years of use.

Features:

  • Quality Taiwanese Manufacturing
  • Three phase
  • Rigid bow construction
  • Rigid guide arms mounted on extra wide precision ground dovetail slide
  • Two additional bearings to support blade from the top
  • Two point coolant system to blade
  • Blade cleaning brush wheel
  • Down feed rate & cutting pressure control via hydraulic down feed valve.
  • Hydraulic bow lift & adjustable stop providing semi automatic function.
  • New push pull system on bow for easy lift & fast approach.
  • Carbide blade guides
  • 4 blade speed steps
  • Mitre cutting via swivel in vice
  • Adjustable length stop
  • 1" RONTGEN bi-metal blade

Safety features:

  • Latching emergency stop

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Specifications for Cosen SH-1018JA CE
Cosen SH-1018JA
Capacities Straight 45deg
Round section 255mm 230mm
Rectangular section 460 x 230mm 255 x 230mm
Blade speeds 24, 38, 53, 81 m/minute
Blade size 3505 x 27mm
Table height 640mm
Main motor 2hp / 1.5kW 414V
Net weight 328kg
Floor space (LxWxH) 1730 x 740 x 1050mm
Shipping 330kg 1.8m3

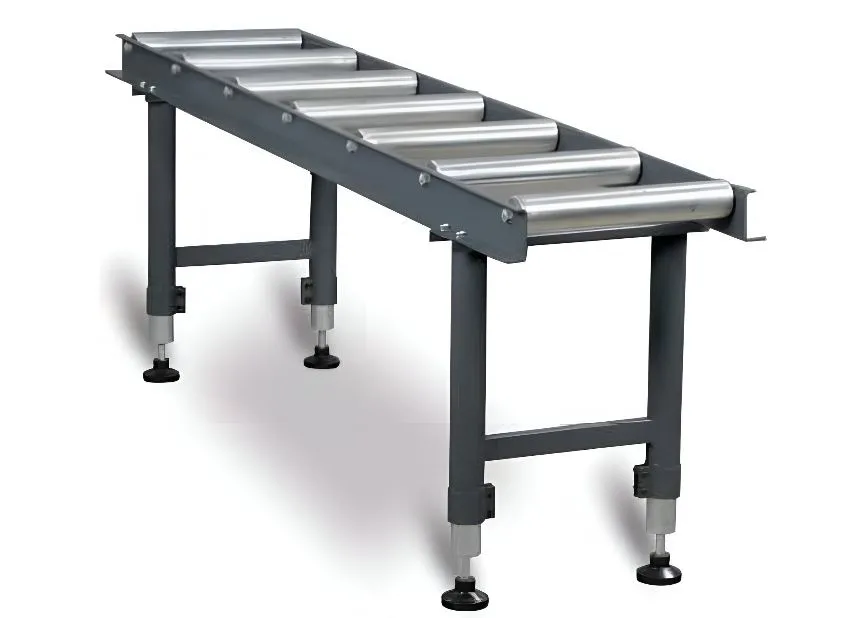

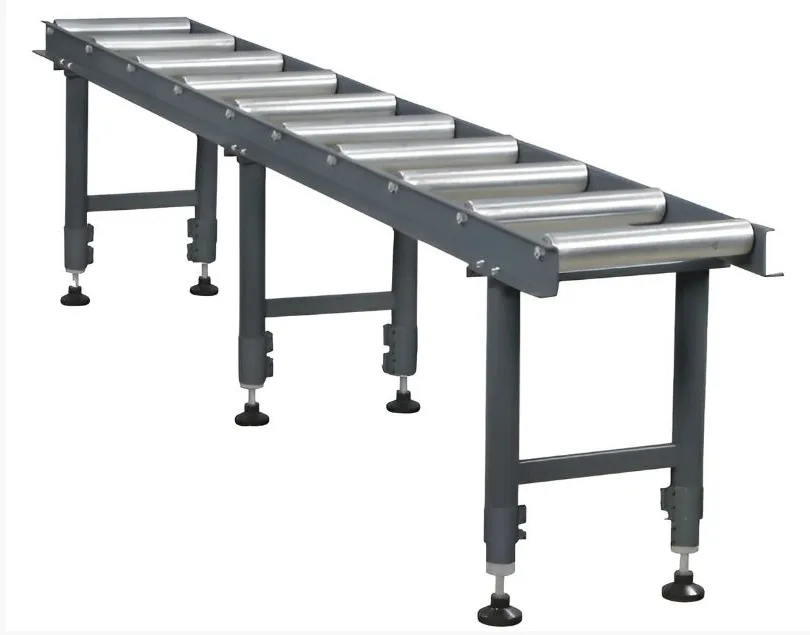

Complete the machine

Tooling and accessories that belong in the discussion.

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.

Auckland · Christchurch · Nationwide support
Regarding Cosen SH-1018JA CE
