Algra Rapidue Italian Quick Change Tool Posts
POA
WEB-RAPID QUICK CHANGE | Prices exclude GST
Product overview
About this machine.
The ALGRA Rapidue Quick Change Toolpost is a premium-quality, three-way toolpost system, proudly made in Italy. Precision ground for outstanding accuracy and repeatability, it provides fast, reliable tool changes while maintaining excellent rigidity for superior machining performance.
Features:
- Genuine ALGRA Rapidue quick change toolpost
- Manufactured in Italy
- Precision ground for accuracy and repeatability
- High-quality construction for long service life
- Three-way toolpost design for quick and efficient tool changes
- Rigid clamping for improved machining performance
- Suitable for professional workshop and industrial applications
Complete set supplied with:
- 1 x Three-way toolpost
- 3 x Standard tool holders
- 1 x Vee-bottom tool holder

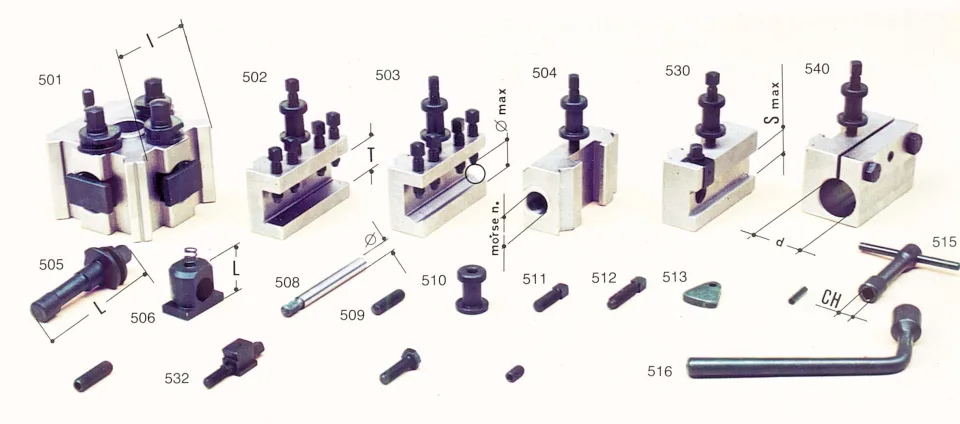

Additional holders & options available: See picture 2

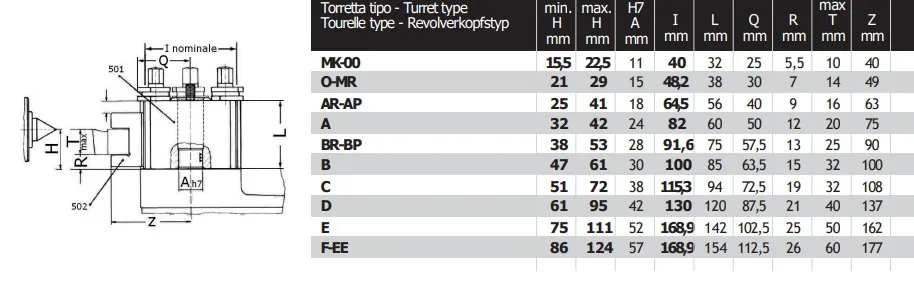

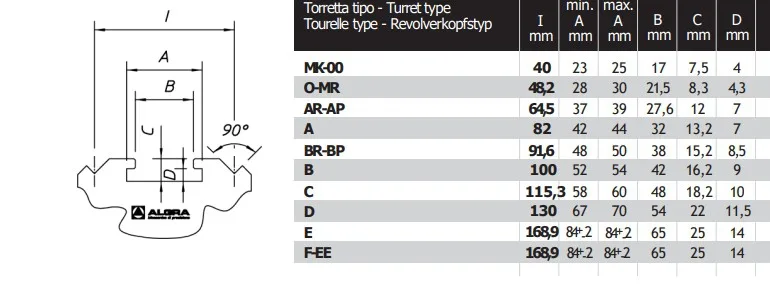

See toolholder sizing on picture 3
Optional:
- Morse taper holder
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | Centre height max | Tool dia max | Base to Centre | Price Excl GST | Scott models |
|---|---|---|---|---|---|
| M | 120mm | 16mm | 24-34mm | $770.00 | Myford size |
| AR/AP | 140mm | 16mm | 25-41mm | $POA | 6128 |
| A | 170mm | 20mm | 32-42mm | $998.00 | 6233 / 6236 / Z330 ERL1340 |
| BR/BP | 200mm | 25mm | 38-53mm | $1,190.00 | 1640, 1550 |
| B | 230mm | 32mm | 47-65mm | $1,360.00 | 1860 / 2060 / 6250 |
| C | 280mm | 32mm | 51-72mm | $1,699.00 | 6266 Z560 Z660 TY2060 |
| D | 350mm | 40mm | 61-95mm | $POA | 6280 |
| Spare Standard Holders | Toolholder length | ||||
| 502-M | 68mm | $100.00 | |||
| 502-AR/AP | 79mm | $POA | |||
| 502-A | 96mm | $160.00 | |||
| 502-BR/BP | 108mm | $199.00 | |||
| 502-B | 116mm | $199.00 | |||
| 502-C | 137mm | $265.00 | |||
| 502-D | 160mm | $595.00 |
