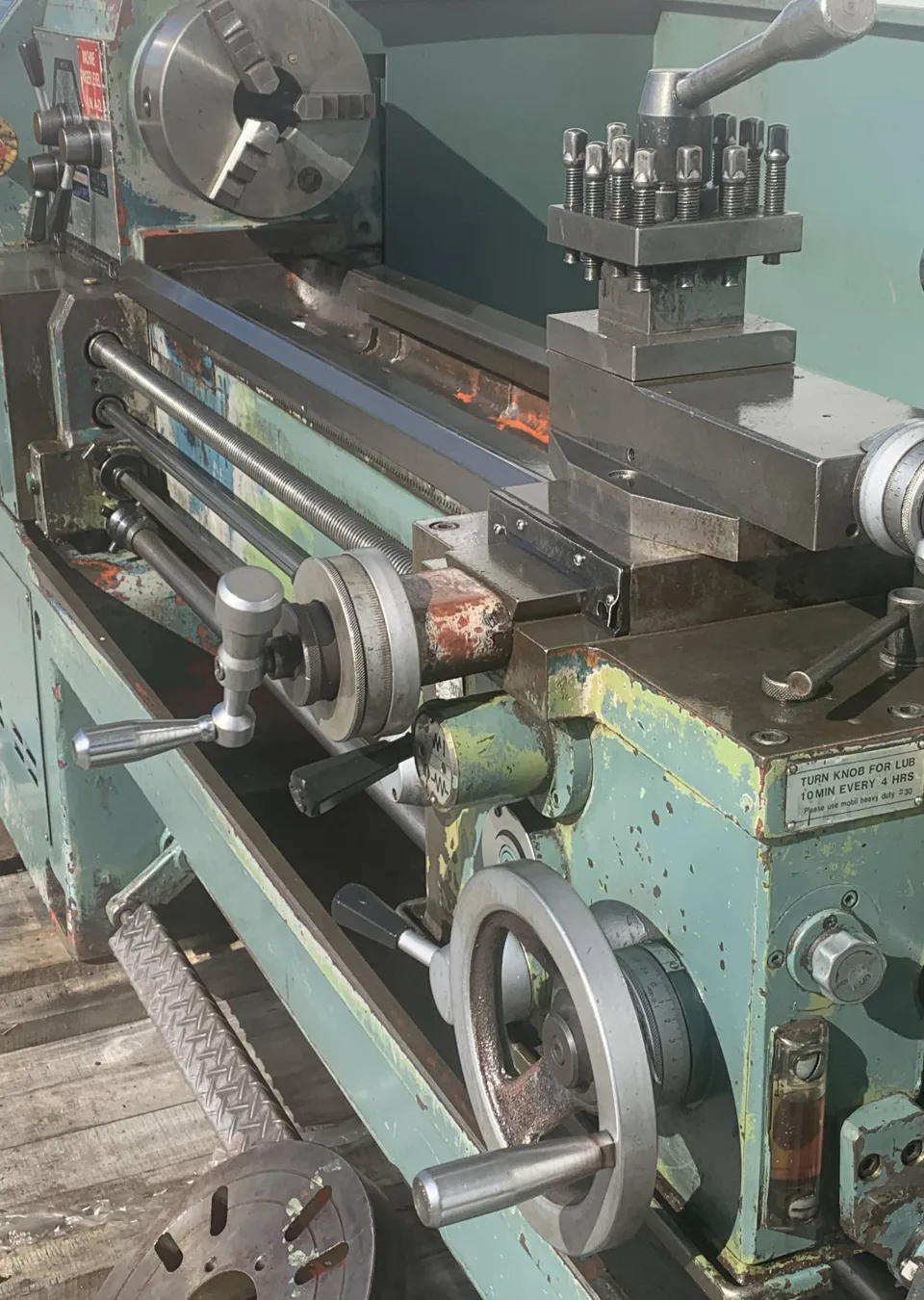

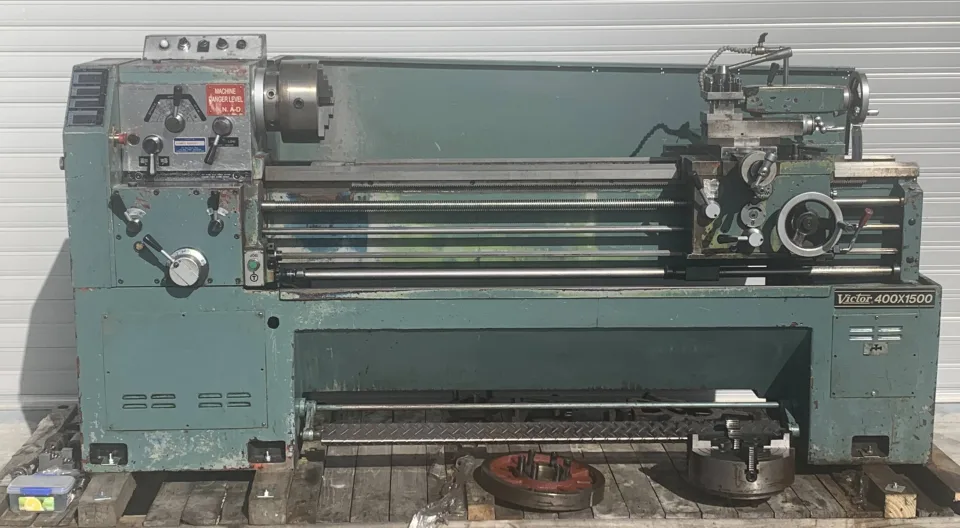

Victor (Taiwan) 400 x 1500 Used Centre Lathe
$9,900.00
LCNT-1-4549 | Prices exclude GST
Product overview
About this machine.
The Victor 400 x 1500 mm is a robust, mid-sized Taiwanese engineered centre lathe prized for its well rounded performance and reliability in general purpose workshops for a wide spectrum of turning tasks. Sitting on its one piece solid cast base & having a 52 mm spindle bore allows for working with substantial bar stock, while its 1,500 mm distance between centres provides flexibility for turning both compact and longer parts.
This used machine runs well with nothing notable to report.
Features:
- 3 phase
- Gap bed
- One piece solid cast base
- 52mm spindle bore
- 4 way toolpost
- 16 spindle speeds via two speed motor
- D1-6 camlock spindle
- Right hand carriage wheel
- Full length rear splash guard
- Longitudinal stops
- Coolant system
- Foot brake
Accessories:
- 3 jaw chuck 250mm
- 4 jaw chuck 300mm
- Faceplate 360mm
- Drive plate
- 13mm & 16mm Jacobs keyed drill chucks
- Fixed & following steady rests
Please note:
- This machine has been powered up and basic functions have been demonstrated as you can see in the video.
- See the video for more information
We have made every effort to accurately represent the features and specifications of this machine through the photos and additional information. We welcome your inspection at our Christchurch Branch
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Victor Lathe
Model 400 x 1500
Swing over bed
400mm
Swing over carriage
250mm
Swing in gap
585mm
Spindle bore
52mm
Distance between centres
1500mm
Bed width
300mm
Number of spindle speeds
16

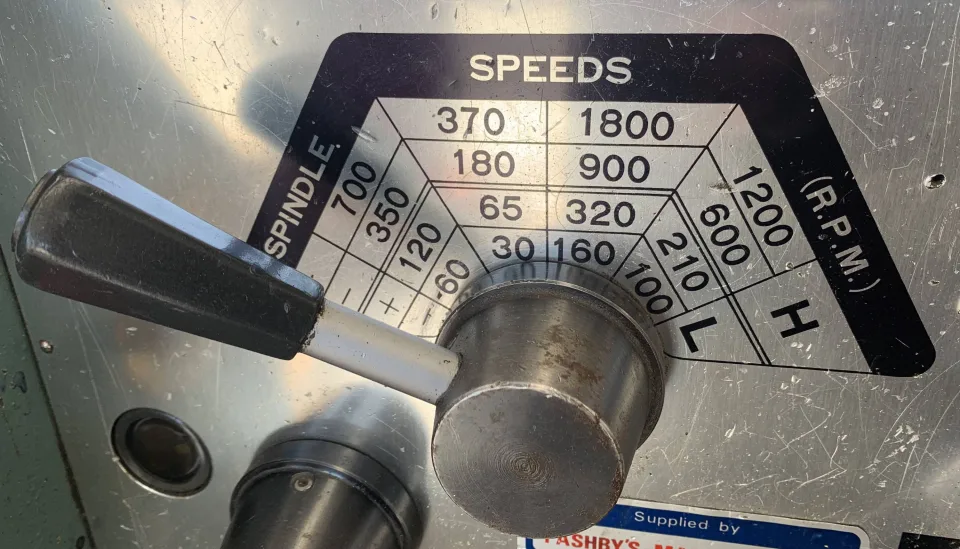

Speed range
30 - 1,800 rpm
Tailstock taper
MT4
Motor power
7.5hp
Weight
1,560kg
Shipping
2,900mm x 1,200mm x 1,550mm (2,900kg)
