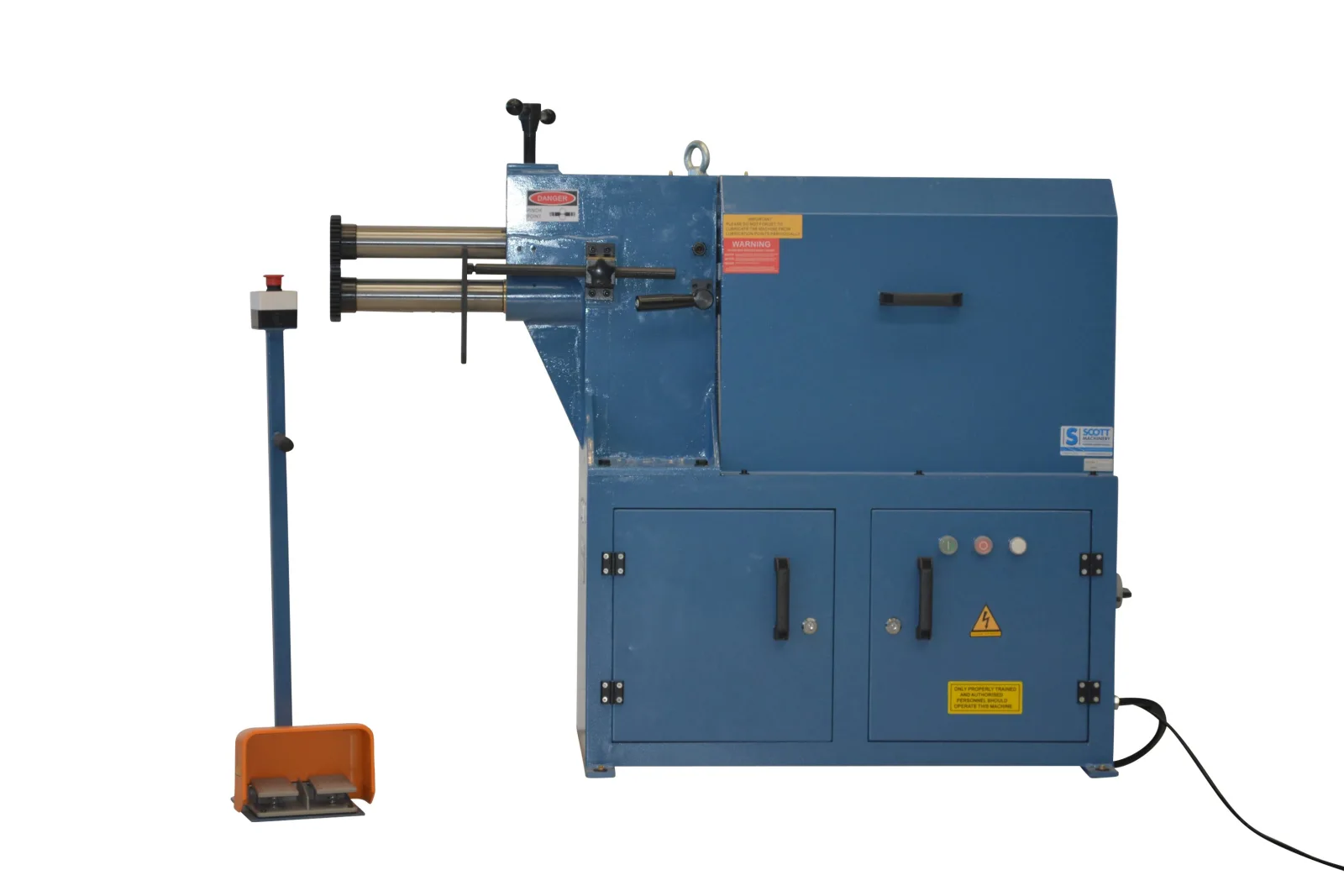

METALEX ETB-25 Motorised Swaging Jenny
1 / 8
METALEX logo ROLL-0-0042

Sheet Metal & Fabrication · Rolling & forming

METALEX ETB-25 Motorised Swaging Jenny

2.5mm Capacity 280mm Throat depth Heavy duty, cost effective.

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model Metalex ETB-25
Capacity 2.5mm mild steel (1.2mm Stainless steel)
Roll diameter 96mm
Shaft length / throat depth 280mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Metalex is a trusted name in metalworking machinery and tooling, known for offering reliable performance, practical design, and outstanding value. Engineered to meet the demands of workshops, fabricators, and light industrial environments, the Metalex range includes equipment such as presses, guillotines, bandsaws, folders, and roll formers. Built with a focus on durability and ease of use, Metalex machines are well regarded for their solid construction and dependable operation across a wide range of applications

The Metalex ETB‑25 is a compact, motorised swaging machine designed for precise bead and rib forming on light to mid gauge materials up to 2.5 mm thick. Powered by a 1.5 kW motor and featuring foot pedal control with forward/reverse function, it offers smooth operation and repeatable results. Built on a rigid steel frame with a 280 mm throat depth, it comes standard with four roller sets and an adjustable backstop. Ideal for strengthening and detailing sheetmetal in fabrication, HVAC, and restoration work.

Features:

  • Fabricated steel construction frame
  • Forward/backward adjustable bottom shaft
  • Forward/backward adjustable sheet support
  • Forward and reverse operation
  • Foot pedal control for hands free use
  • 280 mm throat depth for greater reach
  • Bronze bush bearings on steel shafts
  • 60mm Shafts step down to take 40mm ID roll sets
  • Includes floor stand
  • Geared motor

Standard accessories:

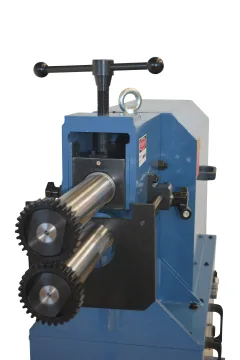

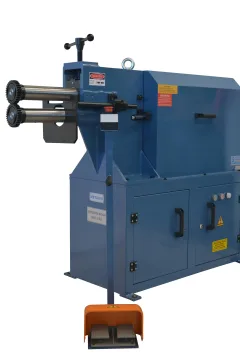

  • 4 sets of rolls as per photos

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model Metalex ETB-25
Capacity 2.5mm mild steel (1.2mm Stainless steel)
Roll diameter 96mm
Shaft length / throat depth 280mm
Motor speed 20 RPM
Motor power 415v 3 phase 1.5kw/2hp
Weight 250kg
Floor space 1470mm x 580mm x 1350mm

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
