Soco MC-370PV-CE Circular Saw
1 / 5
Soco logo SAWC-0-0010

Saws & Cutting · Circular & cold saws

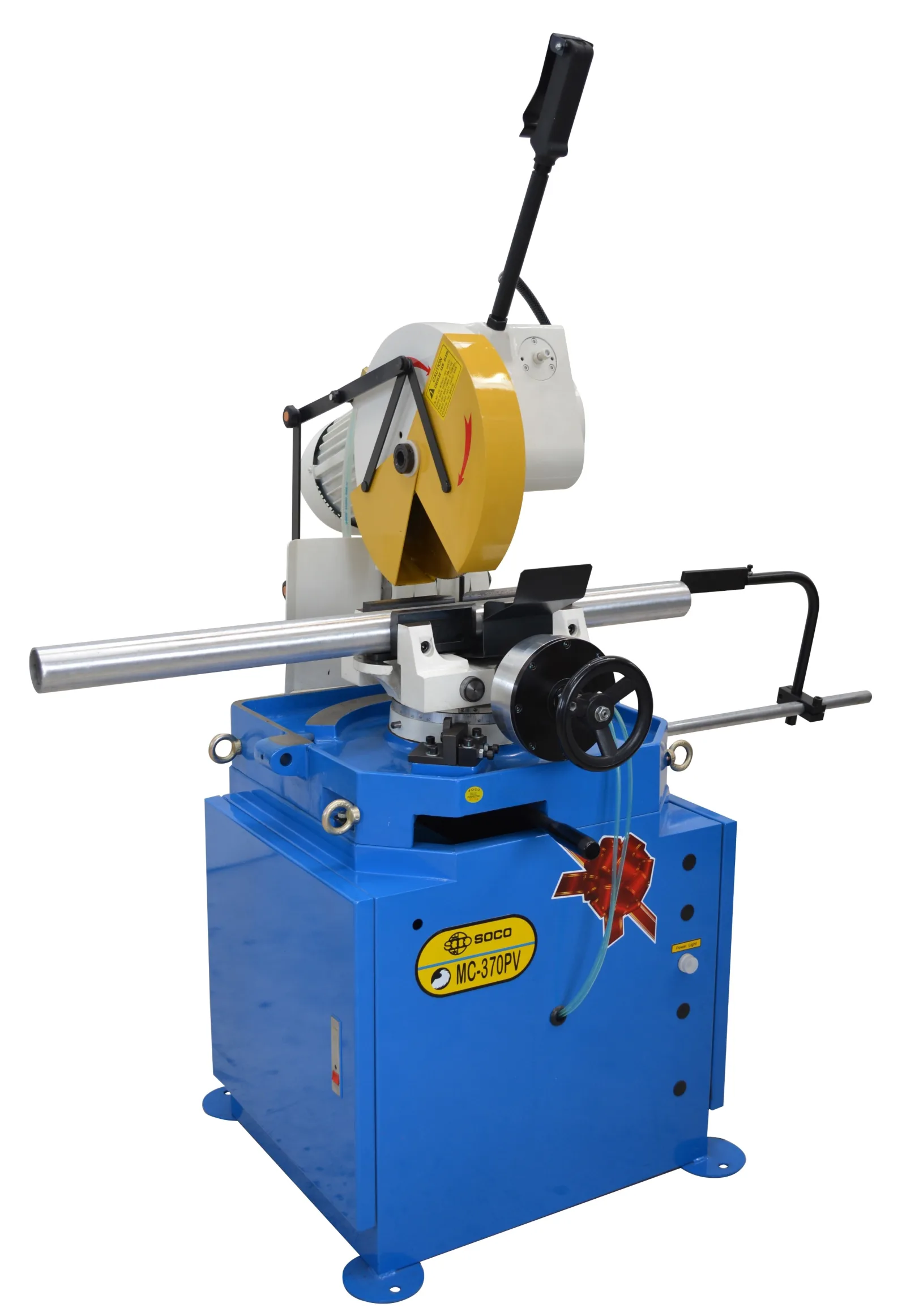

Soco MC-370PV-CE Circular Saw

Slow speed cold saw, 370 blade diameter, 3 phase, 115mm capacity, Air vice 3 sets of jaws

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model MC-370PV
Blade size 370mm x 32 x 2.5mm
Motor 3hp, 3 phase, 415v
Blade speed 44/88 rpm(22/44 rpm or 11/22 rpm optional)
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Slow speed cold saw, 370 blade diameter, 3 phase, 115mm capacity, Air vice 3 sets of jaws

Quality Taiwanese Manufacturing

  • Slow speed cold saw
  • 370mm HSS blade diameter
  • Two way mitre cutting swivel head
  • Burr free, fast and precise
  • Heavy duty construction
  • Triple reduction gears 125mm worm wheel
  • Two speed 3HP 3ph motor
  • Built in auto coolant system
  • Floor to table height approx 840mm

Positional stops 45, 60, 90 degrees

  • Double clamping self centering vice
  • Air clamping vice (PV model)
  • Material length stop
  • Material infeed support
  • 3 x sets of jaws (vee mitre, vee straight & flat mitre)

Optional

  • Manual vice (F model)
  • Slow rpm motor for Stainless steel

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model MC-370PV
Blade size 370mm x 32 x 2.5mm
Capacities Straight 45°
Round section 115mm 115mm
Square section 110 x 110mm 100 x 100mm
Rectangular section 110 x 110mm 100 x 100mm
Angle section 110 x 110mm 100 x 100mm
Solid section 75 x 75mm 50 x 50mm
Motor 3hp, 3 phase, 415v
Blade speed 44/88 rpm(22/44 rpm or 11/22 rpm optional)
Standard jaws 3 sets vee mitre, vee straight & flat mitre
Nett weight 270kg
