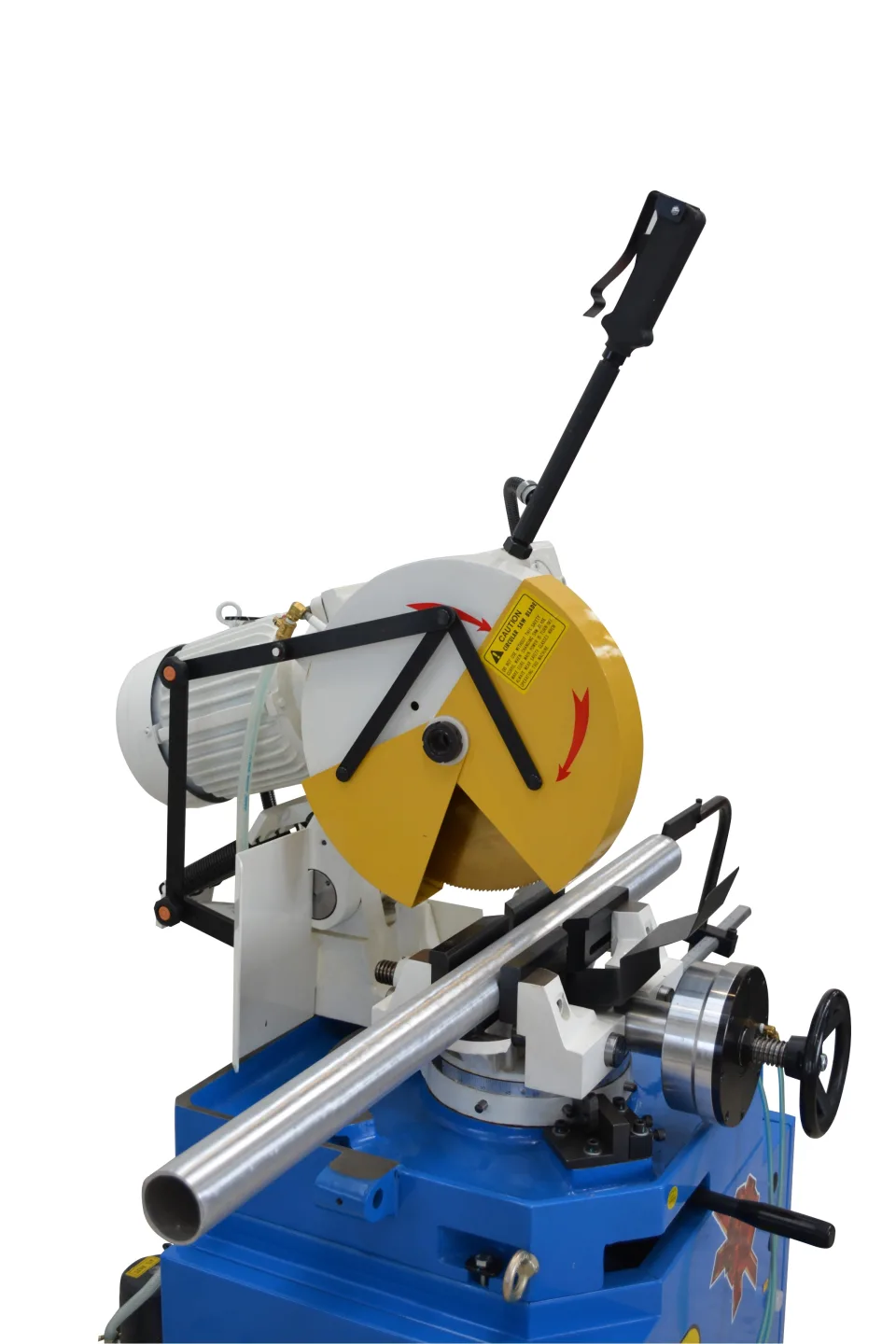

Soco MC-370PV-CE Circular Saw
c/w HSS blade, 44/88rpm
POA
SAWC-0-0010 | Prices exclude GST
Product overview
About this machine.
Slow speed cold saw, 370 blade diameter, 3 phase, 115mm capacity, Air vice 3 sets of jaws
Quality Taiwanese Manufacturing
- Slow speed cold saw
- 370mm HSS blade diameter
- Two way mitre cutting swivel head
- Burr free, fast and precise
- Heavy duty construction
- Triple reduction gears 125mm worm wheel
- Two speed 3HP 3ph motor
- Built in auto coolant system
- Floor to table height approx 840mm
Positional stops 45, 60, 90 degrees

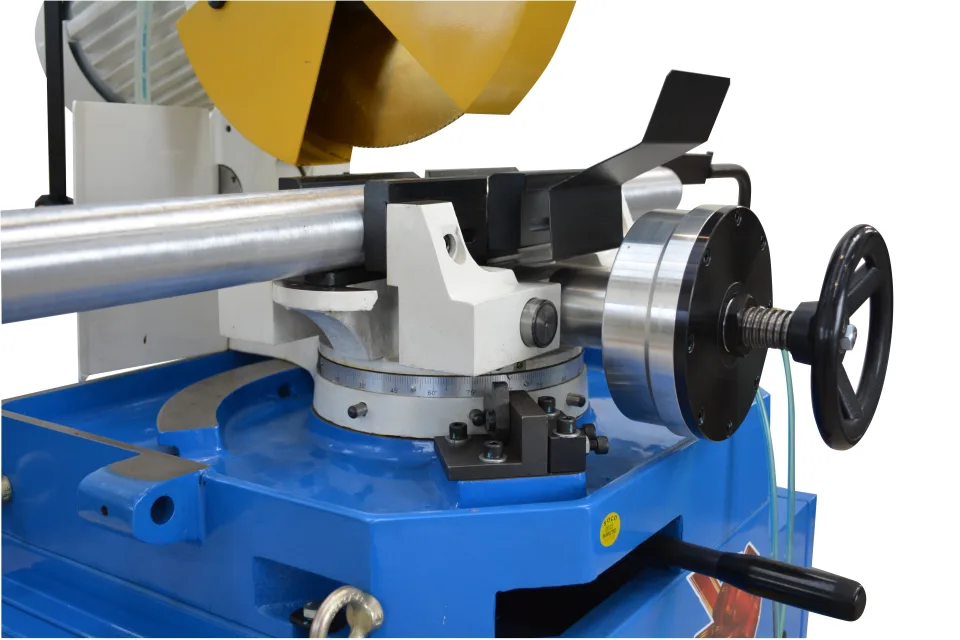

- Double clamping self centering vice
- Air clamping vice (PV model)

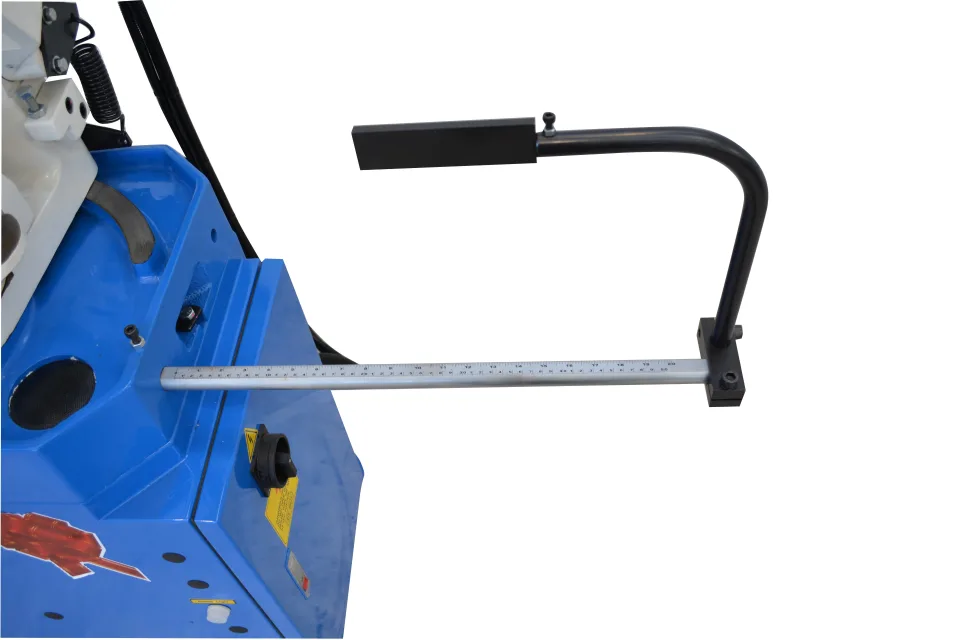

- Material length stop
- Material infeed support
- 3 x sets of jaws (vee mitre, vee straight & flat mitre)
Optional
- Manual vice (F model)
- Slow rpm motor for Stainless steel
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | MC-370PV | |
|---|---|---|
| Blade size | 370mm x 32 x 2.5mm | |
| Capacities | Straight | 45° |
| Round section | 115mm | 115mm |
| Square section | 110 x 110mm | 100 x 100mm |
| Rectangular section | 110 x 110mm | 100 x 100mm |
| Angle section | 110 x 110mm | 100 x 100mm |
| Solid section | 75 x 75mm | 50 x 50mm |
| Motor | 3hp, 3 phase, 415v | |
| Blade speed | 44/88 rpm(22/44 rpm or 11/22 rpm optional) | |
| Standard jaws | 3 sets | vee mitre, vee straight & flat mitre |
| Nett weight | 270kg |
