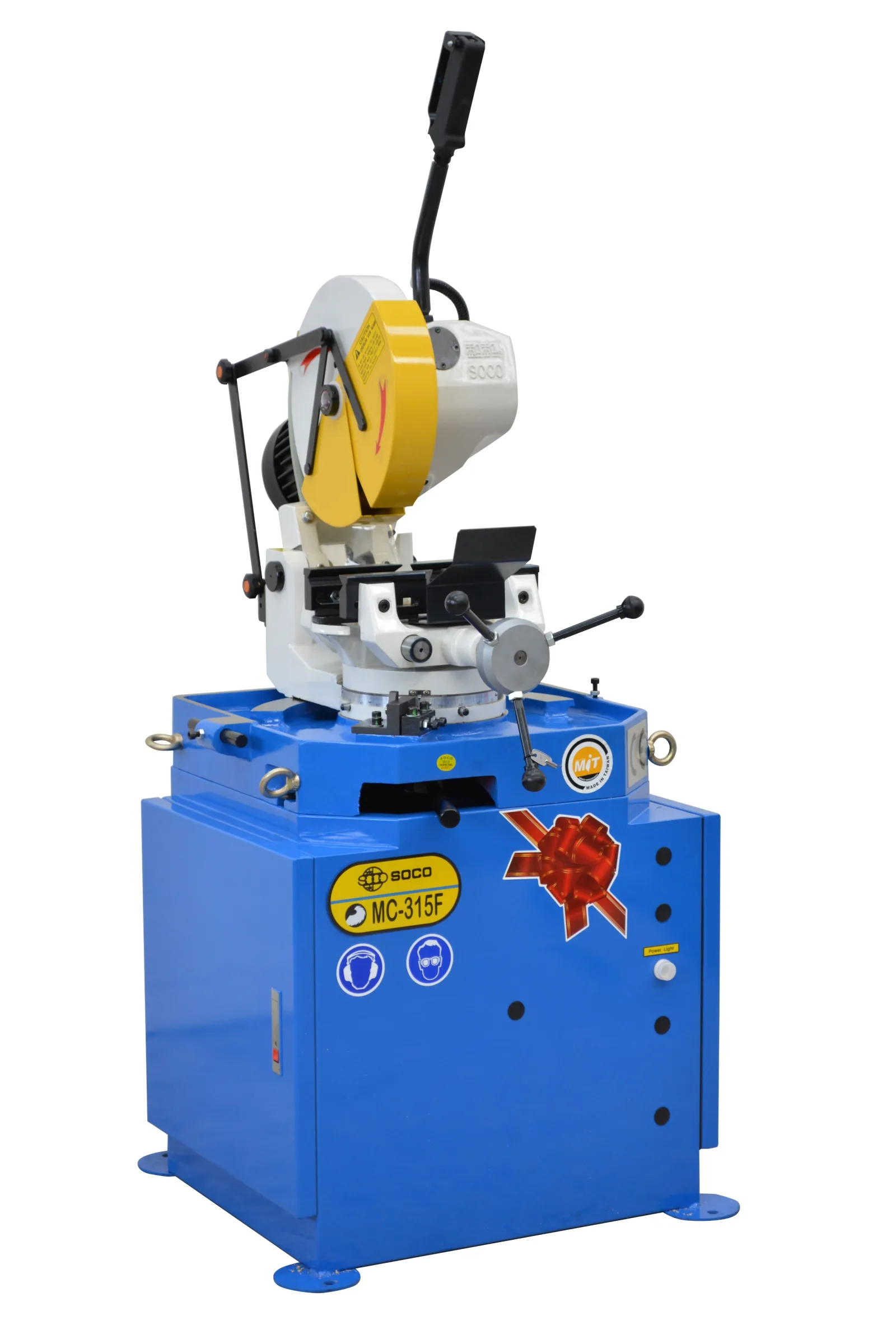

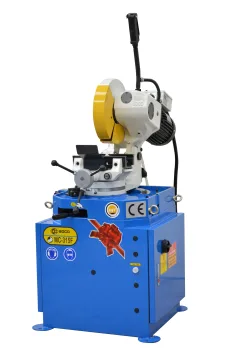

Soco MC-315F-CE Circular Saw

Slow speed cold saw 315mm blade diameter 3 phase, 100mm capacity

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model MC-315F
Blade size 315 - 325mm x 32mm bore
Motor 3 hp, 3 Phase, 415v
Blade speeds 50/100 rpm, (25/50 rpm optional)
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Slow speed cold saw 315mm blade diameter 3 phase, 100mm capacity

Quality Taiwanese Manufacturing

  • Slow speed cold saw
  • 315mm blade diameter
  • Two way mitre cutting swivel head
  • Burr free, fast and precise
  • Heavy duty construction
  • Two sets of reduction gears
  • Two speed 3HP 3ph motor
  • Built in auto coolant system
  • CE electrics

Positional stops 45, 60, 90 degrees

  • Double clamping self centering vice
  • Manual vice (F model)

Optional

  • Air clamping vice (PV model)
  • Air clamping vice auto head feeding (AC model)
  • Slow rpm motor for Stainless steel

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model MC-315F
Blade size 315 - 325mm x 32mm bore
Capacities Straight 45°
Round section 100mm 100mm
Square section 90 x 90mm 85 x 85mm
Rectangular section 85 x 110mm 85 x 85mm
Angle section 90 x 90mm 85 x 85mm
Solid section 50 x 50mm 40 x 40mm
Motor 3 hp, 3 Phase, 415v
Blade speeds 50/100 rpm, (25/50 rpm optional)
Standard jaws 2 Sets vee mitre & flat mitre
Nett weight 200kg
