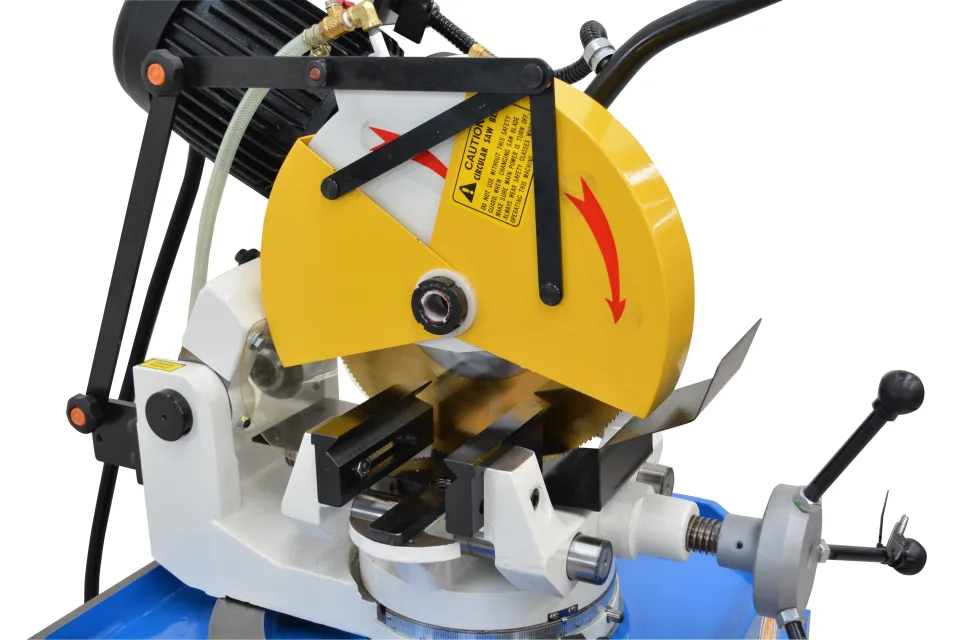

Soco MC-315F-CE Circular Saw
c/w HSS blade, 50/100rpm
POA
SAWC-0-0006 | Prices exclude GST
Product overview
About this machine.
Slow speed cold saw 315mm blade diameter 3 phase, 100mm capacity
Quality Taiwanese Manufacturing
- Slow speed cold saw
- 315mm blade diameter
- Two way mitre cutting swivel head
- Burr free, fast and precise
- Heavy duty construction
- Two sets of reduction gears

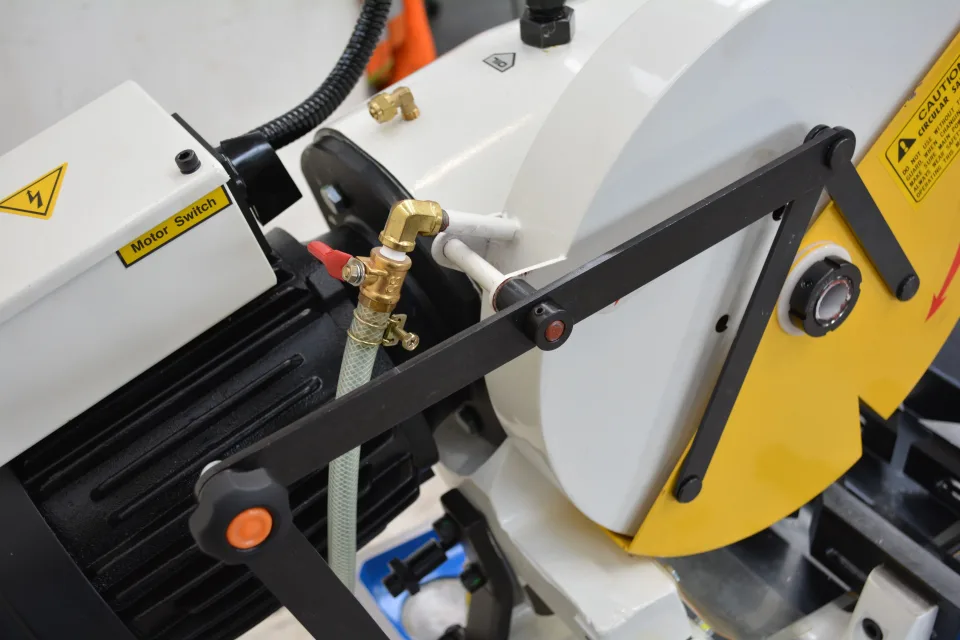

- Two speed 3HP 3ph motor
- Built in auto coolant system
- CE electrics

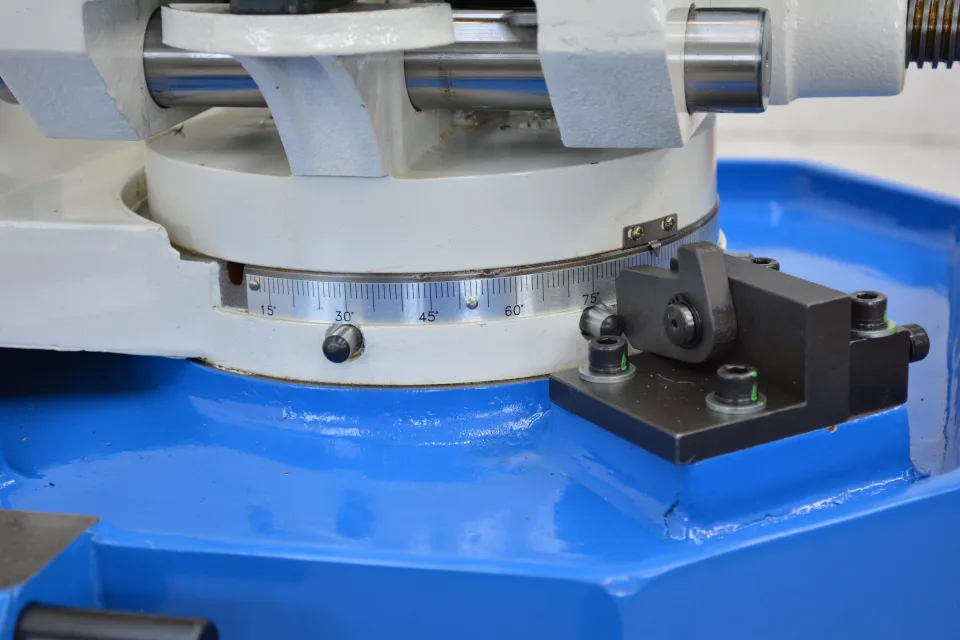

Positional stops 45, 60, 90 degrees

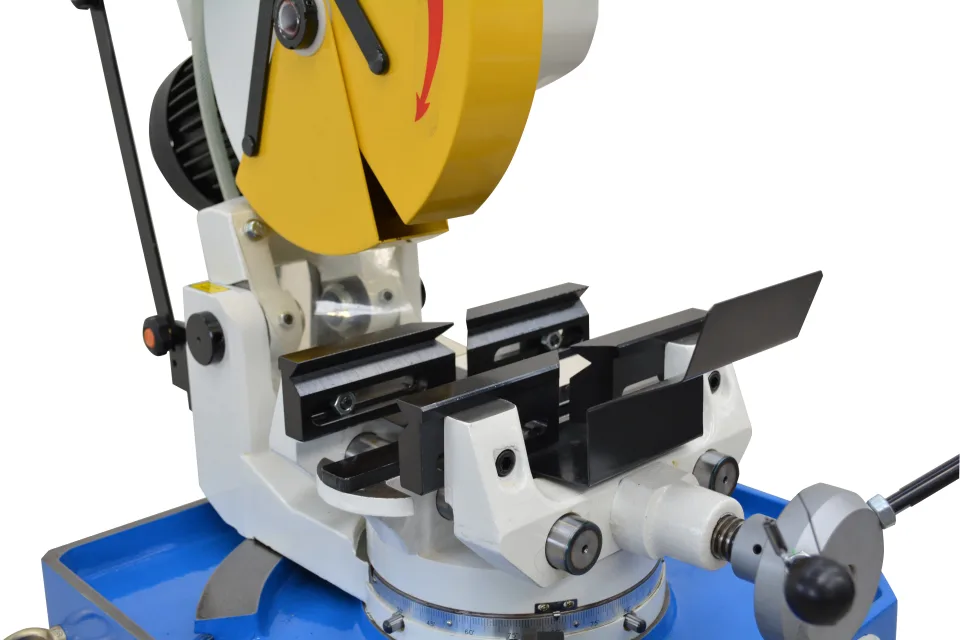

- Double clamping self centering vice
- Manual vice (F model)
Optional
- Air clamping vice (PV model)
- Air clamping vice auto head feeding (AC model)
- Slow rpm motor for Stainless steel
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | MC-315F | |
|---|---|---|
| Blade size | 315 - 325mm x 32mm bore | |
| Capacities | Straight | 45° |
| Round section | 100mm | 100mm |
| Square section | 90 x 90mm | 85 x 85mm |
| Rectangular section | 85 x 110mm | 85 x 85mm |
| Angle section | 90 x 90mm | 85 x 85mm |
| Solid section | 50 x 50mm | 40 x 40mm |
| Motor | 3 hp, 3 Phase, 415v | |
| Blade speeds | 50/100 rpm, (25/50 rpm optional) | |
| Standard jaws | 2 Sets | vee mitre & flat mitre |
| Nett weight | 200kg |
