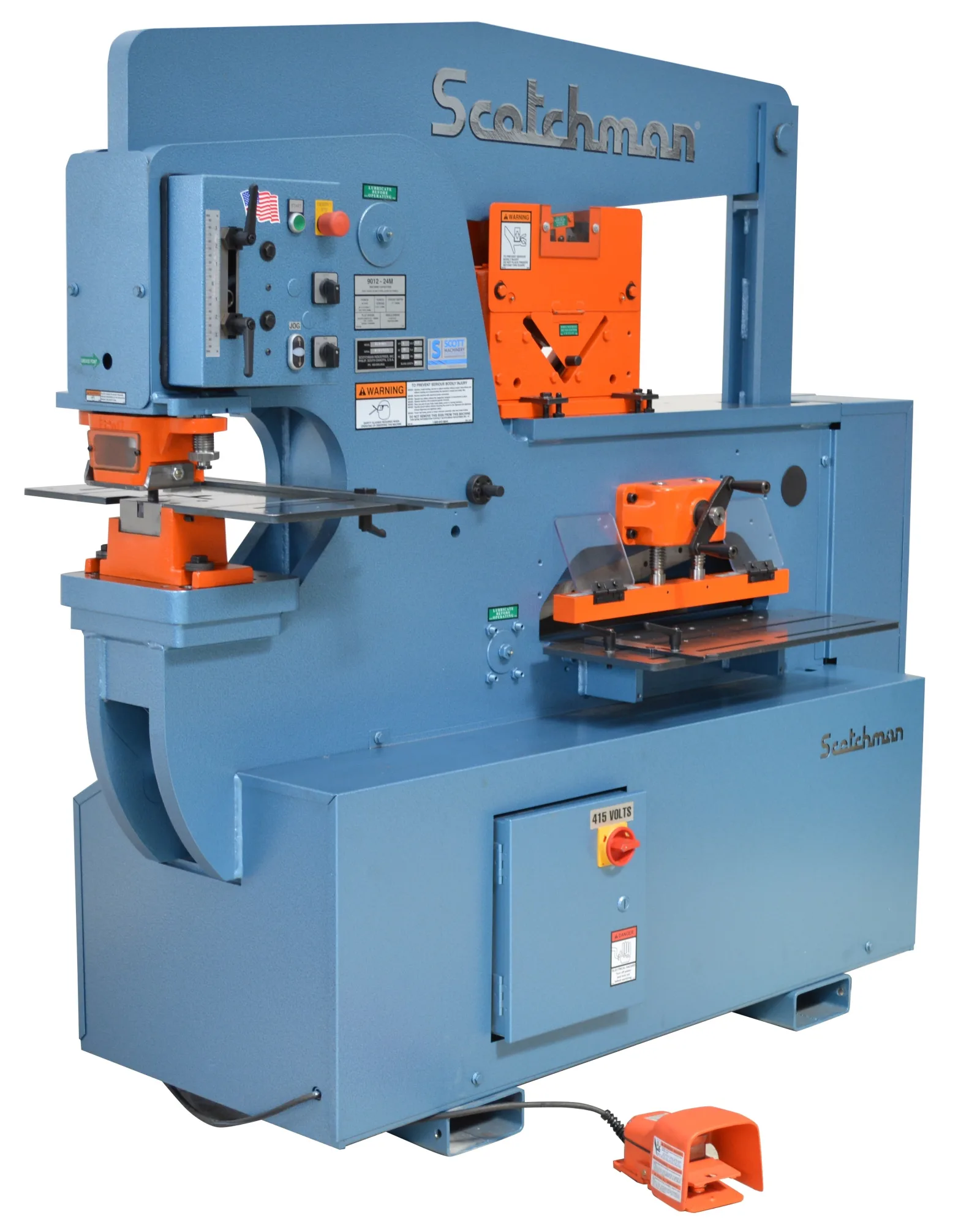

Scotchman 9012-24M Hydraulic Punch & Shearing Machine

90 Ton capacity, 600mm shear station

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model 9012-24M
Capacity 90 Ton
Punching (diameter x thickness) Examples : 32mm in 23mm or 27mm in 25mm
Flat shear (length x thickness) 200 x 25mm, 300 x 18mm, 400 x 12mm, 600 x 6mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Quality USA made machine complete with 3 year factory warranty

Proven reliability

  • Impossible to overload
  • Unique low pressure / low maintenance design
  • Incorporated 'Power Bar' for custom options
  • 17mm Round XL Punch & Die

Optional accessories & tooling:

  • Pressbrake attachments
  • Pipe notcher attachment
  • 90 degree notcher
  • Tube shear
  • Rod shear
  • Picket tool attachment
  • Off set die holder
  • Oversize die holder
  • Oversize punching table
  • Channel shear
  • Various sizes & shapes of punch & dies

Machine video

See Scotchman 9012-24M in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model 9012-24M
Capacity 90 Ton
Punching (diameter x thickness) Examples : 32mm in 23mm or 27mm in 25mm
Flat shear (length x thickness) 200 x 25mm, 300 x 18mm, 400 x 12mm, 600 x 6mm
Angle shear (length x thickness) 150 x 150 x 13mm
Throat depth (punching) 305mm / 12"
Shearing length 600mm / 24"
Motor 4kw / 415 volts / 50 hz / 3 phase
Nett machine weight 1,770 kg
Floor space L x D x H 1930 x 660 x 1770mm
