Scotchman 9012-24M Hydraulic Punch & Shearing Machine
POA
P&SH-0-0008 | Prices exclude GST
Product overview
About this machine.
Quality USA made machine complete with 3 year factory warranty
Proven reliability
- Impossible to overload
- Unique low pressure / low maintenance design
- Incorporated 'Power Bar' for custom options
- 17mm Round XL Punch & Die
Optional accessories & tooling:
- Pressbrake attachments
- Pipe notcher attachment
- 90 degree notcher
- Tube shear
- Rod shear
- Picket tool attachment
- Off set die holder
- Oversize die holder
- Oversize punching table
- Channel shear
- Various sizes & shapes of punch & dies
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
9012-24M
Capacity
90 Ton

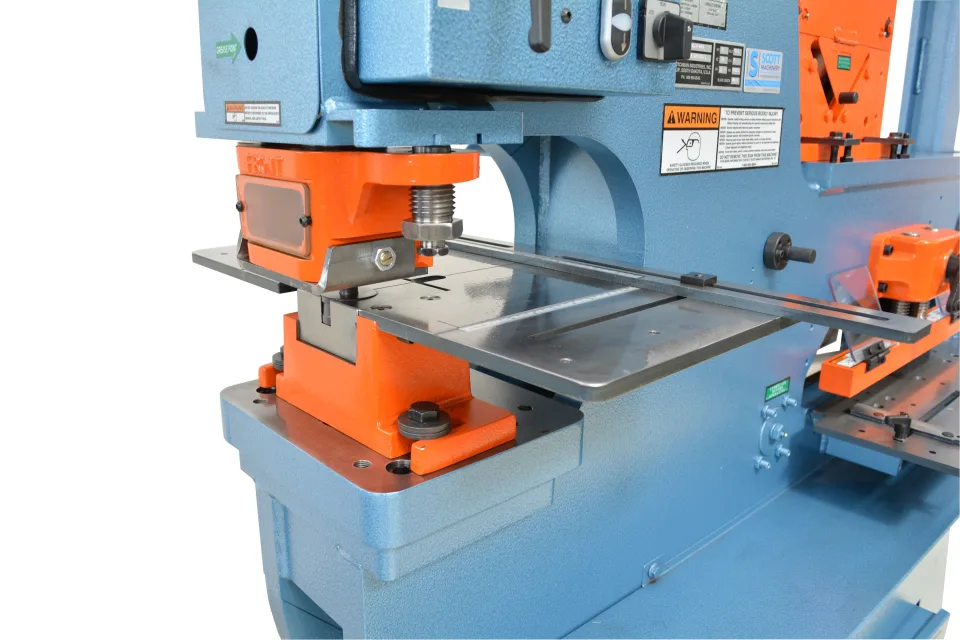

Punching (diameter x thickness)
Examples : 32mm in 23mm or 27mm in 25mm

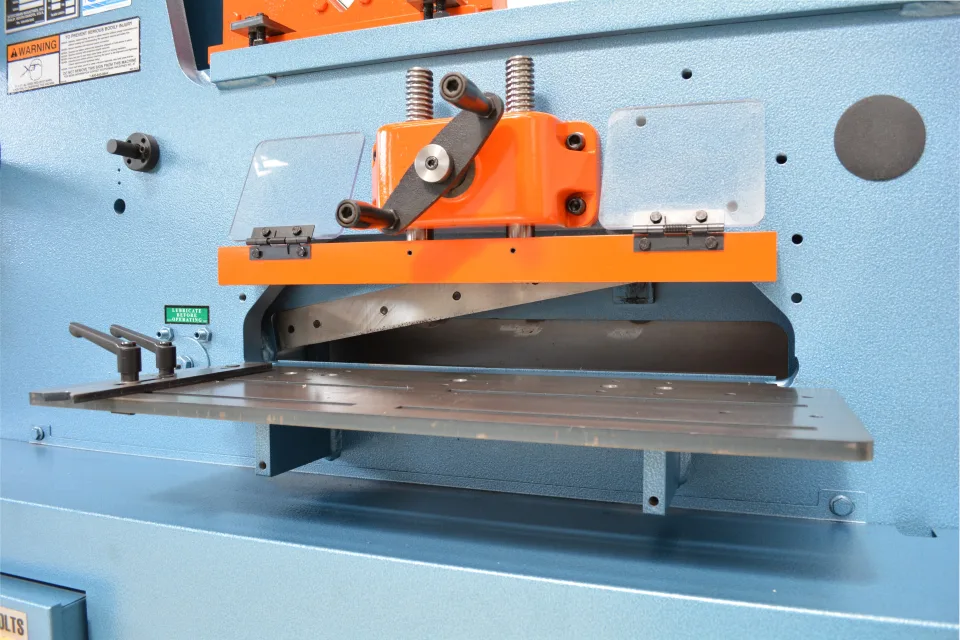

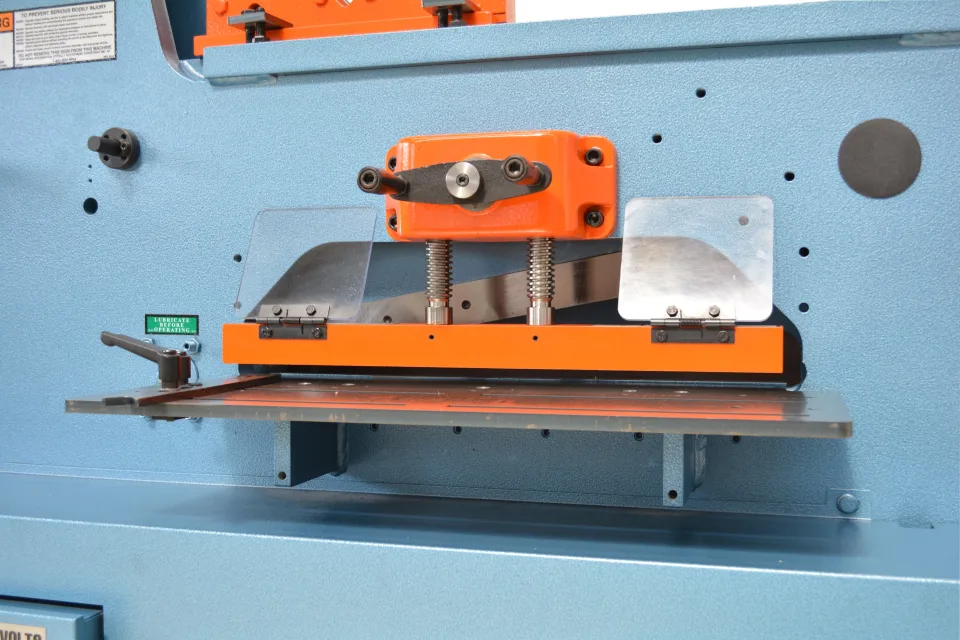

Flat shear (length x thickness)
200 x 25mm, 300 x 18mm, 400 x 12mm, 600 x 6mm

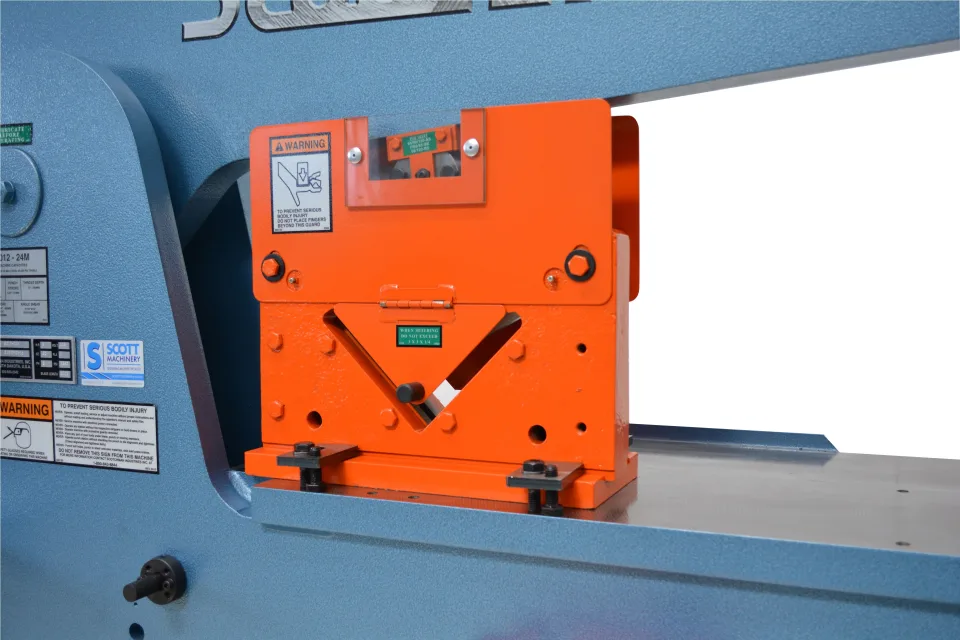

Angle shear (length x thickness)
150 x 150 x 13mm
Throat depth (punching)
305mm / 12"
Shearing length
600mm / 24"
Motor
4kw / 415 volts / 50 hz / 3 phase
Nett machine weight
1,770 kg
Floor space L x D x H
1930 x 660 x 1770mm
