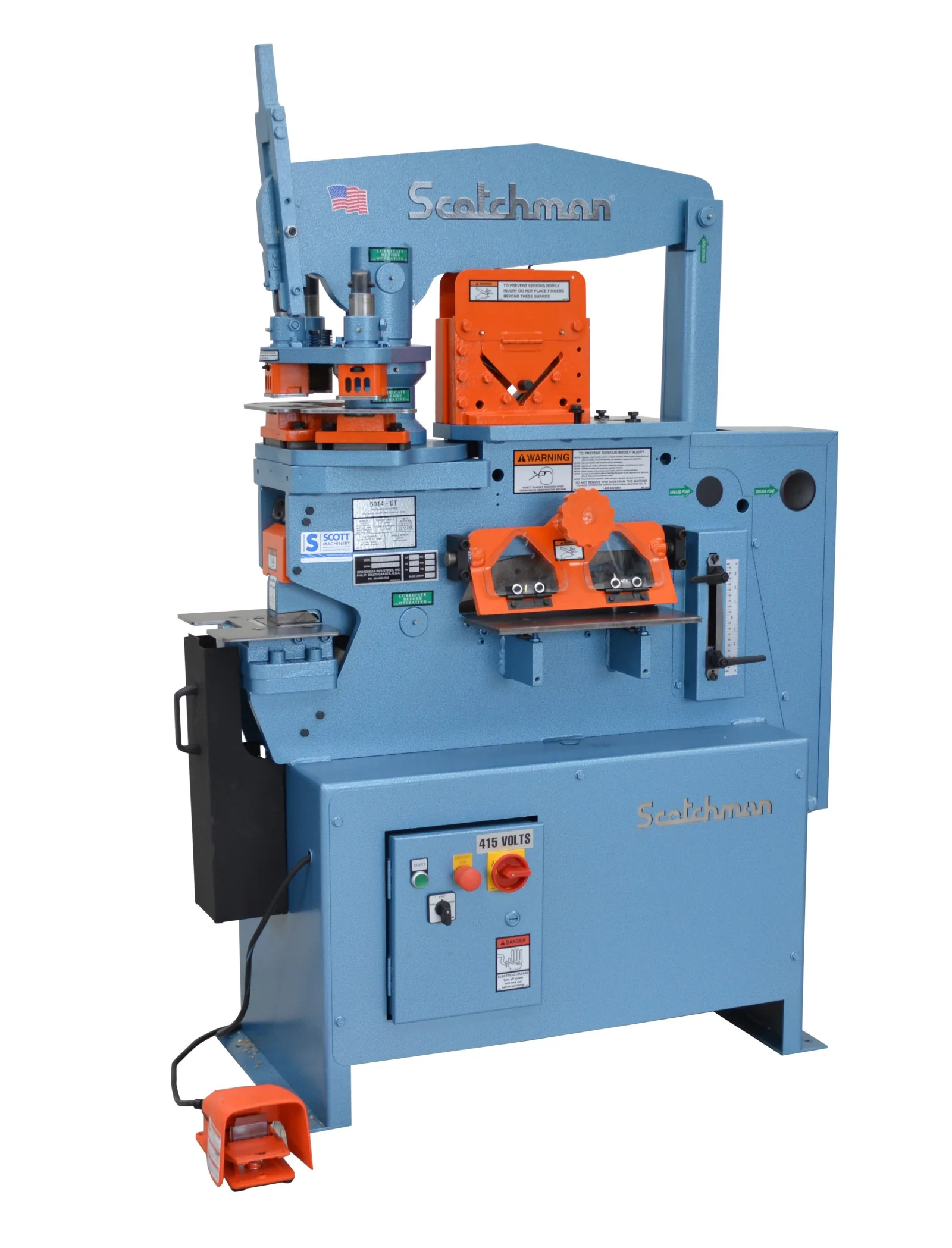

Scotchman 5014-ET Hydraulic Punch & Shearing Machine

50 Ton capacity 3 Station punching turret & notching station 415v

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model 5014ET
Capacity 50 ton
Punching (diameter x thickness) 32x12mm / 21x18mm
Flat shear (length x thickness) 18x100mm / 200x12mm / 350x6mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Quality USA made machine complete with 3 year factory warranty

Machine features:

  • 3 Station revolving punch turret
  • Proven reliability
  • Impossible to overload
  • Unique low pressure / low maintenance design
  • Incorporated 'Power Bar' for custom options
  • Built in notcher
  • 355mm wide shear station
  • 13mm Round Punch & Die set

Optional accessories & tooling:

  • Press brake attachments (6, 8 or 12")
  • Pipe notcher attachment
  • 90 degree notcher
  • Tube shear
  • Rod shear
  • Picket tool
  • Oversize die holder
  • Oversize punch table
  • Various sizes & shapes of punch & dies
  • Electric Back gauge for cut to length.

Machine video

See Scotchman 5014-ET in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model 5014ET
Capacity 50 ton
Punching (diameter x thickness) 32x12mm / 21x18mm
Flat shear (length x thickness) 18x100mm / 200x12mm / 350x6mm
Angle shear (length x thickness) 100 x 100 x 10mm
Throat depth (punching) 100mm
Shearing length 350mm
Rectangular notcher 62 x 75 x 8mm
Motor power 3 HP 3 phase 415v
Weight 717 kg
Dimensions 1220 x 590 x 1780mm

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
