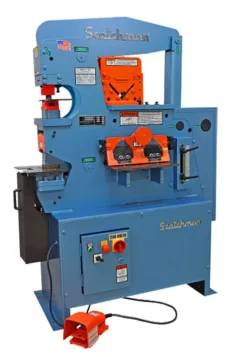

Scotchman 50514-EC Hydraulic Punch & Shearing Machine

50 Ton capacity, Notching station 415v

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model 50514-EC
Capacity 50 Ton
Punching (diameter x thickness) 32x12mm / 21x18mm
Flat shear (length x thickness) 18x100mm / 200x12mm / 350x6mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Quality USA made machine complete with 3 year factory warranty

Machine features:

  • Proven reliability
  • Impossible to overload
  • Unique low pressure / low maintenance design
  • Incorporated 'Power Bar' for custom options
  • Large angle shear capacity

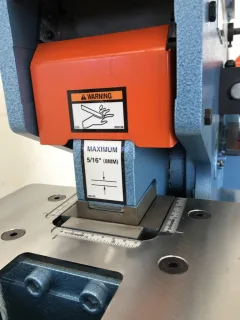

  • Now with a convenient rectangular notching station
  • 355mm wide shear station

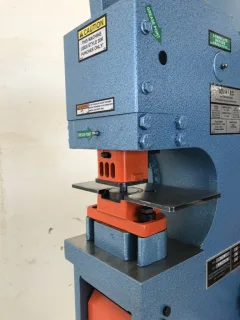

  • 13mm Round punch & die set ( 314 style )
  • Includes optional laser for the shear line fitted

Optional accessories & tooling:

  • Pressbrake attachments
  • Pipe notcher attachment
  • 90 degree notcher
  • Tube shear
  • Rod shear
  • Picket tool
  • Oversize die holder
  • Oversize punch table
  • Various sizes & shapes of punch & dies

Machine video

See Scotchman 50514-EC in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model 50514-EC
Capacity 50 Ton
Punching (diameter x thickness) 32x12mm / 21x18mm
Flat shear (length x thickness) 18x100mm / 200x12mm / 350x6mm
Angle shear (length x thickness) 100 x 100 x 10mm
Throat depth (punching) 150mm
Shearing length 350mm
Rectangular notcher 62 x 75 x 8mm

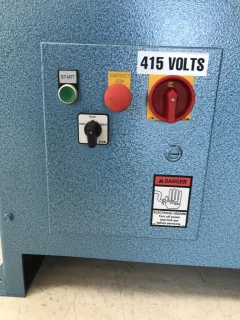

Motor power 3 HP 3 phase 415v
Weight 580 kg
Dimensions 1200 x 750 x 1500mm
