Scotchman 314 Punch & Dies

314 style Stock punch & die sets

POA Configured to suit your application. Talk to us for a price.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

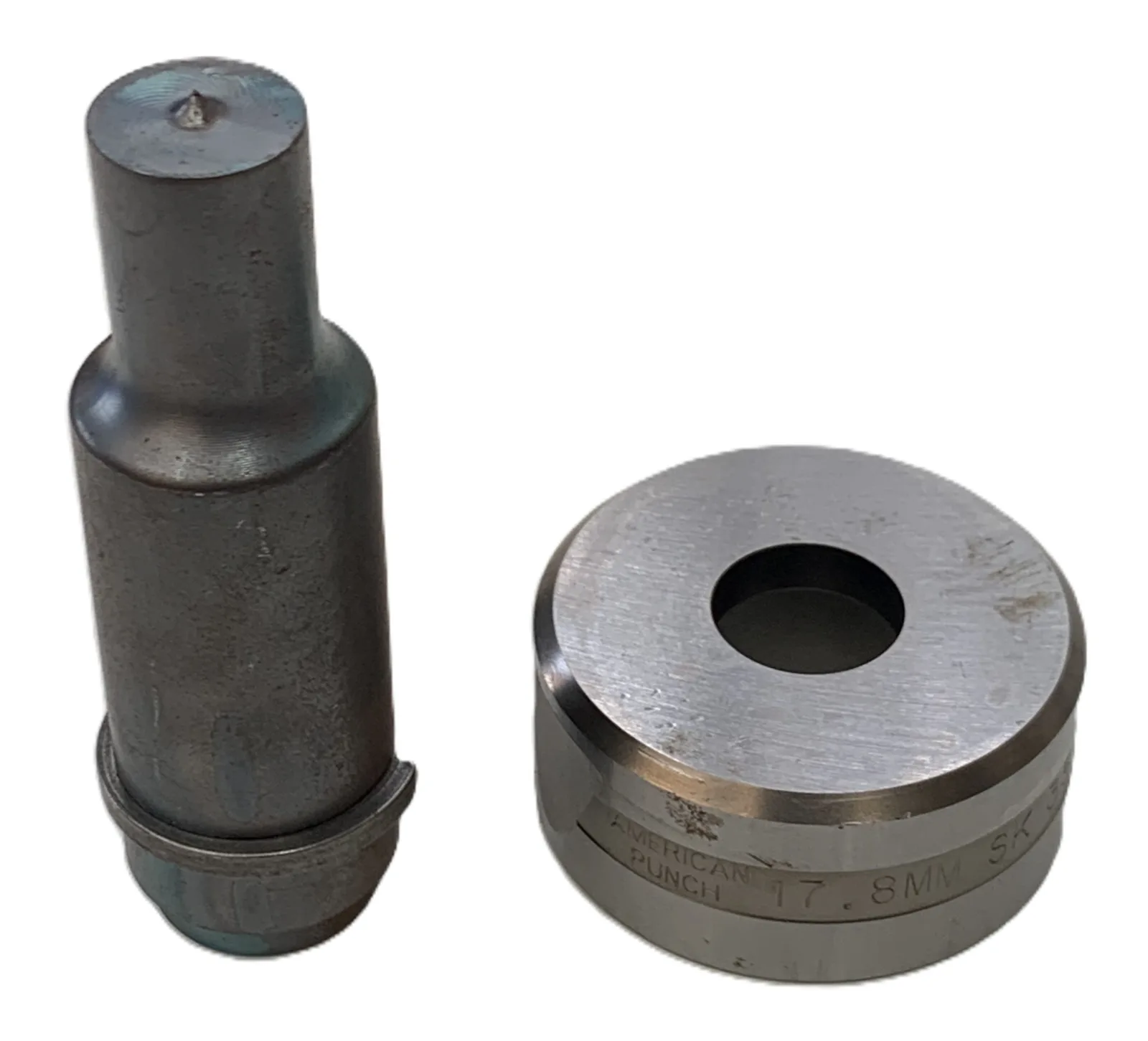

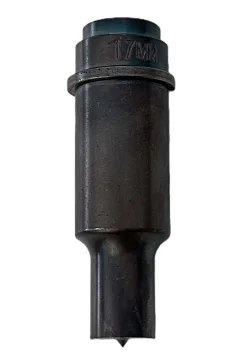

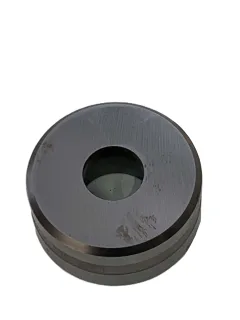

Scotchman 314 style Punch and dies
Round sizes generally available ex stock From 5mm to 32mm in 1mm increments
Some oblong Punch and Die sets available ex stock Please call to enquire
Other styles may be available via indent Please call to enquire
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Scotchman Industries, based in South Dakota, USA, has been manufacturing high-quality hydraulic ironworkers and metal fabrication machines since 1967. Their machines are built for durability and versatility. Combining punching, shearing, notching, and more in one unit. All Scotchman machines are proudly made in the USA and backed by a 3-year parts warranty and lifetime technical support. With models ranging from 45 to 150 tons and a wide range of tooling options, Scotchman is a trusted name in fabrication shops worldwide.

Scotchman Industries delivers a comprehensive line of high-quality punches and dies engineered for their hydraulic ironworkers. Designed, manufactured, and refined in the USA for over five decades Each tool is crafted to exacting standards to deliver remarkable durability, accuracy, and repeatable performance, even in high‑production environments

Features

  • Full range of standard shapes including Round (imperial and metric), round offset, oval/oblong, square, hexagon, picket, trimming and cut‑off shapes, corner turning.
  • Safe, positive alignment. All shaped punches are keyed-fit to your dedicated model for safe, repeatable alignment and minimal wear
  • Standard round Punch and Dies normally stocked from 5mm up to 32mm in 1 mm increments ex Christchurch
  • Some common sized oblong punch and die sets available ex stock.
  • Oblong punch and dies sets can be made to order. The maximum length of the slot on a standard die set is 32mm, however there are options to go bigger on some models.

Also available

  • Scotchman's engineering team can design and build custom punches and dies, from tube punches and mandrel tooling to multi-hole and exotic shapes

FOR MACHINES OTHER THAN SCOTCHMAN, PLEASE SEE THE IDENTIFYING DRAWING ABOVE TO CONFIRM THE STYLE OF PUNCH AND DIE REQUIRED

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Scotchman 314 style Punch and dies
Round sizes generally available ex stock From 5mm to 32mm in 1mm increments
Some oblong Punch and Die sets available ex stock Please call to enquire
Other styles may be available via indent Please call to enquire
