Scotchman 50514-EC Hydraulic Punch & Shearing Machine
c/w Notching station & Laser
POA
P&SH-0-0002 | Prices exclude GST
Product overview
About this machine.
Quality USA made machine complete with 3 year factory warranty
Machine features:
- Proven reliability
- Impossible to overload
- Unique low pressure / low maintenance design
- Incorporated 'Power Bar' for custom options
- Large angle shear capacity

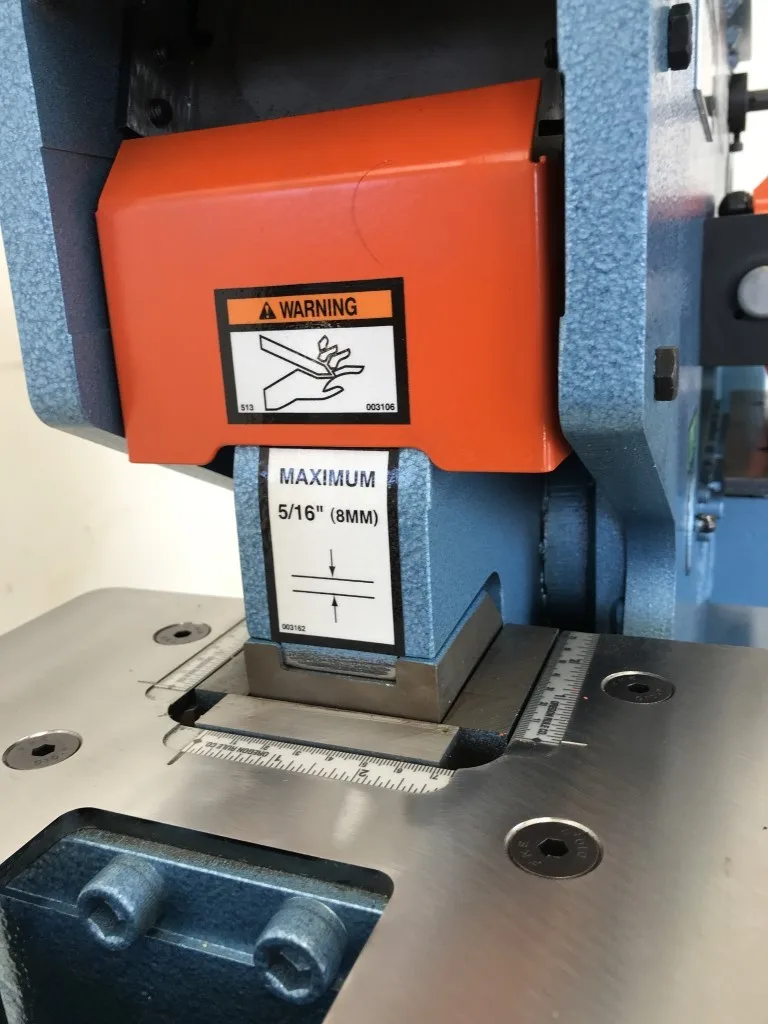

- Now with a convenient rectangular notching station
- 355mm wide shear station

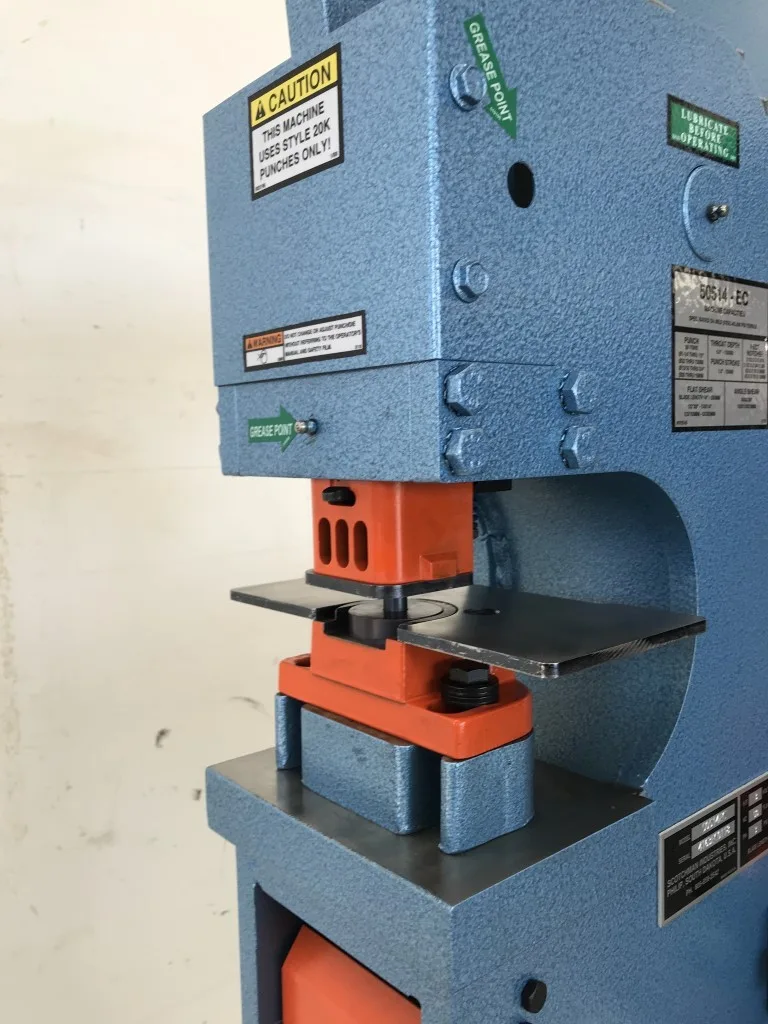

- 13mm Round punch & die set ( 314 style )
- Includes optional laser for the shear line fitted
Optional accessories & tooling:
- Pressbrake attachments
- Pipe notcher attachment
- 90 degree notcher
- Tube shear
- Rod shear
- Picket tool
- Oversize die holder
- Oversize punch table
- Various sizes & shapes of punch & dies
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
50514-EC
Capacity
50 Ton
Punching (diameter x thickness)
32x12mm / 21x18mm
Flat shear (length x thickness)
18x100mm / 200x12mm / 350x6mm
Angle shear (length x thickness)
100 x 100 x 10mm
Throat depth (punching)
150mm
Shearing length
350mm
Rectangular notcher
62 x 75 x 8mm
Motor power

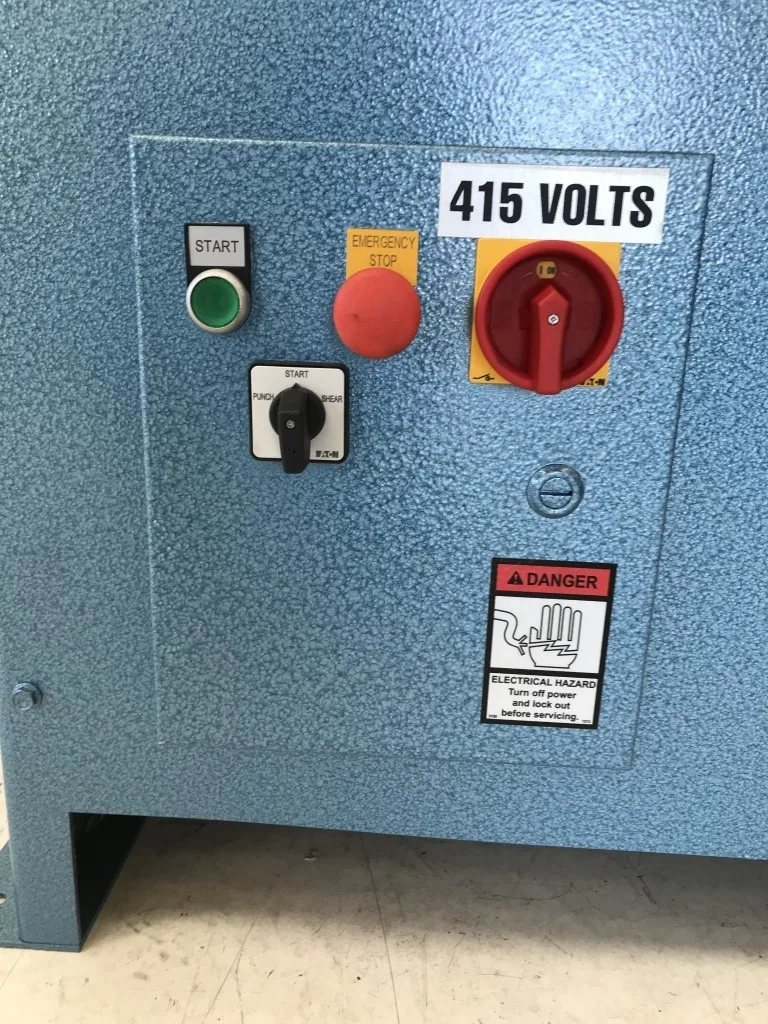

3 HP 3 phase 415v
Weight
580 kg
Dimensions
1200 x 750 x 1500mm
