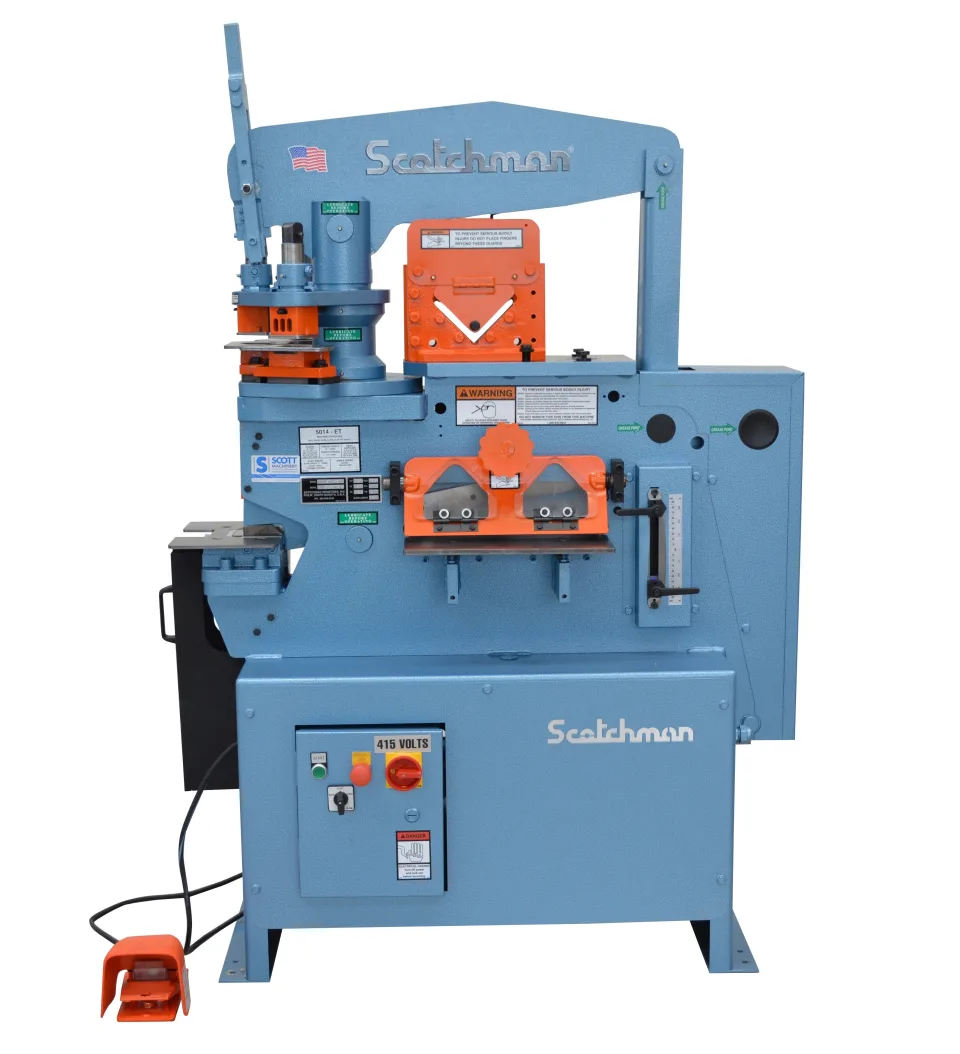

Scotchman 5014-ET Hydraulic Punch & Shearing Machine
POA
P&SH-0-0005 | Prices exclude GST
Product overview
About this machine.
Quality USA made machine complete with 3 year factory warranty
Machine features:

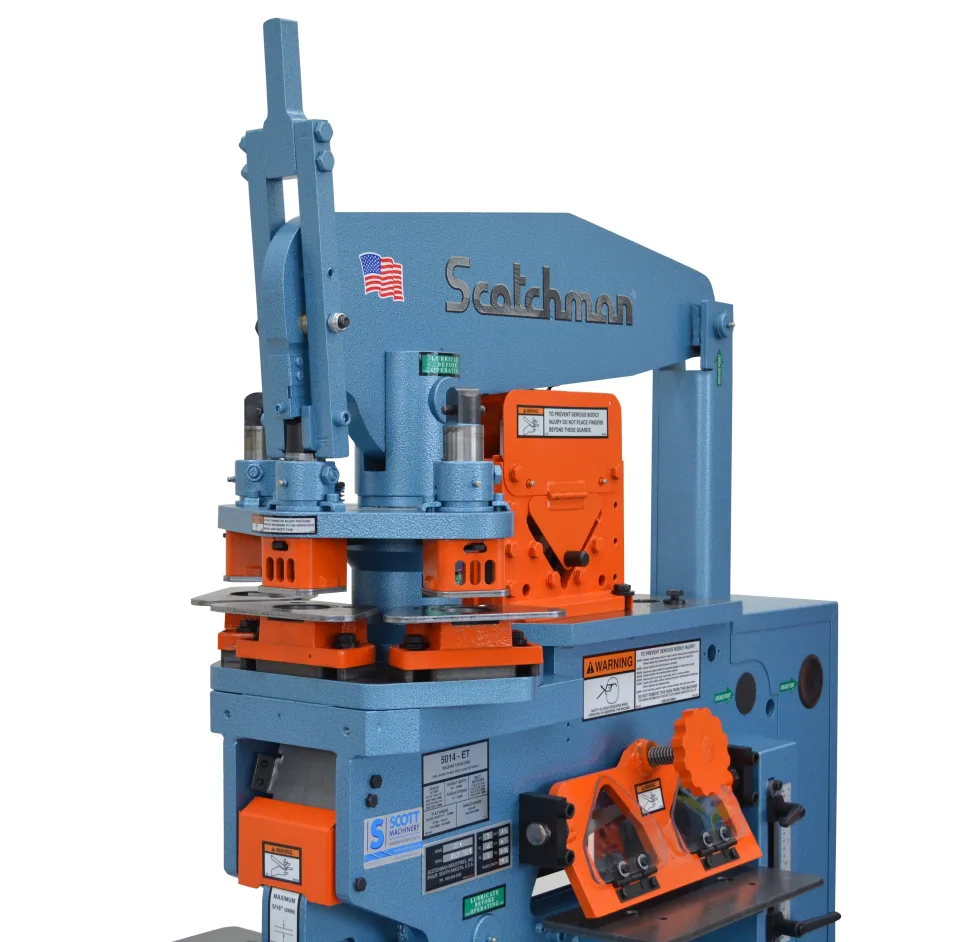

- 3 Station revolving punch turret
- Proven reliability
- Impossible to overload
- Unique low pressure / low maintenance design
- Incorporated 'Power Bar' for custom options

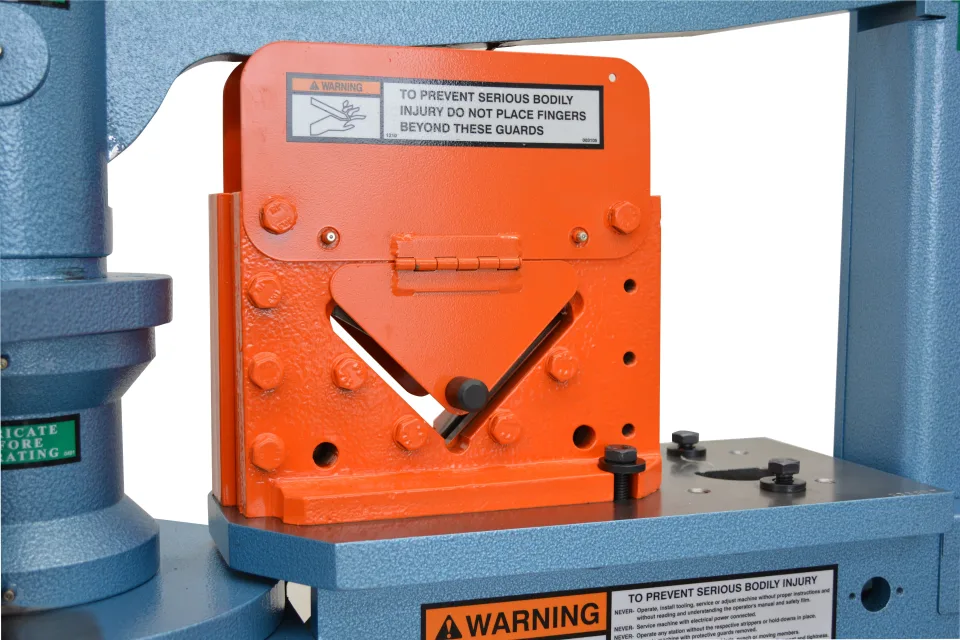

- Built in notcher

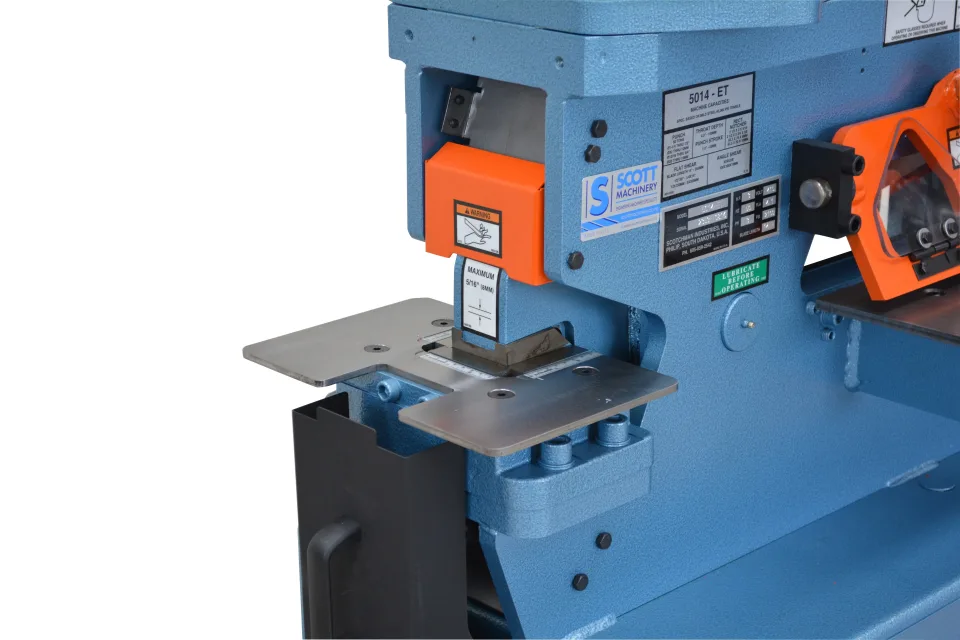

- 355mm wide shear station
- 13mm Round Punch & Die set
Optional accessories & tooling:
- Press brake attachments (6, 8 or 12")
- Pipe notcher attachment
- 90 degree notcher
- Tube shear
- Rod shear
- Picket tool
- Oversize die holder
- Oversize punch table
- Various sizes & shapes of punch & dies
- Electric Back gauge for cut to length.
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model
5014ET
Capacity
50 ton
Punching (diameter x thickness)
32x12mm / 21x18mm
Flat shear (length x thickness)
18x100mm / 200x12mm / 350x6mm
Angle shear (length x thickness)
100 x 100 x 10mm
Throat depth (punching)
100mm
Shearing length
350mm
Rectangular notcher
62 x 75 x 8mm
Motor power
3 HP 3 phase 415v
Weight
717 kg
Dimensions
1220 x 590 x 1780mm
