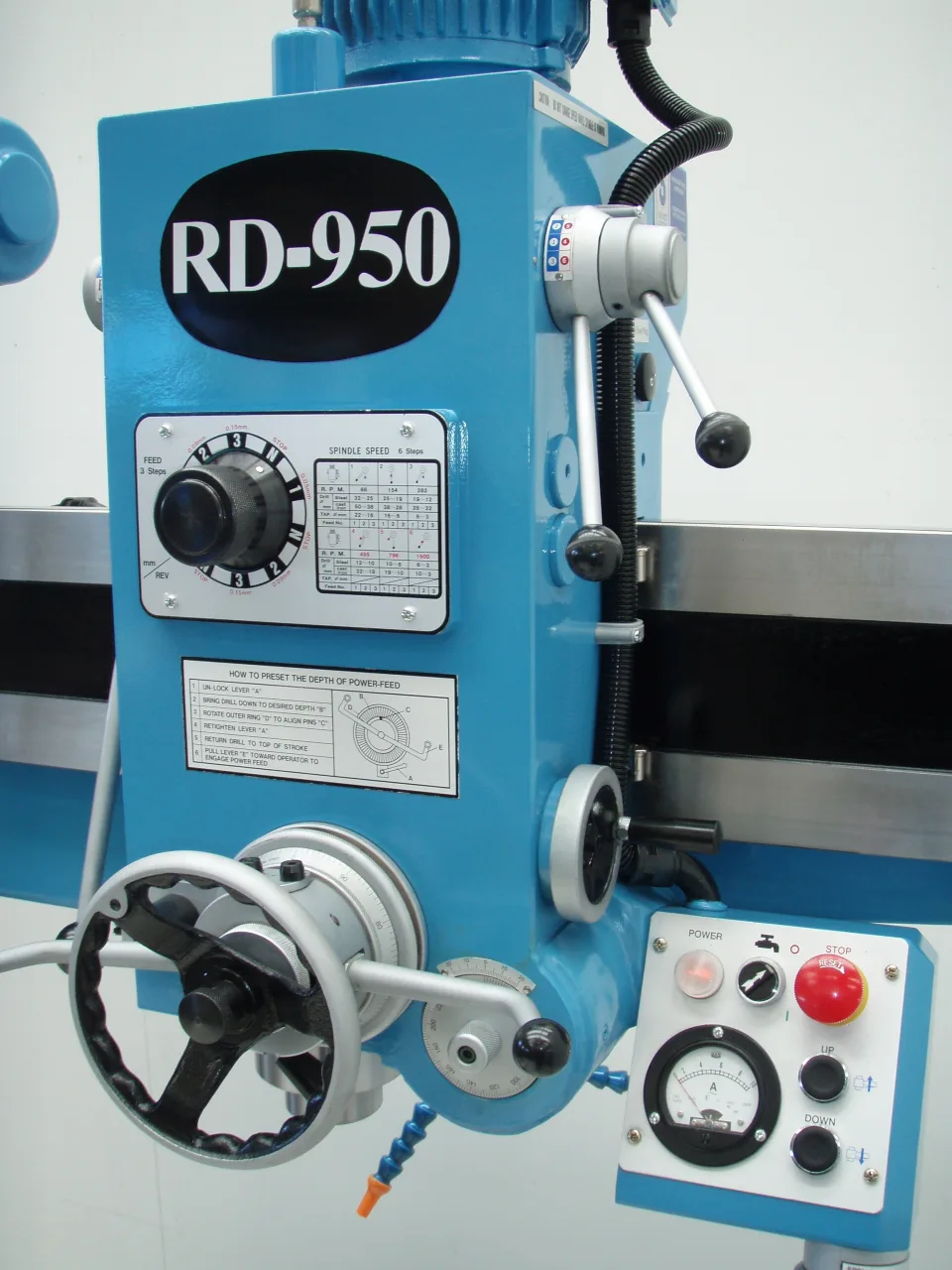

Rong Fu RD-950 Radial Arm Drilling Machine
c/w Box table
POA
DRAD-0-3042 | Prices exclude GST
Product overview
About this machine.
High Quality - Made in Taiwan for 35 years
Quality Taiwanese Manufacturing
- Three phase motor
- Geared Head
- Power feed to quill
- Motorised arm elevation
- Mechanical switching between fwd & rev
- Main spindle has special balancing system
- Auxiliary dial for spindle depth
- Arm is hardened and ground
- Adjustable depth stop
- Heavy duty rigid table
- Emergency stop
Standard Accessories:

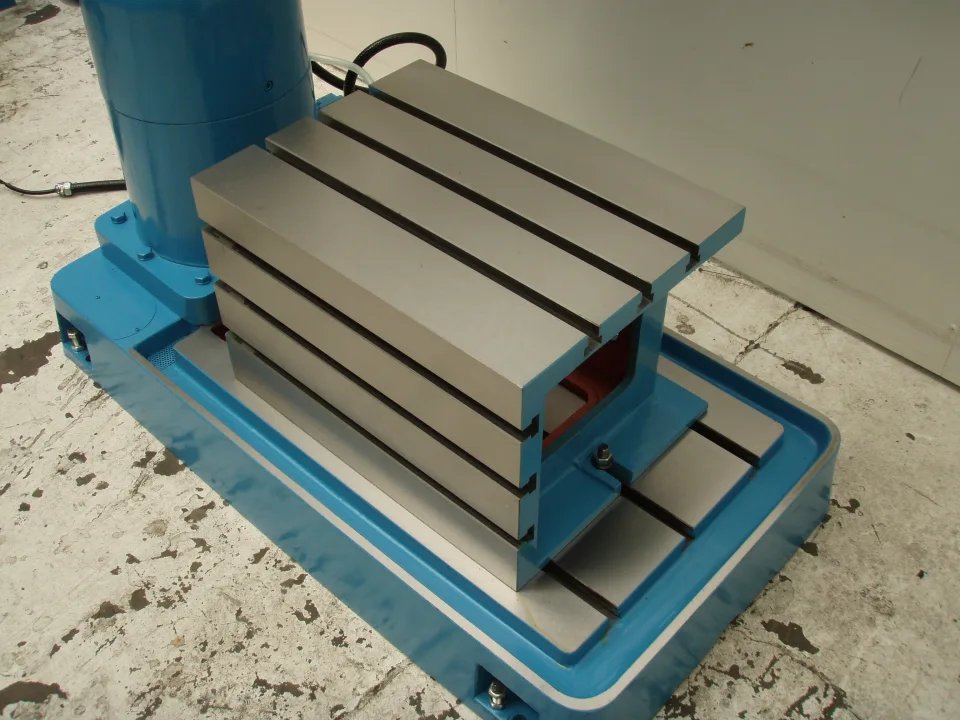

- Box table 600 x 445 x 380mm

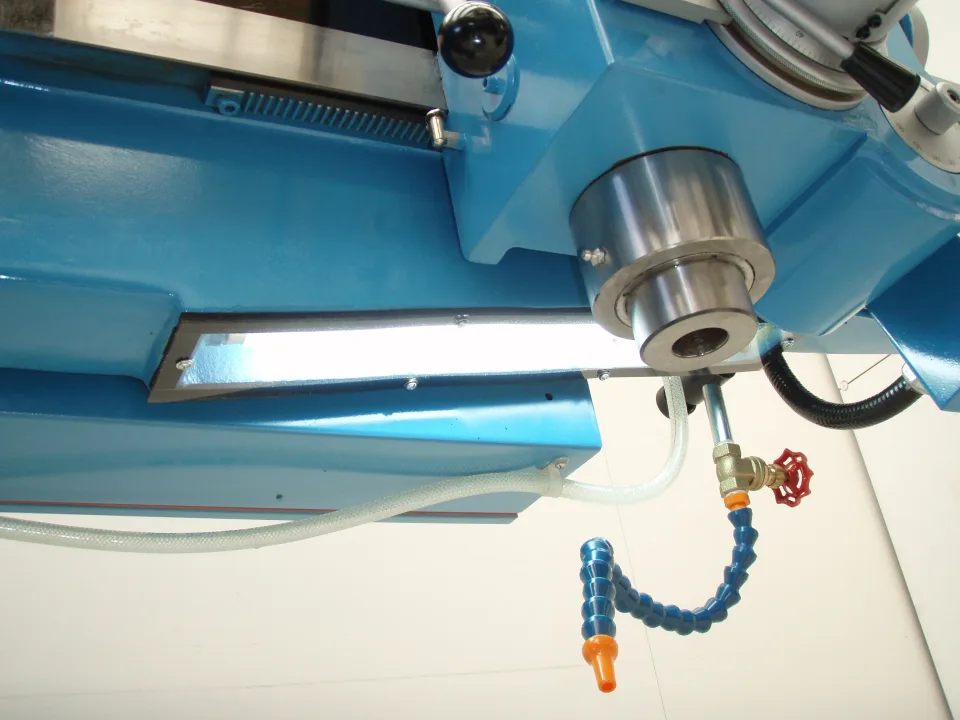

- Coolant
- Work light
- 16mm Keyed drill chuck & arbor
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Drilling capacity
32mm
Tapping capacity
M24
Spindle taper
4MT
Quill travel
220mm
Quill feeds
0.05 / 0.09 / 0.15 mm/rev
Column diameter
210mm
Throat
220 - 950mm
Spindle to base (maximum)
1210mm
Speed range
88 - 1,500 rpm
Number of speeds
6
Motor power
1.5 kW 3 phase
Nett weight
1250 kg
Shipping
3.3 m3 1400 kg
