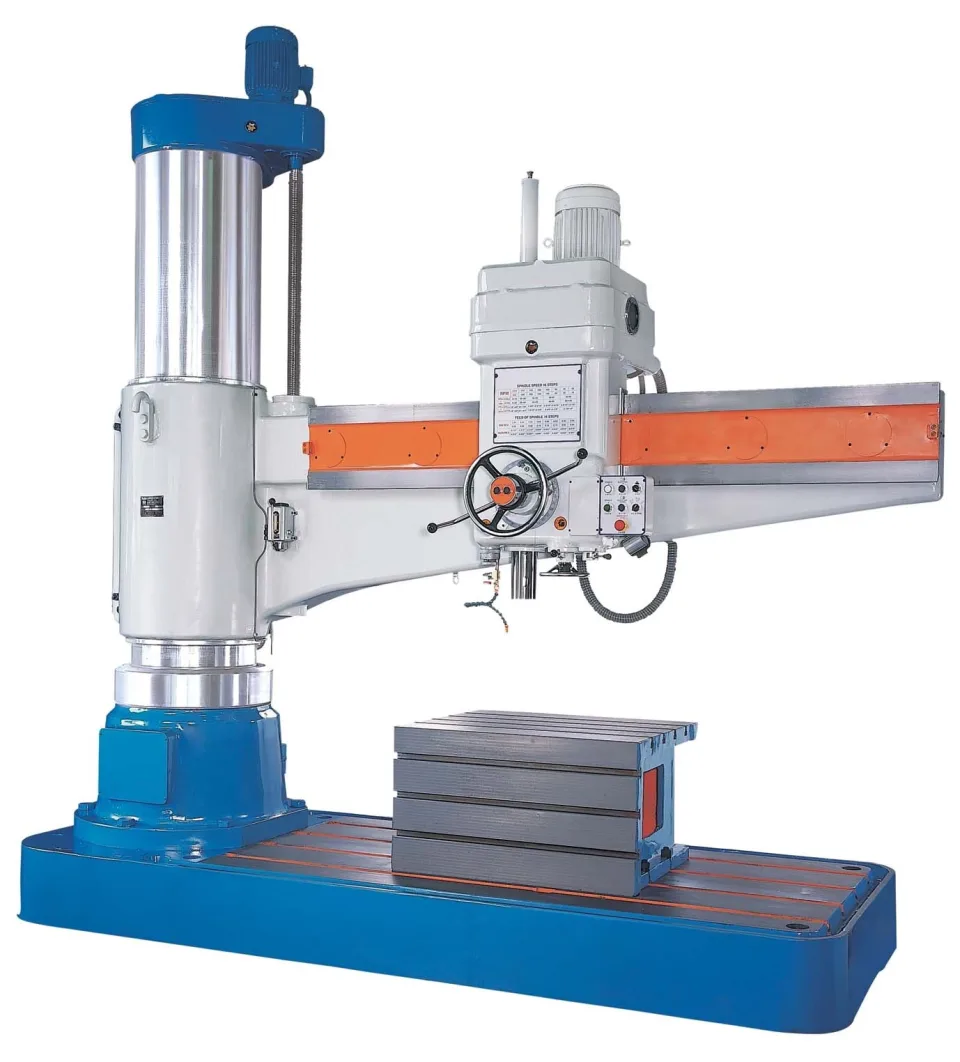

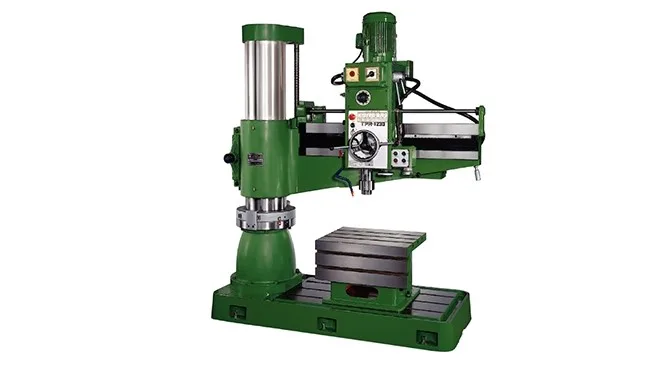

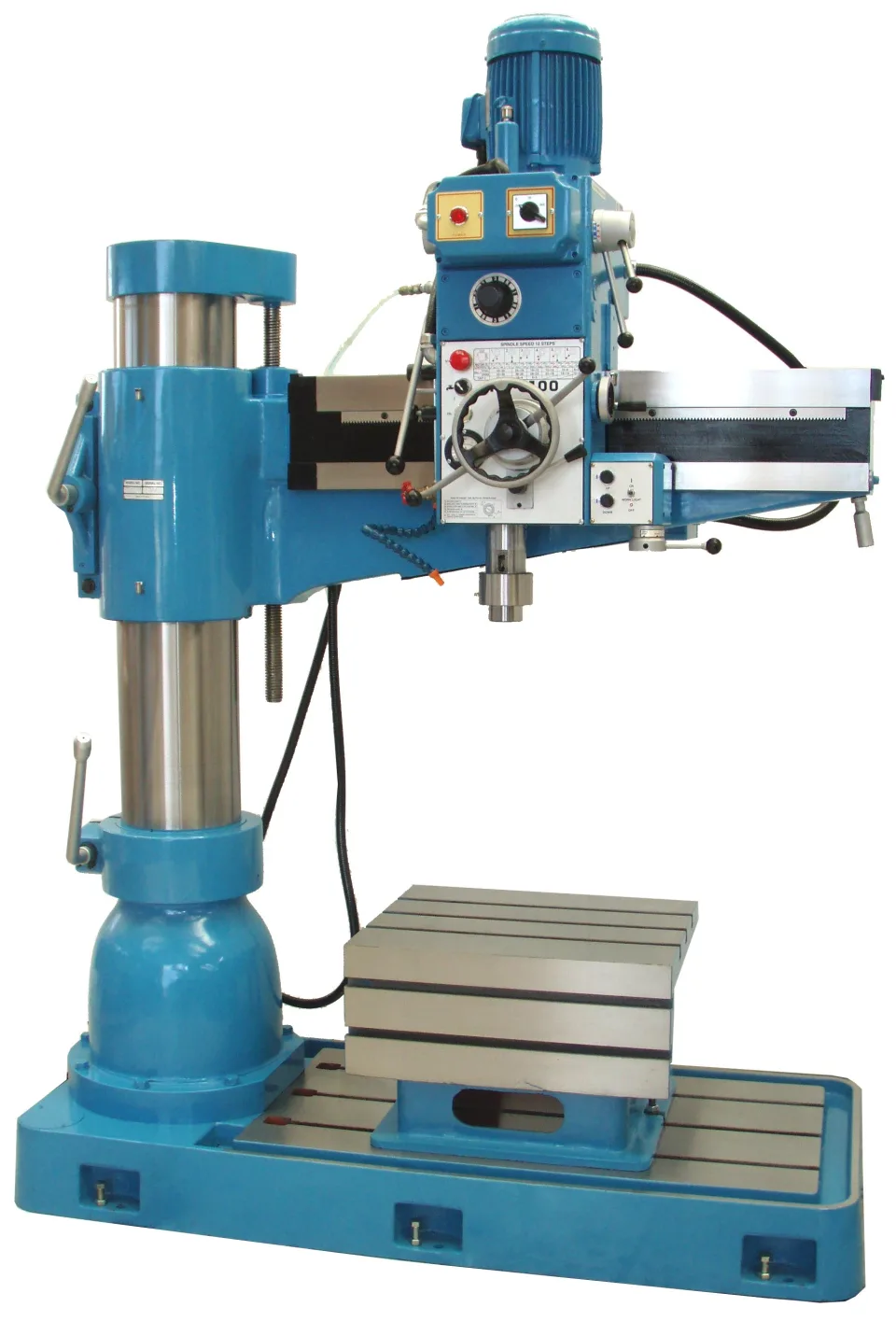

Rong Fu Premium Quality Series Radial Arm Drilling Machines
POA
WEB-HD RADIAL DRILLS RF | Prices exclude GST
Product overview
About this machine.
High Quality - Made in Taiwan for 35 years
Made in Taiwan for over 35 years
- High quality geared head
- Heavy duty column & base
- 3 axis clamping
- Motorised elevation
- Centralised controls
- Some models hydraulic pre-select spindle speeds & quill feeds
- Large quill stroke
- Large box table
- Coolant
- Halogen lamp
- Other models available
Manual Clamping models:
- RD-750
- RD-850
- RD-950
- RD-1100
Electric Clamping model
- RD-1250
Hydraulic clamping models
- RD-1170
- RD-1580
- RD-1600
- RD-2500
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Model | RD-750 | RD-850 | RD-950 | RD-1100 | RD-1170 | RD-1250 | RD-1580 | RD-1600 | RD-2500 |
|---|---|---|---|---|---|---|---|---|---|
| Drilling capacity | 32mm | 32mm | 32mm | 42mm | 42mm | 50mm | 65mm | 50mm | 80mm |
| Spindle taper | MT4 | MT4 | MT4 | MT4 | MT4 | MT5 | MT5 | MT5 | MT6 |
| Spindle centre to column maximum | 750mm | 850mm | 950mm | 1100mm | 1170mm | 1210mm | 1580mm | 1600mm | 2500mm |
| Spindle to table (max) | 1060mm | 1210mm | 1210mm | 1270mm | 1370mm | 1600mm | 1345mm | 1600mm | 2000mm |
| Quill travel | 220mm | 220mm | 220mm | 230mm | 250mm | 270mm | 370mm | 270mm | 450mm |
| Speed range rpm | 88-1500 | 88-1500 | 88-1500 | 44-1500 | 44-1500 | 56-1450 | 40-1920 | 56-1450 | 16-1250 |
| Number of speeds | 6 | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 16 |
| Motor power | 1.5 kW | 1.5 kW | 1.5 kW | 2.1 kW | 2.1 kW | 3.7 kW | 5.6 kW | 3.7 kW | 7.5 kW |
