Polygim PLG-42 CNC Lathe
POA
CNC-0-4200 | Prices exclude GST
Product overview
About this machine.
In addition to excellent products, Poly Gim offer second to none performance with a simplified design that is suitable for mass production.

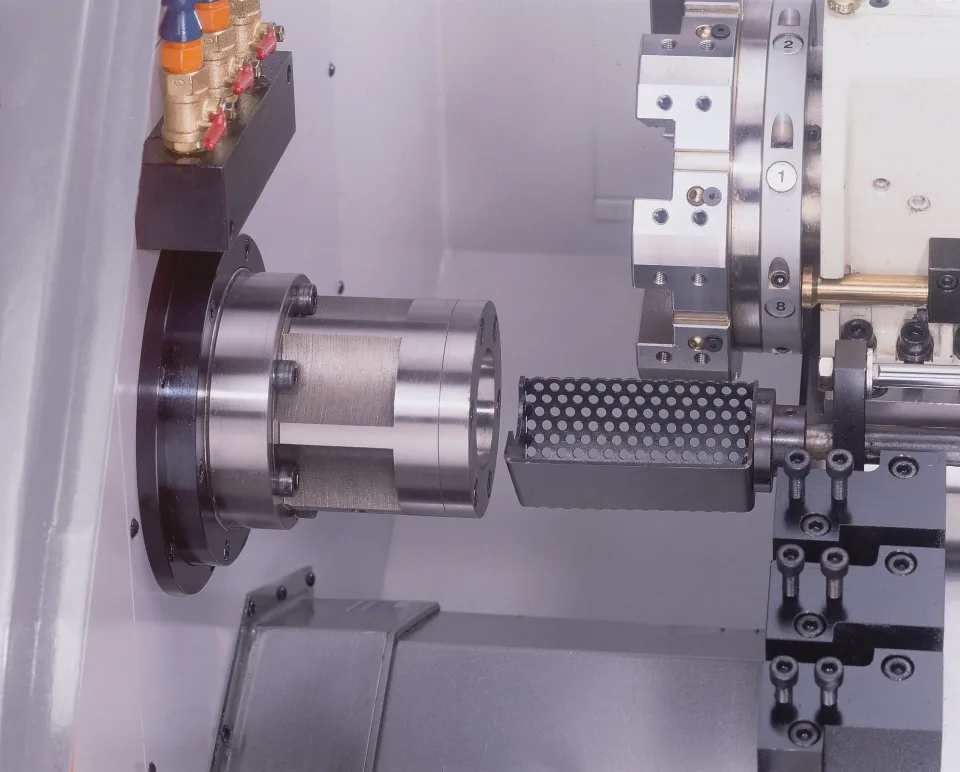

6” 3-jaw hydraulic chuck

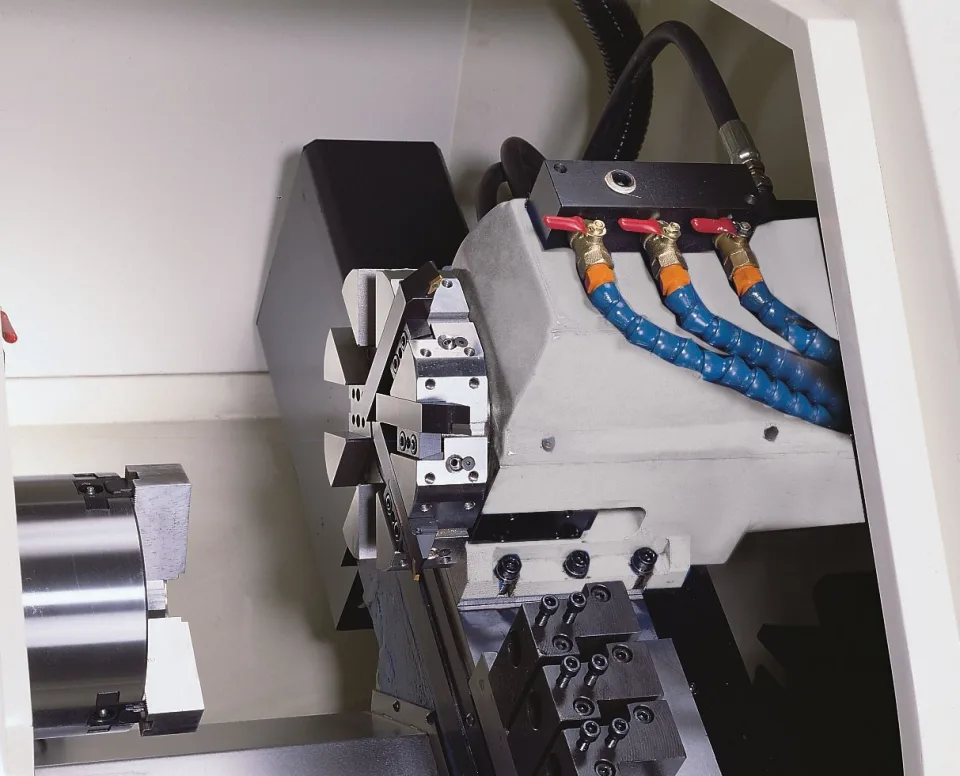

- 8 station hydraulic turret
- Foot chuck switch
- Working light
- Coolant system
- Part catcher
- Chip conveyor + bucket
- Tools & tool box
- Lubrication unit
- Alarm light

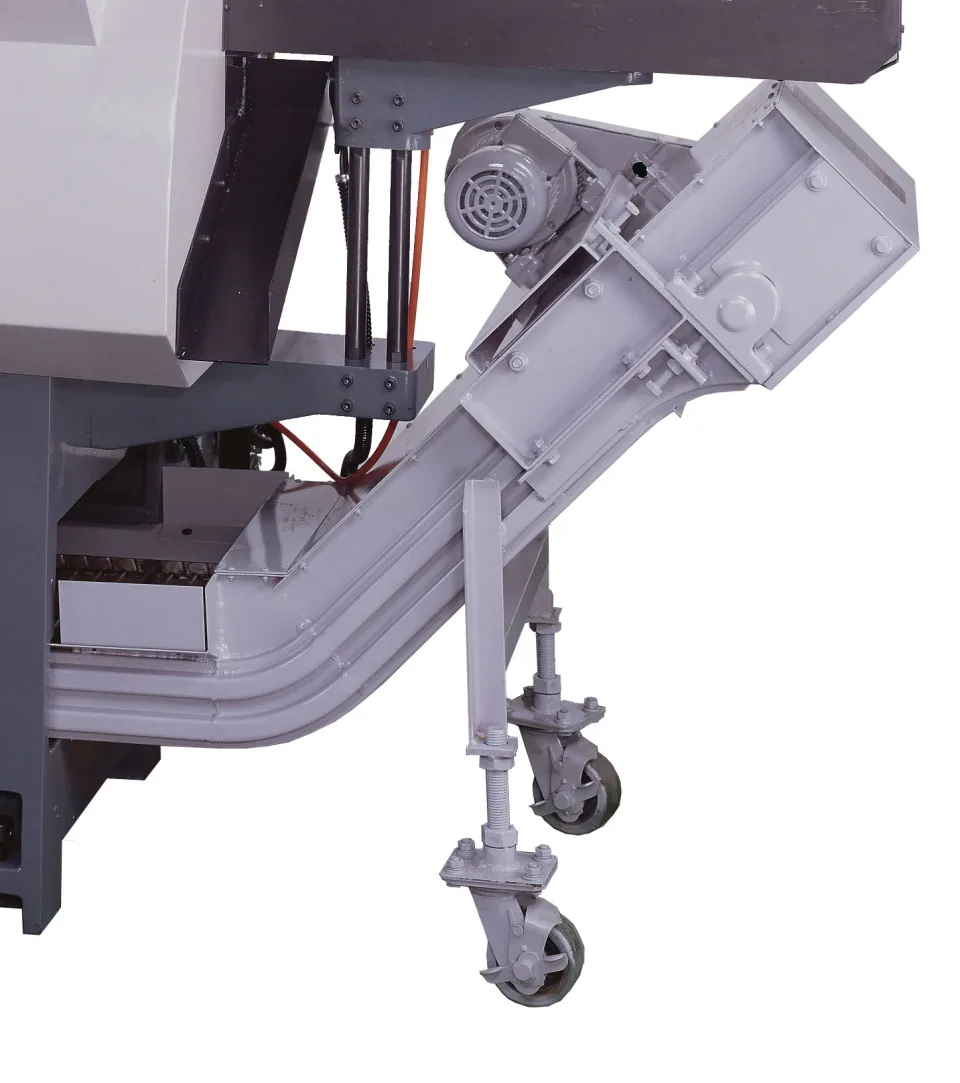

Chain type chip conveyor (not shown in main image)
- RS232 Interface for Data transfer
- Tool path graphic display
NB. Tailstock not available for PLG-42
Optional
- Fedek bar feeder DH-65
- Type 42 collet chuck
- Type 42 collets 12 - 42mm (31pcs)
Published data
Specifications
Use these to shortlist. We’ll confirm the specification and configuration against the application.
Poly Gim
PLG-42
Max turning diameter
130mm
Max turning length
160mm
Max bar feeding diameter
42mm
Spindle bore
55mm
Spindle speed
100 - 4000rpm
Spindle
A2-5
Motor
5.5kw
Tooling
8 station hydraulic turret + Gang type
Controller
Fanuc Oi-Mate
Machine size
2440 x 1260 x 1830mm
Weight
1780kg
