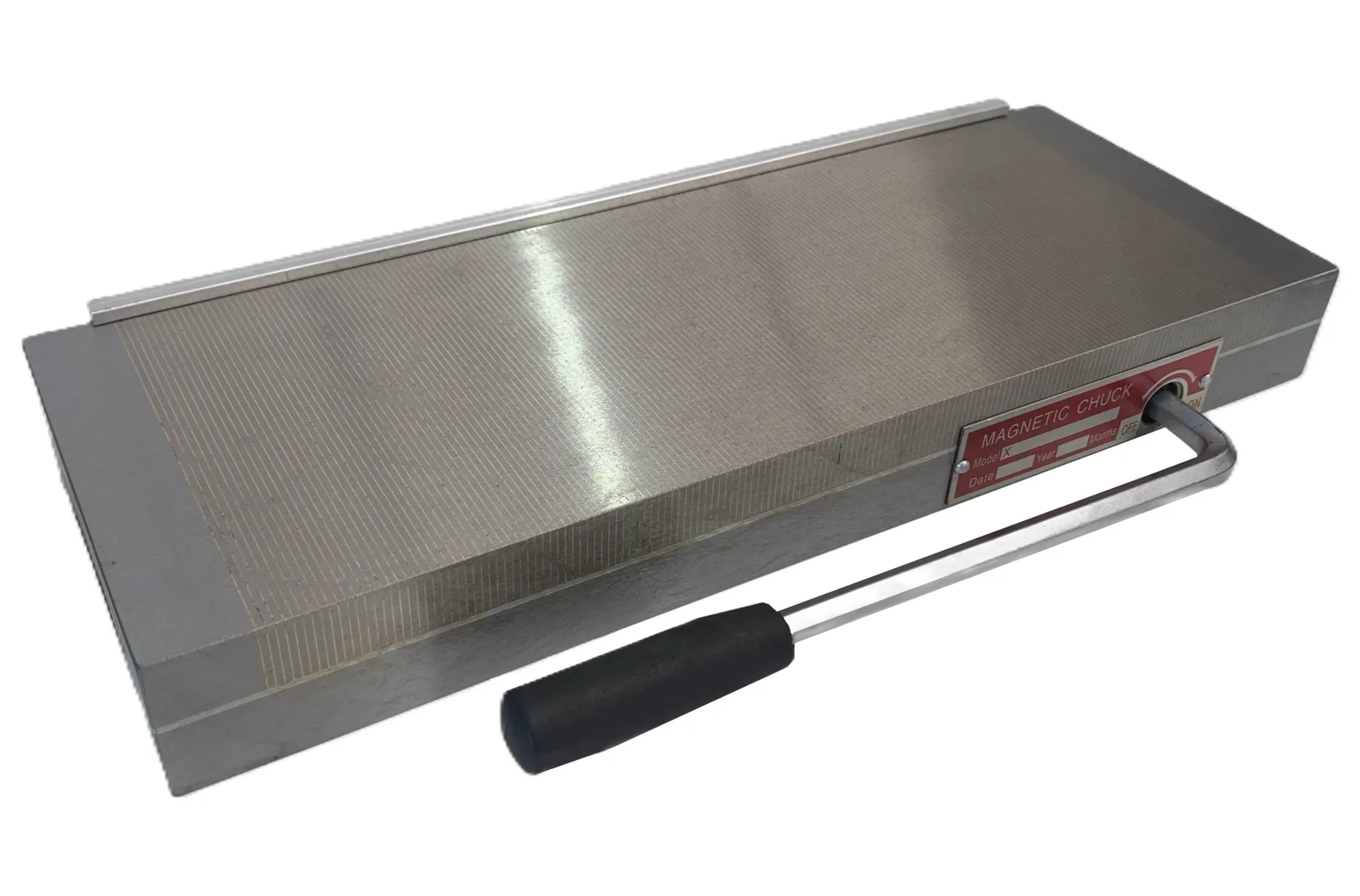

Optimum Permanent Magnetic Chucks

Name: Optimum Permanent Magnetic Chucks
Brand: Optimum
SKU: WEB-MAG CHUCKS

Suitable for surface grinding machines Rectangular & round

POA Configured to suit your application. Talk to us for a price.

NZ Prepared, installed and supported nationwide by Scott Machinery.

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.

Optimum permanent magnetic chucks provide strong, consistent clamping force without the need for continuous power supply. Ideal for grinding, milling, and EDM applications, these chucks ensure high holding accuracy, reduced workpiece distortion, and easy operation via a simple on/off control. Built with durable, wear resistant materials, they deliver long service life and dependable performance

Features:

High strength permanent magnets for secure workholding without continuous power
Uniform clamping force reduces workpiece distortion
Precision ground top plate ensures high accuracy
Wear resistant construction for long service life
Simple on/off control for quick setup and release
Suitable for grinding, milling, and EDM applications
Low-profile design maximises machine clearance
Clamping lugs provided
Maintenance-free magnetic system
Magnetic force of 14 kgf /cm2

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.

Specifications for Optimum Permanent Magnetic Chucks
Optimum	Width	Length	Approx Weight	Price Excl GST
Rectangular
410	100	250	10	POA
412	100	300	12	POA
510	125	250	13	POA
612	150	300	17	POA
616	150	400		POA
618	150	450	25	$1,195.00
814	200	350	26	POA
816	200	400	30	POA
818	200	450	34	POA
820	200	500	38	POA
824	200	600		$1,750.00
Round
200mm			13	$780.00
250mm			20	$890.00
300mm				POA
