Optimum Permanent Magnetic Chucks
Product overview
About this machine.
Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.

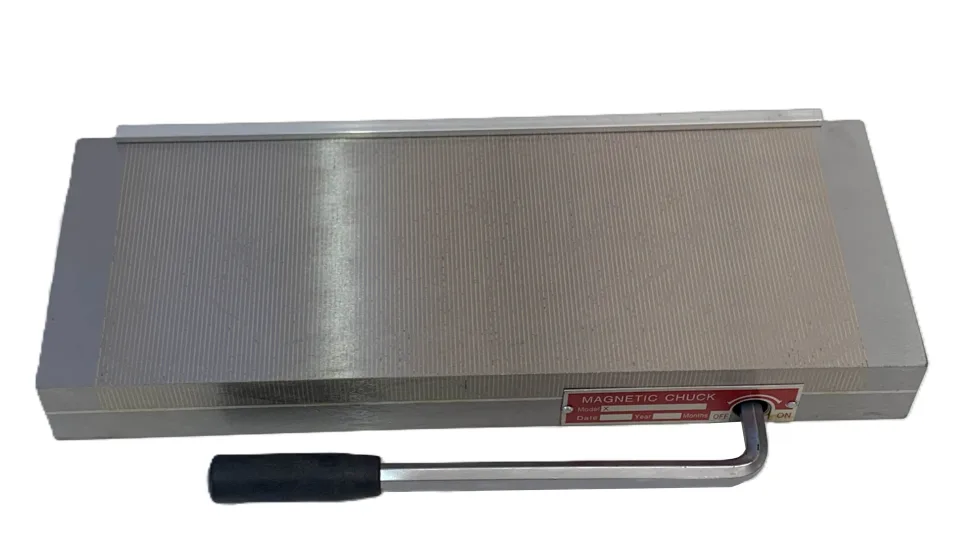

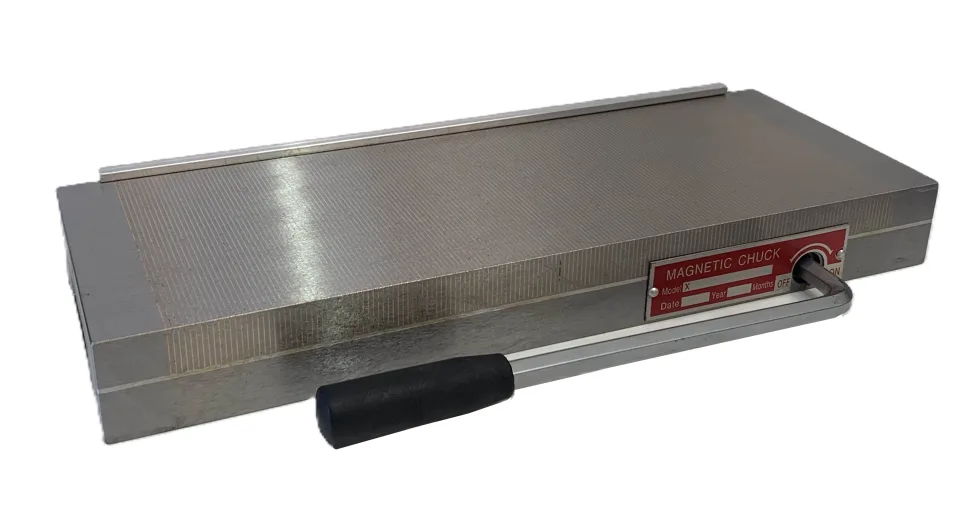

Optimum permanent magnetic chucks provide strong, consistent clamping force without the need for continuous power supply. Ideal for grinding, milling, and EDM applications, these chucks ensure high holding accuracy, reduced workpiece distortion, and easy operation via a simple on/off control. Built with durable, wear resistant materials, they deliver long service life and dependable performance
Features:
- High strength permanent magnets for secure workholding without continuous power
- Uniform clamping force reduces workpiece distortion
- Precision ground top plate ensures high accuracy
- Wear resistant construction for long service life
- Simple on/off control for quick setup and release
- Suitable for grinding, milling, and EDM applications
- Low-profile design maximises machine clearance
- Clamping lugs provided
- Maintenance-free magnetic system
- Magnetic force of 14 kgf /cm2
Published data
Specifications
Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Optimum | Width | Length | Approx Weight | Price Excl GST |
|---|---|---|---|---|
| Rectangular | ||||
| 410 | 100 | 250 | 10 | POA |
| 412 | 100 | 300 | 12 | POA |
| 510 | 125 | 250 | 13 | POA |
| 612 | 150 | 300 | 17 | POA |
| 616 | 150 | 400 | POA | |
| 618 | 150 | 450 | 25 | $1,195.00 |
| 814 | 200 | 350 | 26 | POA |
| 816 | 200 | 400 | 30 | POA |
| 818 | 200 | 450 | 34 | POA |
| 820 | 200 | 500 | 38 | POA |
| 824 | 200 | 600 | $1,750.00 | |

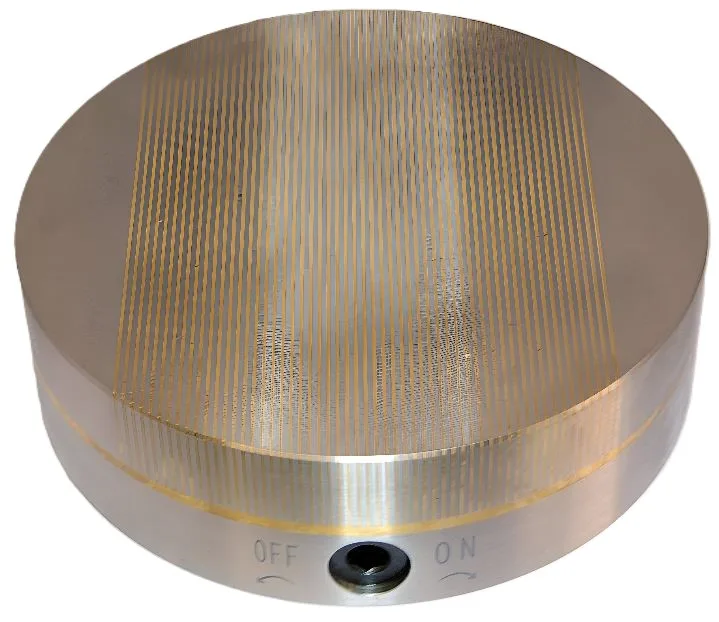

| Round | ||||
| 200mm | 13 | $780.00 | ||
| 250mm | 20 | $890.00 | ||
| 300mm | POA | |||
