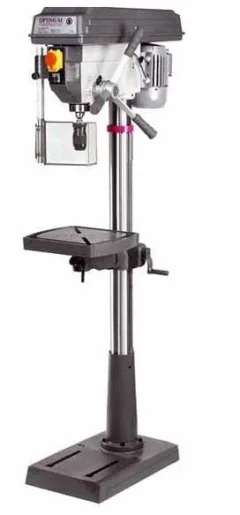

Optimum B26PRO Belt Drive Drilling Machine

Name: Optimum B26PRO Belt Drive Drilling Machine – Pedestal type
Brand: Optimum
SKU: DBLT-0-2403

Belt Drive. Pedestal Mount. 3 Morse Taper. 25mm Drilling Capacity. 750W Single Phase.

$830 + GST Available from Auckland branch Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Optimum B26 Pro

Drilling capacity (max in mild steel) 25mm

Continuous drilling capacity 20mm

Spindle taper 3MT

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.

The Optimum B26PRO pedestal drill is a powerful and precision engineered floor standing drill press, ideal for serious workshops, maintenance departments, and industrial environments. Featuring a robust belt driven system and high torque motor, this machine delivers smooth and quiet operation with excellent drilling performance across various materials. Built to German design standards, the B26PRO offers outstanding accuracy, rigidity, and user friendly functionality.

Features:

Belt drive with 12 speed range (200-2,440 rpm) smooth, performance for various materials
Drilling capacity up to 25mm in mild steel (maximum) and 20mm continuous
3MT spindle taper
Hardened and ground spindle ensures concentric accuracy and low run-out
Large 330mm x 290mm table with diagonal 14mm T slots, rotatable 360 degree, and tilting surface for versatile setups
80mm spindle stroke and 215mm throat depth for handling larger workpieces
Integrated depth stop with millimeter scale, spindle ejection via taper drift, and chuck guard with microswitch.
Robustly built thick-walled cast-iron column (80mm diameter), and total weight  82kg for stable operation
