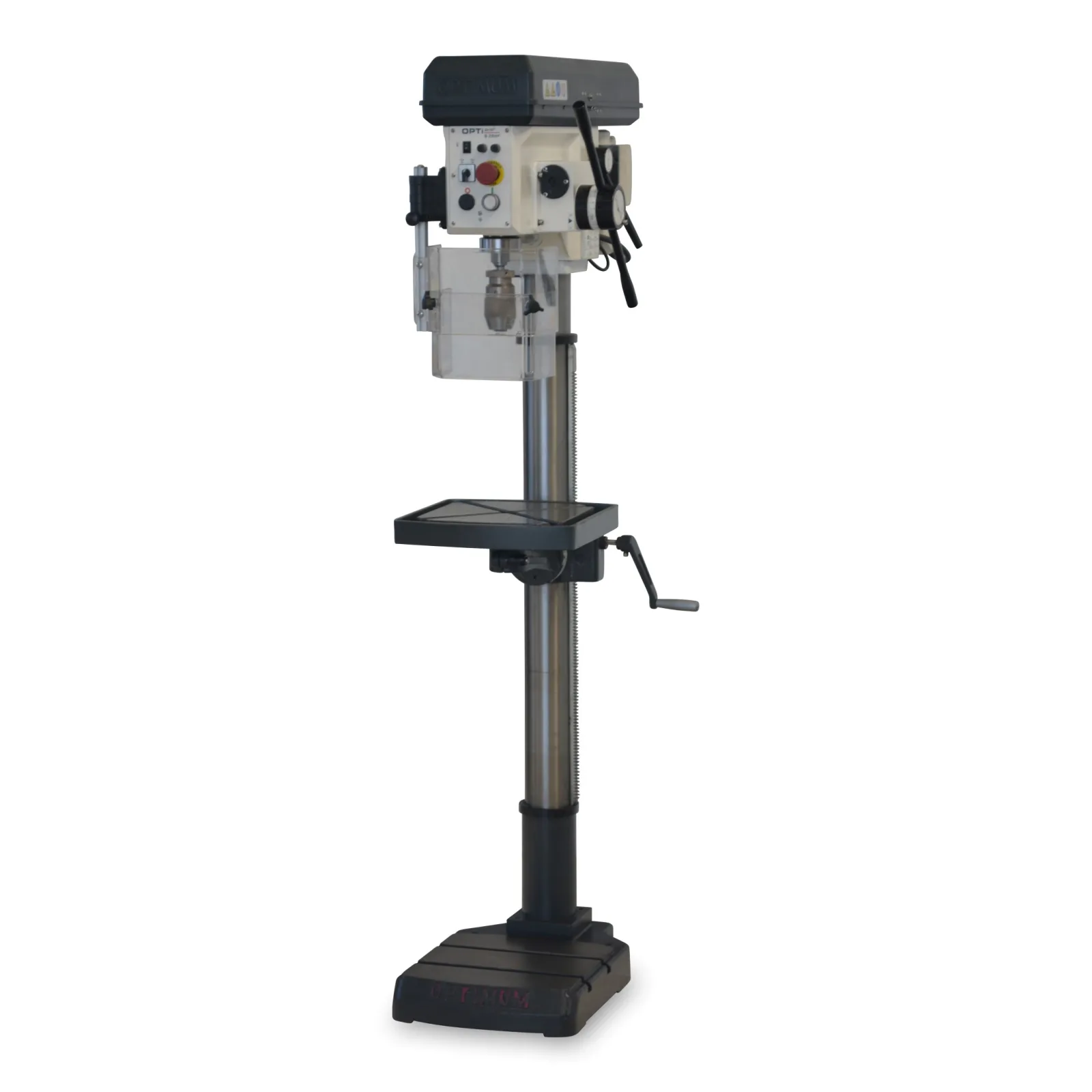

OPTIMUM B-28HF Belt Drive Drilling Machine

Name: OPTIMUM B-28HF Belt Drive Drilling Machine – Pedestal type, power feed
Brand: OPTIMUM
SKU: DBLT-0-2406

Belt Drive. Pedestal Mount. 3 Morse Taper. 28mm Drilling Capacity. 850w Single Phase. Power Feed.

$2,999.00 Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Optimum B28HF

Drilling capacity (max in mild steel) 28mm

Continuous drilling capacity 24mm

Spindle taper 3MT

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.

The Optimum B28HF is a premium grade, pedestal drill designed for continuous professional use in workshops, industrial facilities, and training environments. Featuring a high torque motor, power feed system and smooth running belt drive, the B28HF delivers quiet, reliable performance across a wide range of materials. Built to exacting German standards, this machine offers exceptional drilling capacity, superior spindle precision, and operator focused features for safe and efficient operation. With a strong frame and large worktable, the B28HF is ideal for users requiring consistent power, accuracy, and durability.

Features:

Belt drive with 12 speed range (145-3,075 rpm) smooth, performance for various materials
Drilling capacity up to 28mm in mild steel (maximum) and 24mm continuous
3MT spindle taper
Hardened and ground spindle ensures concentric accuracy and low run-out
Large 330mm x 330mm table with diagonal 14mm T slots, rotatable 360 degree, and tilting surface for versatile setups
107mm spindle stroke and 200mm throat depth for handling larger workpieces

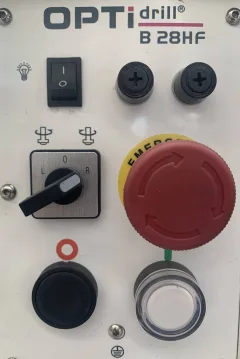

Integrated depth stop with millimeter scale, spindle ejection mechanism, chuck guard with microswitch, and built-in LED lamp
