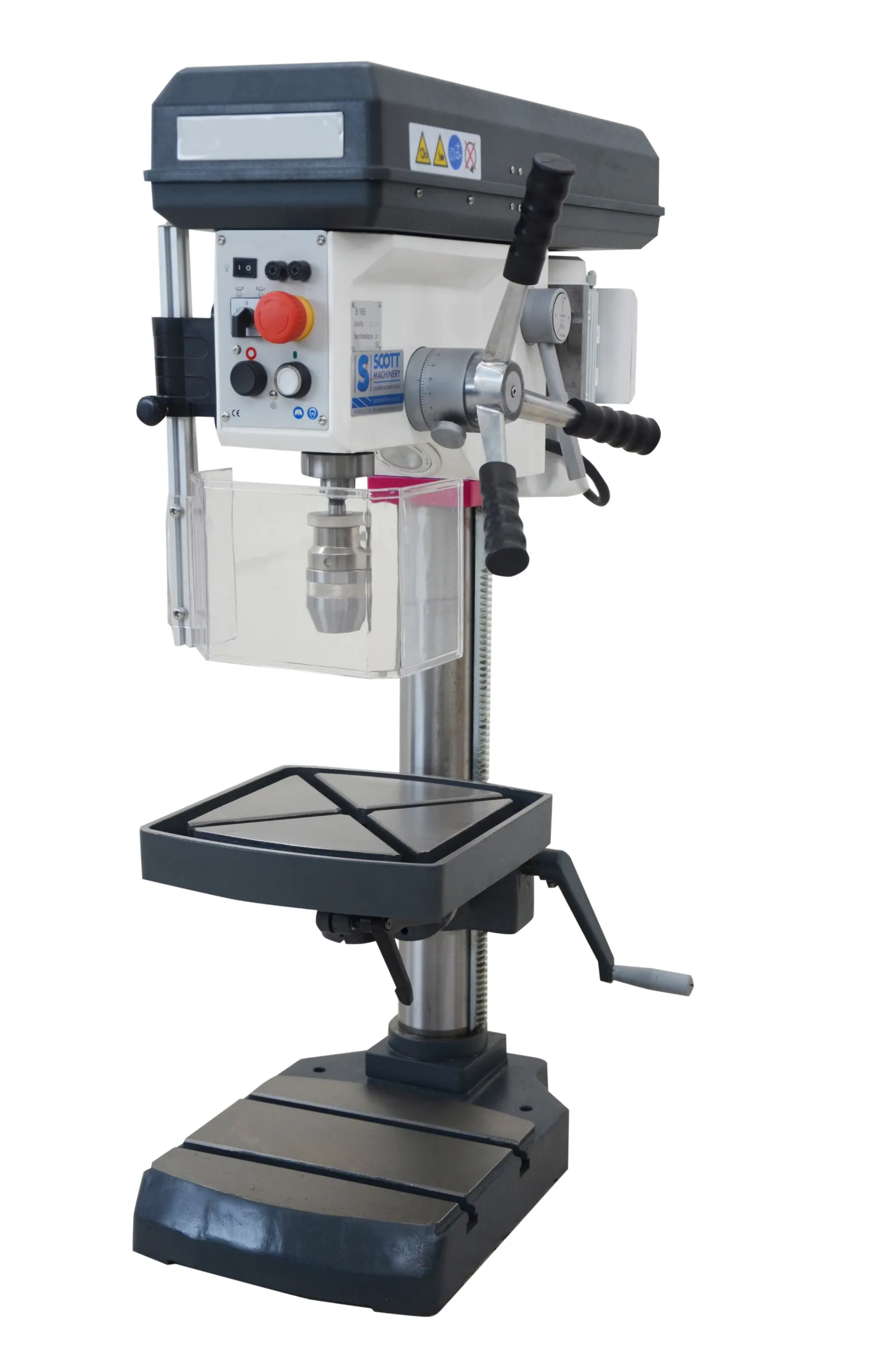

OPTIMUM B24H Belt Drive Drilling Machine

Name: OPTIMUM B24H Belt Drive Drilling Machine – Bench mount
Brand: OPTIMUM
SKU: DBLT-0-2402

Belt Drive. Bench Mount. 2 Morse Taper. 20mm Drilling Capacity. 850w Single phase.

$2,350.00 Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Drilling capacity (max in mild steel) 20mm

Continuous drilling capacity 16mm

Spindle taper 2MT

Throat 165mm

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.

The Optimum B24H is a precision-engineered bench mount drill designed for versatility in workshops, maintenance departments, and educational settings. Featuring a robust construction with a high performance 2 speed motor and quiet belt drive system, the B24H offers smooth operation and long term reliability. With a maximum drilling capacity of 20 mm in steel and a sturdy cast iron base for stability, this machine delivers professional grade performance in a compact footprint.

Features:

Belt drive with 7 speed range (350-4,000 rpm) smooth, performance for various materials
Drilling capacity up to 20 mm in mild steel (maximum) 16mm recommended continuous
2MT spindle taper
Hardened and ground spindle ensures concentric accuracy and low run-out
Large 280 x 300 mm table with diagonal 14 mm T slots, rotatable 360 degree, and tilting surface for versatile setups
80 mm spindle stroke and 190 mm throat depth for handling larger workpieces
Integrated depth stop with millimeter scale, chuck guard with microswitch, and built-in LED lamp
Robustly built thick-walled cast-iron column (80mm diameter)
