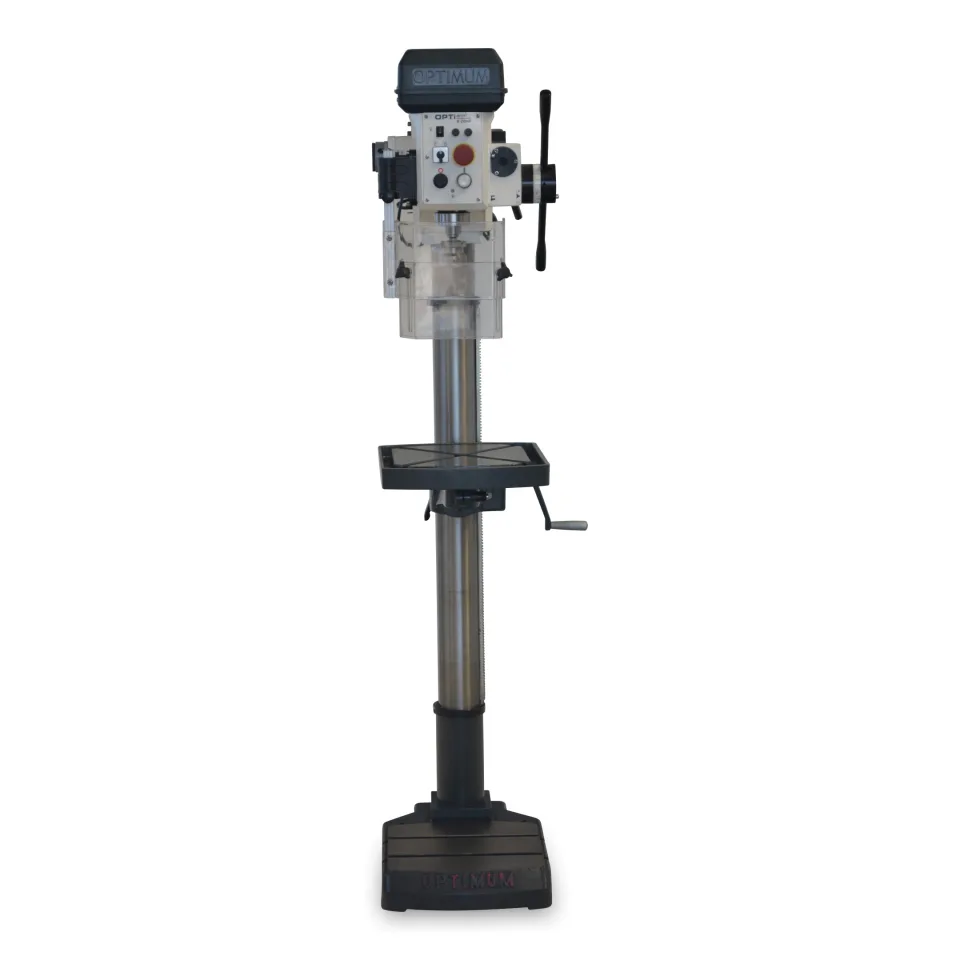

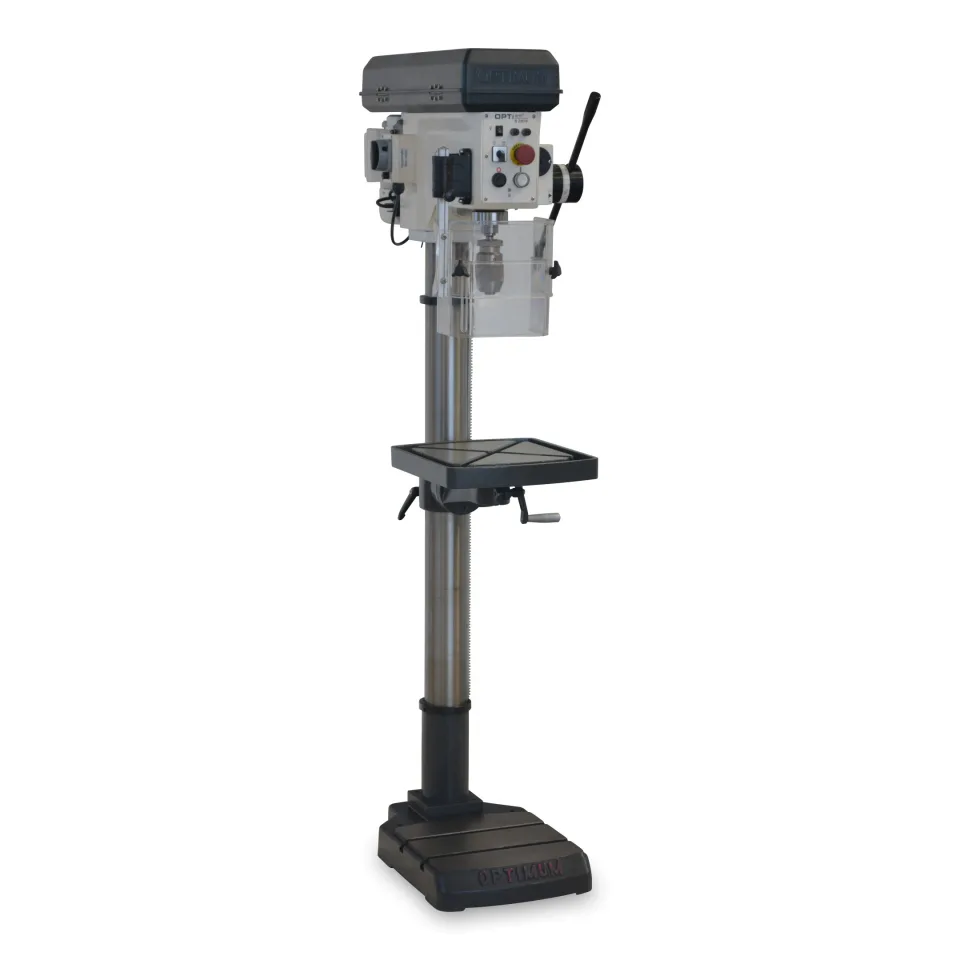

OPTIMUM B-28HF Belt Drive Drilling Machine
Pedestal type, power feed
Product overview
About this machine.
Optimum Maschinen is a respected German company known for manufacturing high-quality machine tools built to strict European standards. Since its founding in 2003, Optimum has become a trusted name in the metalworking industry, offering a wide range of equipment including metal lathes, milling machines, drilling machines, and grinding tools. Designed in Germany and engineered for precision, reliability, and durability, Optimum machines are used across workshops, training centres, and industrial environments throughout Europe and beyond. Their products are developed with a strong emphasis on innovation, safety, and compliance with European CE regulations, ensuring exceptional performance and long service life.
The Optimum B28HF is a premium grade, pedestal drill designed for continuous professional use in workshops, industrial facilities, and training environments. Featuring a high torque motor, power feed system and smooth running belt drive, the B28HF delivers quiet, reliable performance across a wide range of materials. Built to exacting German standards, this machine offers exceptional drilling capacity, superior spindle precision, and operator focused features for safe and efficient operation. With a strong frame and large worktable, the B28HF is ideal for users requiring consistent power, accuracy, and durability.
Features:
- Belt drive with 12 speed range (145-3,075 rpm) smooth, performance for various materials
- Drilling capacity up to 28mm in mild steel (maximum) and 24mm continuous
- 3MT spindle taper
- Hardened and ground spindle ensures concentric accuracy and low run-out
- Large 330mm x 330mm table with diagonal 14mm T slots, rotatable 360 degree, and tilting surface for versatile setups
- 107mm spindle stroke and 200mm throat depth for handling larger workpieces

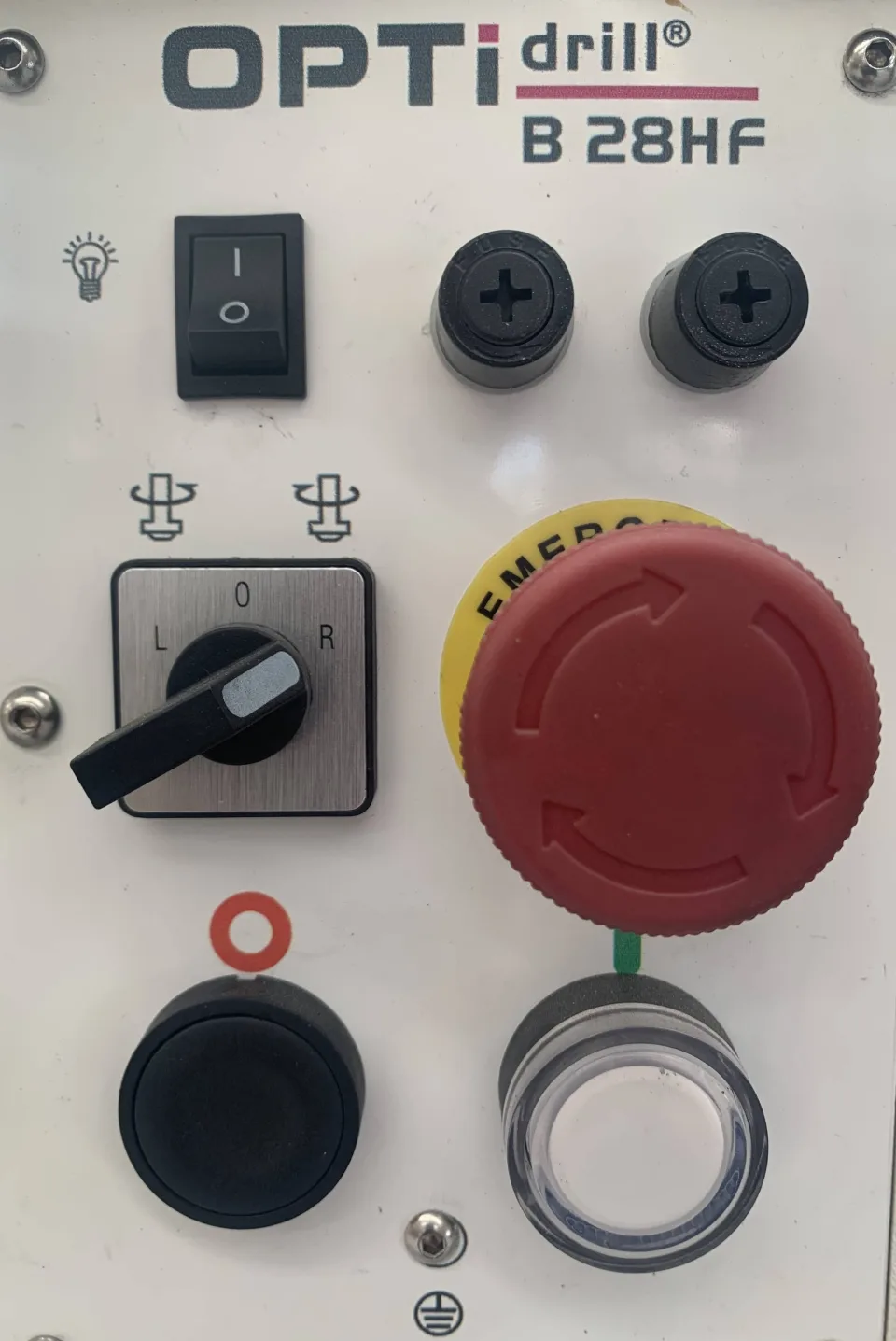

- Integrated depth stop with millimeter scale, spindle ejection mechanism, chuck guard with microswitch, and built-in LED lamp
Standard accessories:
- 16mm Keyless drill chuck & arbor
- Two 12 x 14 "tee" nuts to suit table and pedestal
Safety Features:
- Latching Emergency stop separate from the on / off buttons
- Zero voltage
- Drill chuck safety shield with interlocked microswitch
- Interlock switch on the V belt cover
- Main isolation switch with lockout
- CE Conformity
