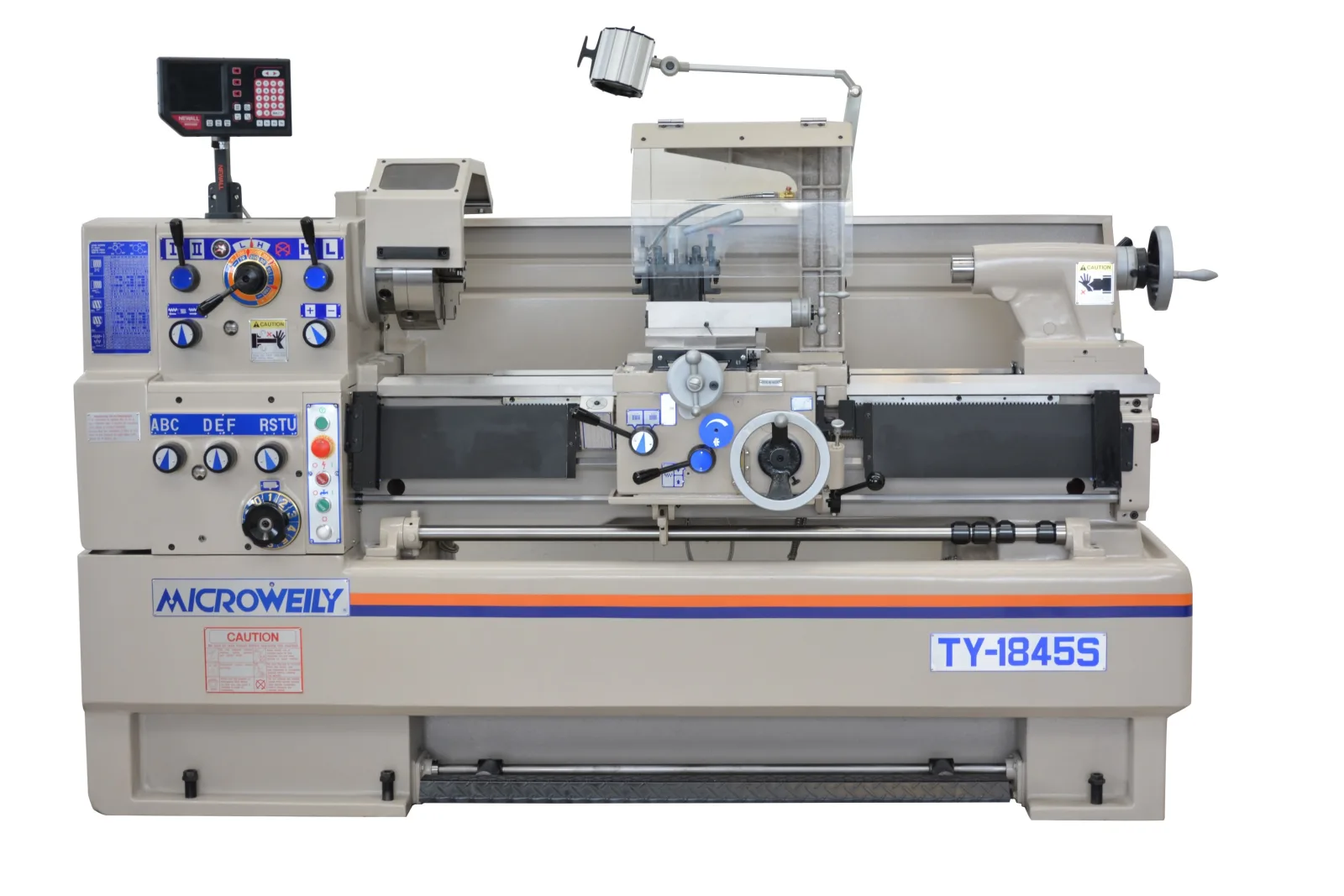

Microweily TY-1845S-CE Precision Centre Lathe

Name: Microweily TY-1845S-CE Precision Centre Lathe – c/w Newall DRO & QCTP
Brand: Microweily
SKU: LCNT-0-1157

458mm swing x 1145mm btc x 58mm bore, Newall digital readout, Quick change toolpost.

POA - On Order Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Swing over bed 458mm

Distance between centres 1145mm

Spindle bore 58mm

Speed range 30 - 2000 rpm

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

The Microweily TY series of manual lathes is New Zealands benchmark for quality lathes. They are produced by one of the original Taiwanese machine tool companies, with a history of over 50 years in manufacturing both CNC and high-speed precision conventional lathes. Microweily lathes are a proven choice for precision toolmaking, production, and general engineering applications. Manufactured in Taiwan, trusted worldwide.

The TY-1845S is one of our most popular sellers, suited to a wide range of general turning applications. It has a marginally larger footprint than the TY-1640S but offers a significantly larger swing, a bigger spindle bore, a 7.5 HP motor, a longer distance between centres, and the same type of heavy-duty solid casting. This means you get a similar light, precision feel to the smaller lathe, but with greater size and strength overall. This lathe offers a substantial step up in features without a significant increase in cost.

Key features

Heavy duty one-piece Meehanite cast base for superior vibration dampening and good resistance to wear.
Bedways and cross slide are induction hardened to HRC 52 and precision ground.
The slide ways between the saddle and bed are Turcite B coated reducing the friction resistance, providing smoother feel and a more effortless machine operation experience.
Fully enclosed 12-speed headstock
Hardened and precision ground headstock gears.
Precision spindle with 3 precision taper roller spindle bearings to achieve maximum accuracy.
D1-6 Spindle nose with 58mm spindle bore
Metric and imperial threading capability via gear driven leadscrew
Power feed range. From 0.037mm - 1.04mm (50 settings) on both the longitudinal axis (X) and cross slide (Y)
Generous swing with gap bed.
Right hand carriage wheel
One shot lubrication system
Robust cast tailstock with 4MT quill
Manufactured to ISO 9002 standards
CE Conformity

Scott package includes

Newall NMS300 2 axis digital readout system
Italian Style quick change toolpost (B) c/w 4 holders accepts 25 x 25mm tooling.
3 Jaw chuck 250mm "Strong" direct mounting (Taiwanese KD6-10)
4 Jaw chuck 250mm direct mounting (D6-10)
Fixed steady rest
Following steady rest
Coolant system
LED lamp
Longitudinal positional stops
Chuck guard with microswitch
Toolpost protector
Leadscrew protection
Full length splash guard
Thread dial indicator
