METALEX TP12 Hand Punch

TURRET PUNCH HAND TYPE MODEL TP12 12 STATIONS

$6,600.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Capacity 6mm mild steel
Weight 385kg
Shipping 900mm x 1,100mm x 1,550mm (400kg)
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Metalex is a trusted name in metalworking machinery and tooling, known for offering reliable performance, practical design, and outstanding value. Engineered to meet the demands of workshops, fabricators, and light industrial environments, the Metalex range includes equipment such as presses, guillotines, bandsaws, folders, and roll formers. Built with a focus on durability and ease of use, Metalex machines are well regarded for their solid construction and dependable operation across a wide range of applications

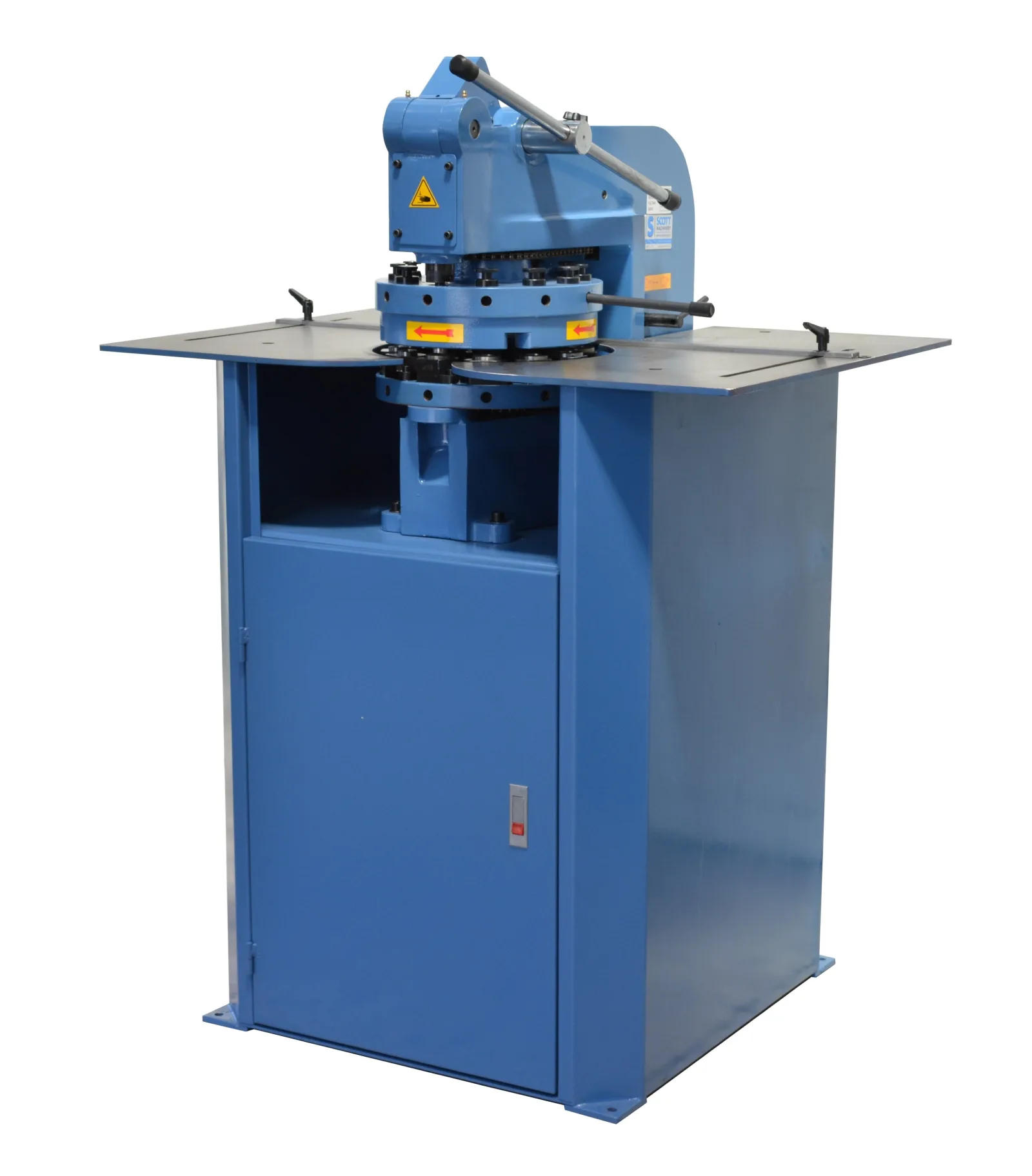

The Metalex TP12 hand punch is a robust and versatile manual turret punch designed for fast, repeatable punching in sheet metal, flat bar, and angle iron. Its rigid "C" frame body delivers up to 6,000 kg of punching force, supported by a durable toggle lever mechanism with precision guide plates and bearings for consistent results and long tool life. Featuring a 12 station rotary turret, the TP12 enables quick tool selection without setup changes. It's supplied with a full set of metric punches (5-32 mm) and comes mounted on a cabinet style floor stand with integrated punching table.

Features:

  • Punching capacity 19mm through 2mm mild steel, 32mm through 1mm mild steel
  • Max punching thickness 6mm
  • Throat depth 305mm
  • Ram stroke 17mm
  • Clearance between die and stripper surface 11mm
  • 12 position rotating turret for rapid tool changes
  • Adjustable back stop
  • Cabinet floor stand with work table

Included accessories:

  • Supplied punches 5, 7, 8, 10, 13, 14, 16, 19, 22, 25, 29, 32mm
  • Cabinet floor stand with work table
  • included

Optional:

  • Punches and dies for square, oval, rectangular and other shaped can be supplied as special requirement.

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Capacity 6mm mild steel
Weight 385kg
Shipping 900mm x 1,100mm x 1,550mm (400kg)
