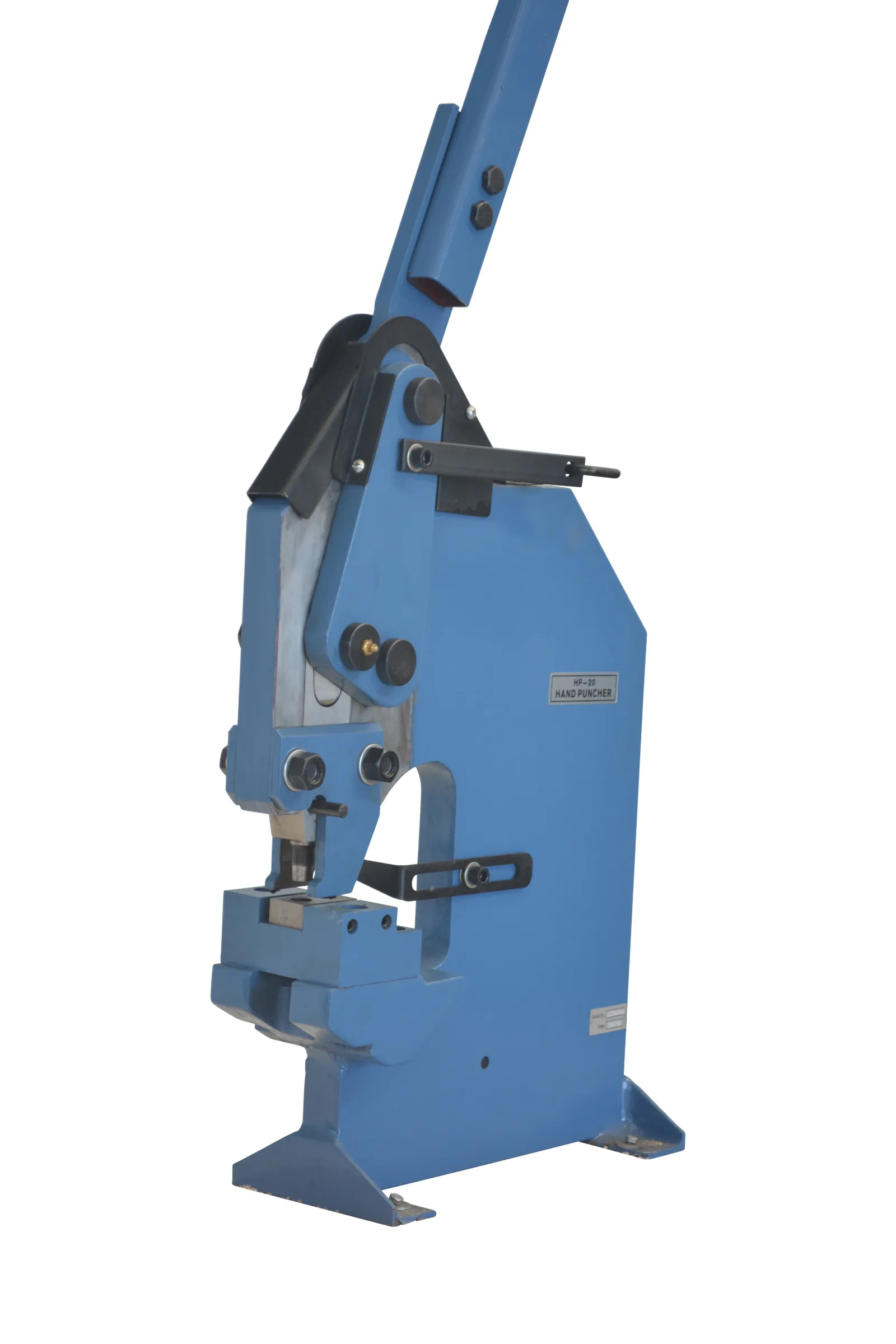

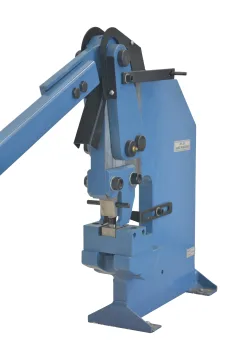

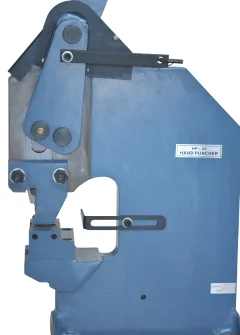

Metalex HP-20 Hand Punch

Bench mount 16mm capacity

On Special $1,490 + GST Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model HP-20
Capacity 16mm dia in 6mm mild steel ie 13 Ton
Throat depth 160mm
Bottom die 55mm x 34mm x 18mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Metalex is a trusted name in metalworking machinery and tooling, known for offering reliable performance, practical design, and outstanding value. Engineered to meet the demands of workshops, fabricators, and light industrial environments, the Metalex range includes equipment such as presses, guillotines, bandsaws, folders, and roll formers. Built with a focus on durability and ease of use, Metalex machines are well regarded for their solid construction and dependable operation across a wide range of applications

The Metalex HP20 is a robust, manually operated punch designed for fast and accurate hole punching in steel and other metals. With the capacity to punch up to 16 mm diameter holes in 6 mm mild steel, it delivers powerful performance without the need for hydraulic or electrical assistance. Ideal for fabrication, workshop, and on site use, the HP20 features a strong, lever operated design for controlled punching with minimal effort. Built for reliability and ease of use, it's perfect for brackets, base plates, and custom steelwork.

Features

  • Manual operation, no power or hydraulics required
  • Capable of punching up to 16 mm diameter holes in 6 mm mild steel
  • Adjustable throat depth stop
  • Ideal for steel plate, flat bar, brackets, and structural components
  • Strong, lever action design for high punching force with minimal effort
  • Heavy duty steel frame for durability and long service life
  • Quick and easy tool change system
  • Compact, portable design suitable for workshop or on site use
  • Clean, burr free hole finish
  • Minimal maintenance required

Comes with round punch & die sets for:

  • 6, 7, 8, 9, 10, 11, 12, 13, 14, 15 & 16mm
  • Each die block has two females per size

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model HP-20
Capacity 16mm dia in 6mm mild steel ie 13 Ton
Throat depth 160mm
Bottom die 55mm x 34mm x 18mm
Weight 84 kg
Packing size 520mm x 230mm x 950mm (90kg)

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
