METALEX TP12 Hand Punch
12 Station Turret c/w 12 Punch & Dies
Product overview
About this machine.
Metalex is a trusted name in metalworking machinery and tooling, known for offering reliable performance, practical design, and outstanding value. Engineered to meet the demands of workshops, fabricators, and light industrial environments, the Metalex range includes equipment such as presses, guillotines, bandsaws, folders, and roll formers. Built with a focus on durability and ease of use, Metalex machines are well regarded for their solid construction and dependable operation across a wide range of applications

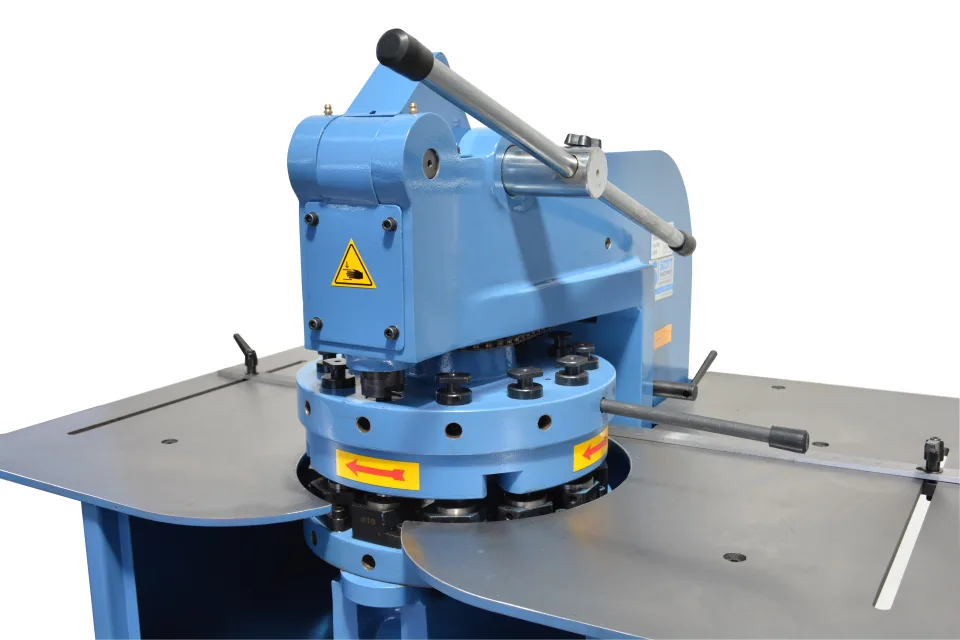

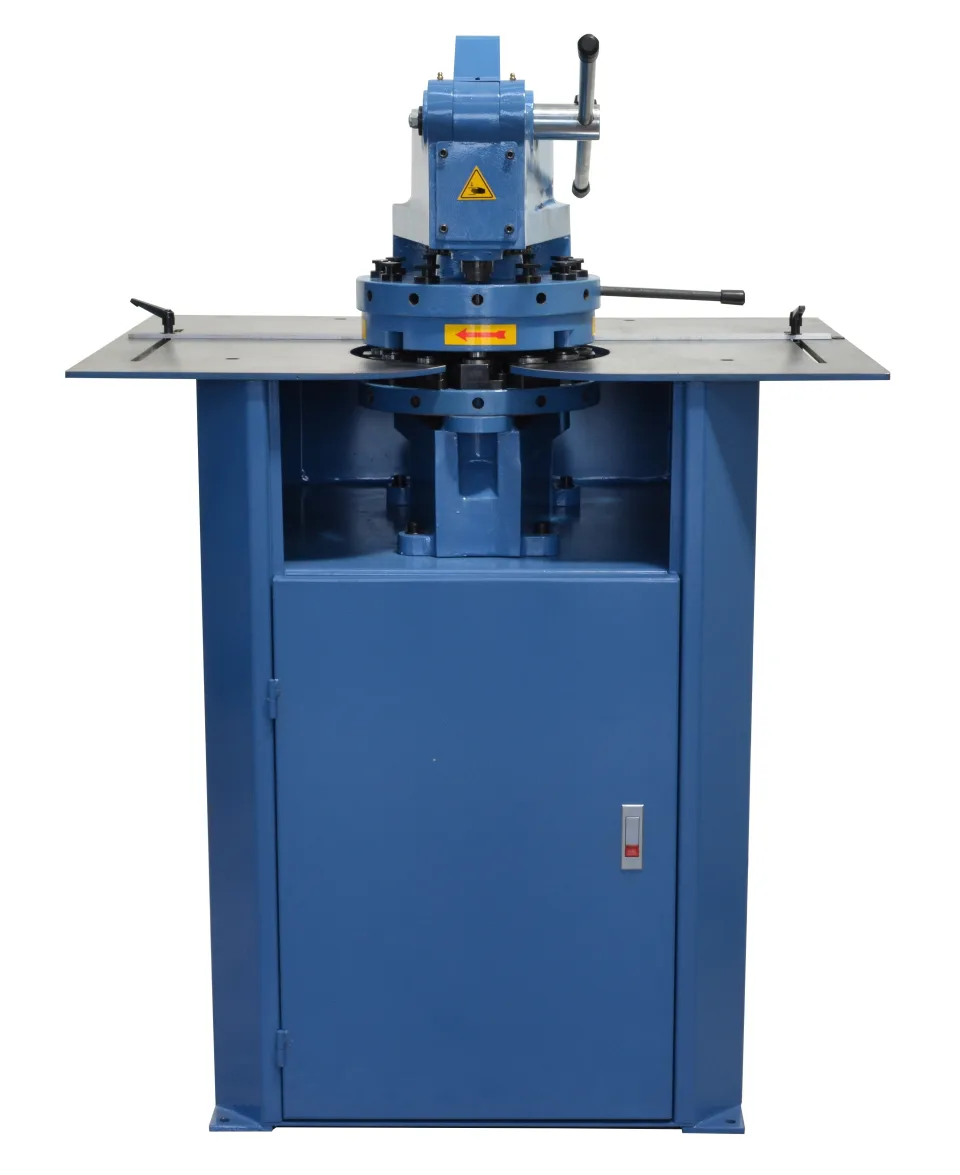

The Metalex TP12 hand punch is a robust and versatile manual turret punch designed for fast, repeatable punching in sheet metal, flat bar, and angle iron. Its rigid "C" frame body delivers up to 6,000 kg of punching force, supported by a durable toggle lever mechanism with precision guide plates and bearings for consistent results and long tool life. Featuring a 12 station rotary turret, the TP12 enables quick tool selection without setup changes. It's supplied with a full set of metric punches (5-32 mm) and comes mounted on a cabinet style floor stand with integrated punching table.
Features:
- Punching capacity 19mm through 2mm mild steel, 32mm through 1mm mild steel
- Max punching thickness 6mm
- Throat depth 305mm
- Ram stroke 17mm
- Clearance between die and stripper surface 11mm
- 12 position rotating turret for rapid tool changes
- Adjustable back stop
- Cabinet floor stand with work table
Included accessories:
- Supplied punches 5, 7, 8, 10, 13, 14, 16, 19, 22, 25, 29, 32mm
- Cabinet floor stand with work table
- included
Optional:
- Punches and dies for square, oval, rectangular and other shaped can be supplied as special requirement.
