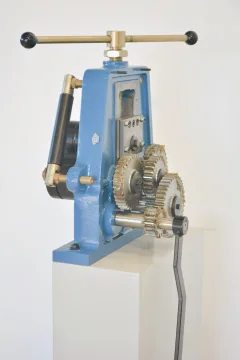

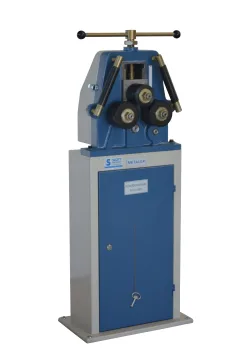

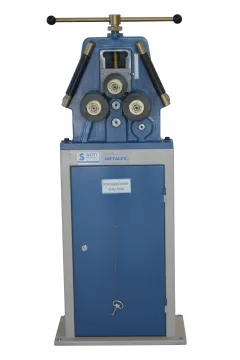

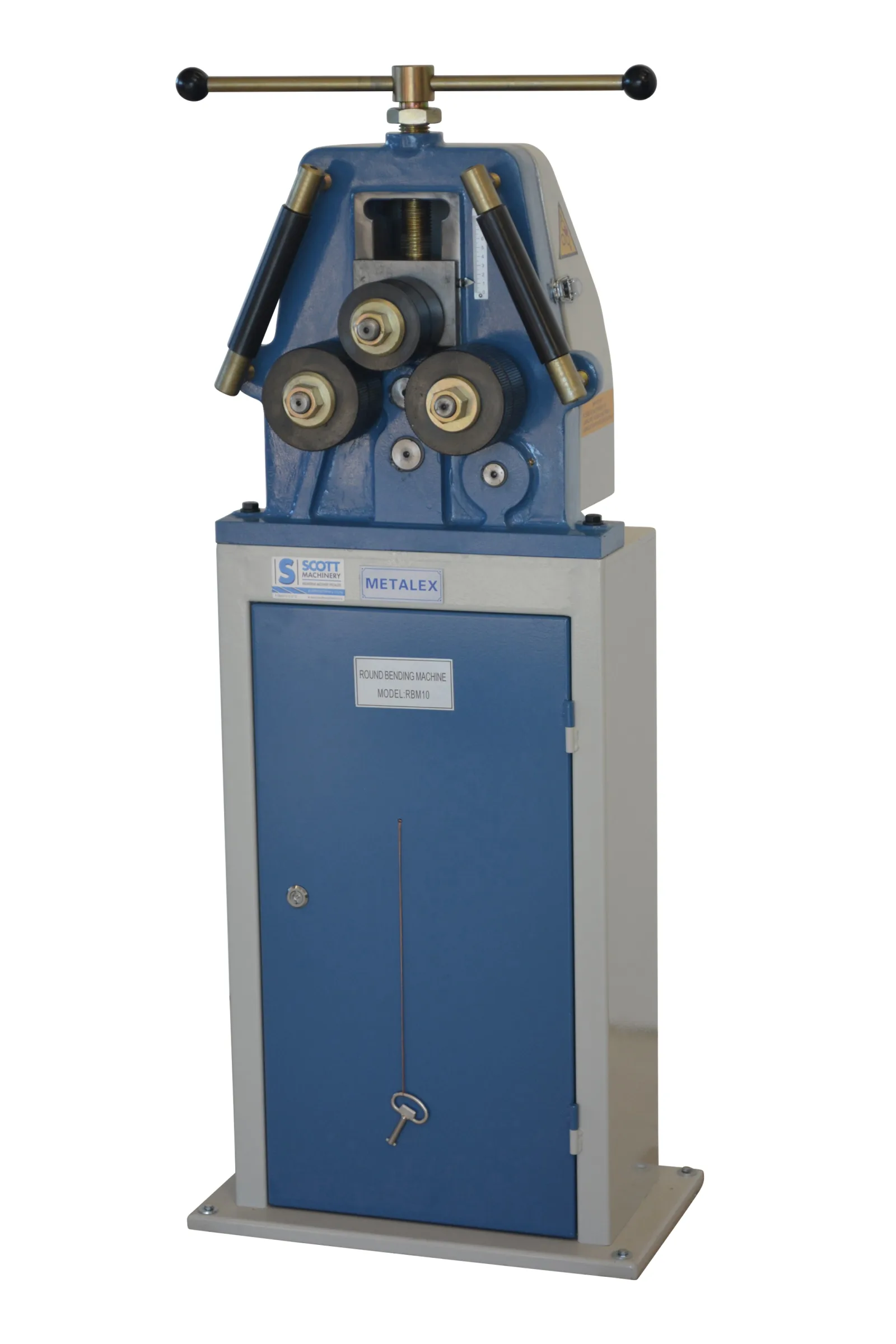

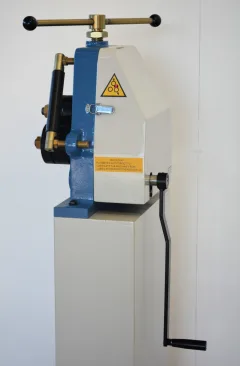

METALEX RBM10 Manual Profile Rolling Machine

Name: METALEX RBM10 Manual Profile Rolling Machine
Brand: METALEX
SKU: ROLL-0-0031

Sectional rolls, Manual top roll, Two driven rolls via manual handle

$1,970.00 Excludes GST. Configuration and freight quoted with your enquiry.

NZ Prepared, installed and supported nationwide by Scott Machinery.

Shaft diameter 30mm

Top roller diameter 98mm

Bottom roller diameter 118mm

Weight 165kg

NZ owned Since 1989

Industry people Practical machine advice

Auckland + Christchurch Two support hubs

Nationwide support Installation, training & service

Parts & accessories Large local range

Product overview

About this machine.

Metalex is a trusted name in metalworking machinery and tooling, known for offering reliable performance, practical design, and outstanding value. Engineered to meet the demands of workshops, fabricators, and light industrial environments, the Metalex range includes equipment such as presses, guillotines, bandsaws, folders, and roll formers. Built with a focus on durability and ease of use, Metalex machines are well regarded for their solid construction and dependable operation across a wide range of applications

The Metalex RBM10 is a robust, manually operated profile roller ideal for forming round, flat, square, and angle steel into precise curves and radii. Compact yet powerful, it's perfectly suited for light fabrication, repair work, and custom metal projects. With a durable cast frame and smooth hand crank operation, the RBM10 provides consistent results with minimal effort. Adjustable guide rolls ensure control and accuracy.

Features

Manually operated, no power required
Vertical operation
Two bottom driving rolls
Suitable for bending flat, round, square, and angle steel
Adjustable guide rolls for accurate forming and repeatability
Tempered and polished rollers and shafts
Compact, bench mountable design for space saving use. Supplied on a stand
Smooth, long handle, hand crank operation for consistent bending
Robust cast iron frame for long lasting durability
Ideal for light fabrication, custom metalwork, and repair tasks

Published data

Specifications

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.

Specifications for METALEX RBM10 Manual

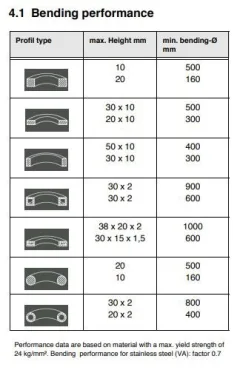

Capacity
Box section	30 x 30 x 2mm	900mm diameter
	20 x 20 x 2mm	600mm diameter
Solid square bar	20 x 20mm	500mm diameter
	10 x 10mm	160mm diameter
Flat bar hard way	30 x 10mm	500mm diameter
	20 x 10mm	300mm diameter
Flat bar easy way	50 x 10mm	400mm diameter
	30 x 10mm	300mm diameter
Specifications
Shaft diameter	30mm
Top roller diameter	98mm
Bottom roller diameter	118mm
Weight	165kg
Dimensions	620 x 560 x 1440mm (175kg)
