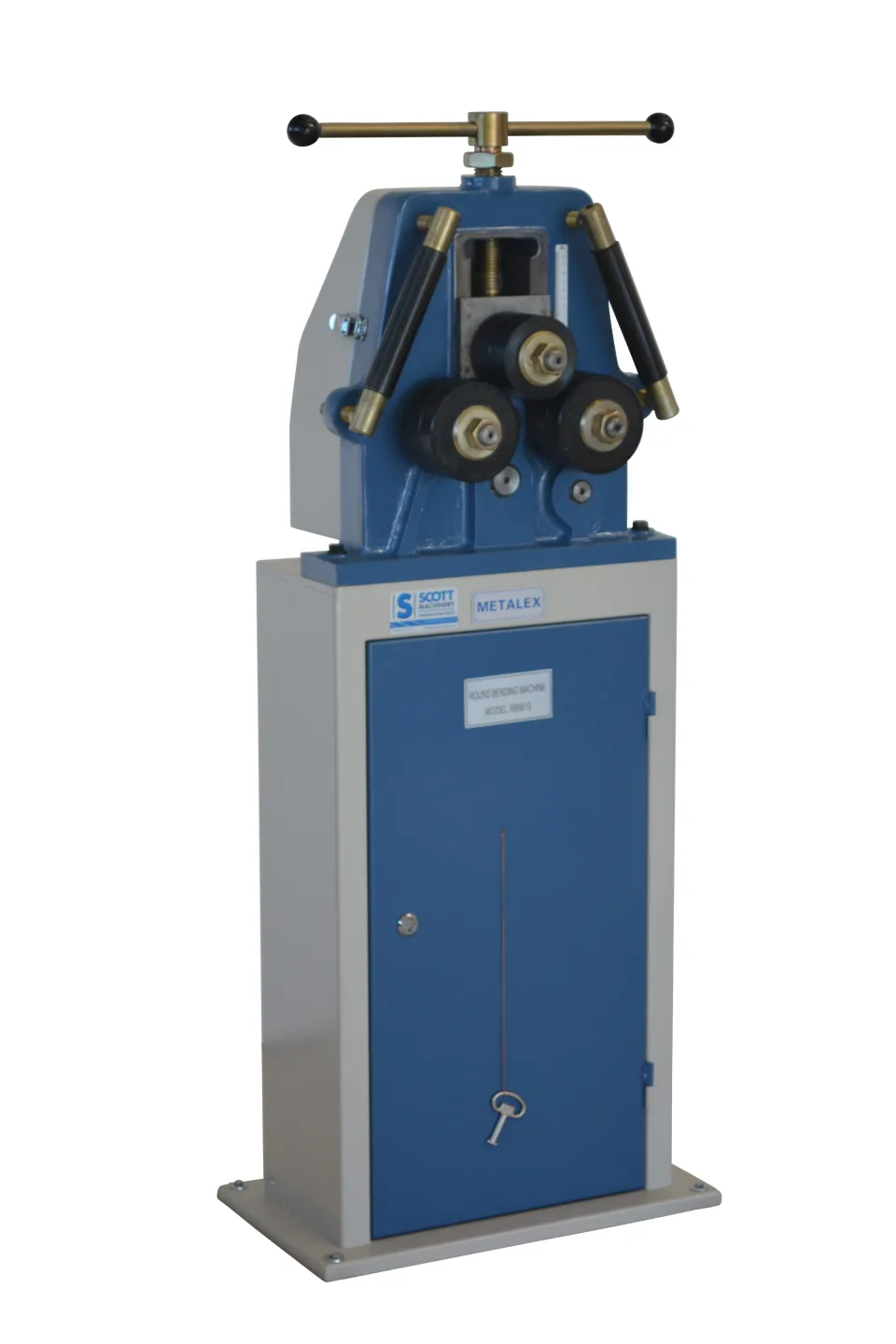

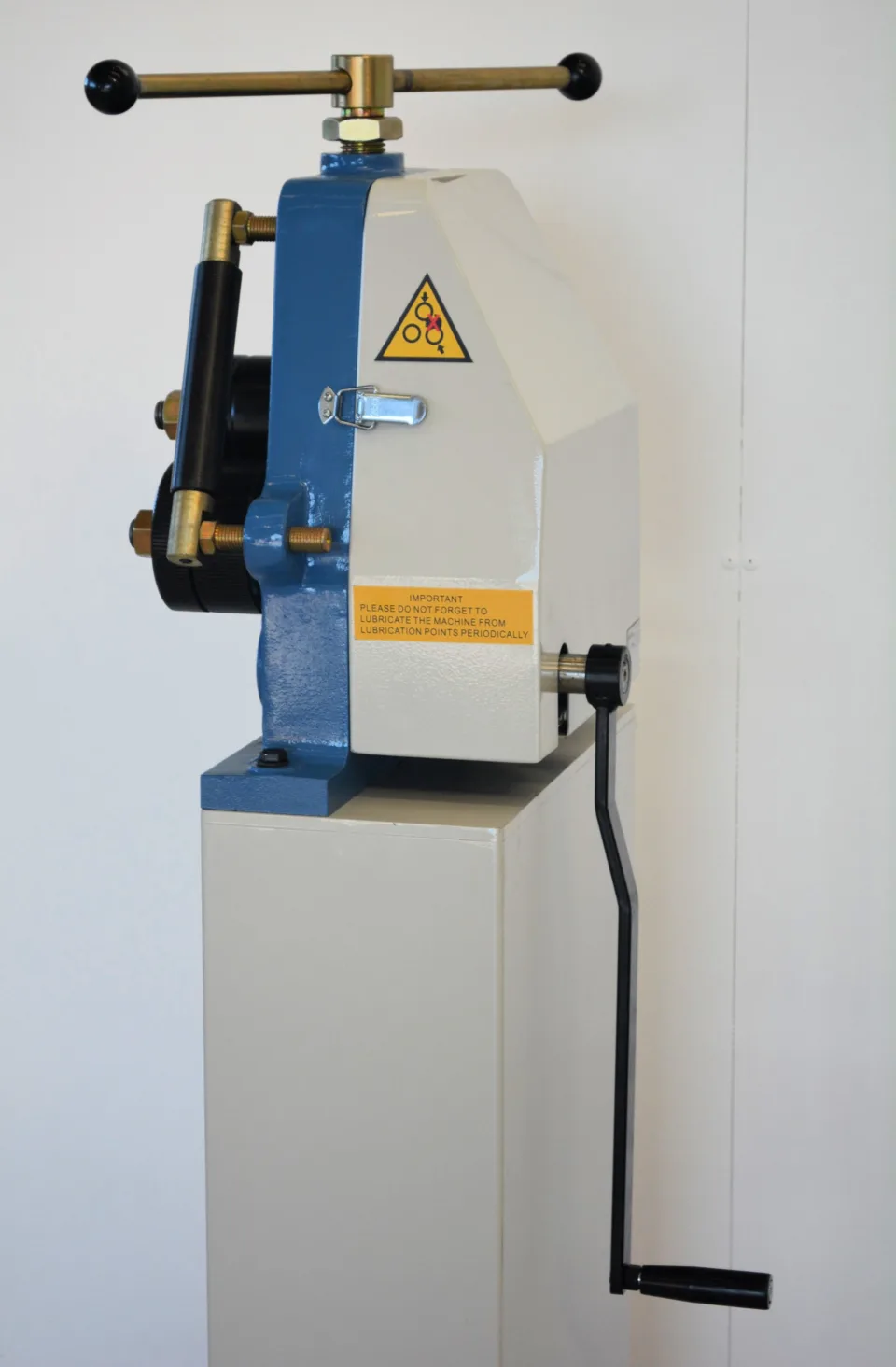

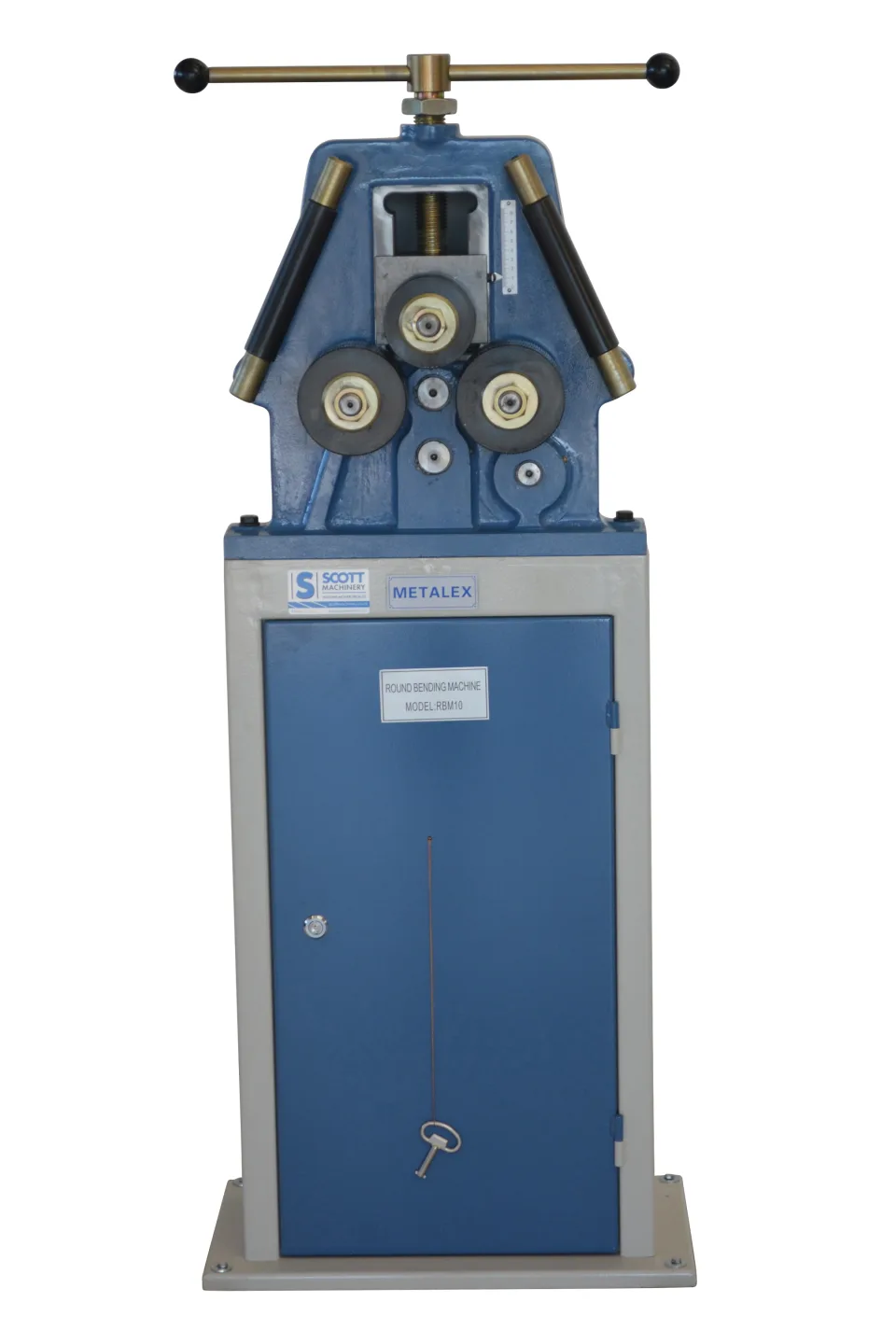

METALEX RBM10 Manual Profile Rolling Machine
Product overview
About this machine.
Metalex is a trusted name in metalworking machinery and tooling, known for offering reliable performance, practical design, and outstanding value. Engineered to meet the demands of workshops, fabricators, and light industrial environments, the Metalex range includes equipment such as presses, guillotines, bandsaws, folders, and roll formers. Built with a focus on durability and ease of use, Metalex machines are well regarded for their solid construction and dependable operation across a wide range of applications
The Metalex RBM10 is a robust, manually operated profile roller ideal for forming round, flat, square, and angle steel into precise curves and radii. Compact yet powerful, it's perfectly suited for light fabrication, repair work, and custom metal projects. With a durable cast frame and smooth hand crank operation, the RBM10 provides consistent results with minimal effort. Adjustable guide rolls ensure control and accuracy.
Features
- Manually operated, no power required
- Vertical operation
- Two bottom driving rolls
- Suitable for bending flat, round, square, and angle steel
- Adjustable guide rolls for accurate forming and repeatability
- Tempered and polished rollers and shafts
- Compact, bench mountable design for space saving use. Supplied on a stand
- Smooth, long handle, hand crank operation for consistent bending
- Robust cast iron frame for long lasting durability
- Ideal for light fabrication, custom metalwork, and repair tasks
Published data
Specifications

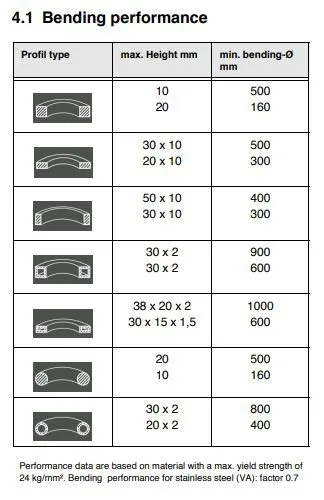

Scroll horizontally to compare models or capacities. Use these to shortlist. We’ll confirm the specification and configuration against the application.| Capacity | ||
|---|---|---|
| Box section | 30 x 30 x 2mm | 900mm diameter |
| 20 x 20 x 2mm | 600mm diameter | |
| Solid square bar | 20 x 20mm | 500mm diameter |
| 10 x 10mm | 160mm diameter | |
| Flat bar hard way | 30 x 10mm | 500mm diameter |
| 20 x 10mm | 300mm diameter | |
| Flat bar easy way | 50 x 10mm | 400mm diameter |
| 30 x 10mm | 300mm diameter | |
| Specifications | ||
| Shaft diameter | 30mm | |
| Top roller diameter | 98mm | |
| Bottom roller diameter | 118mm | |
| Weight | 165kg | |
| Dimensions | 620 x 560 x 1440mm (175kg) | |
