Baileigh R-M5 Manual Profile Rolling Machine
1 / 5
Baileigh logo ROLL-0-1004

Sheet Metal & Fabrication · Rolling & forming

Baileigh R-M5 Manual Profile Rolling Machine

Small compact and portable

$1,790.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Model R-M5
Solid Round 12.7mm (1/2")
Flat Bar 25.4mm x 4.75mm
Minimum Diameter 70mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

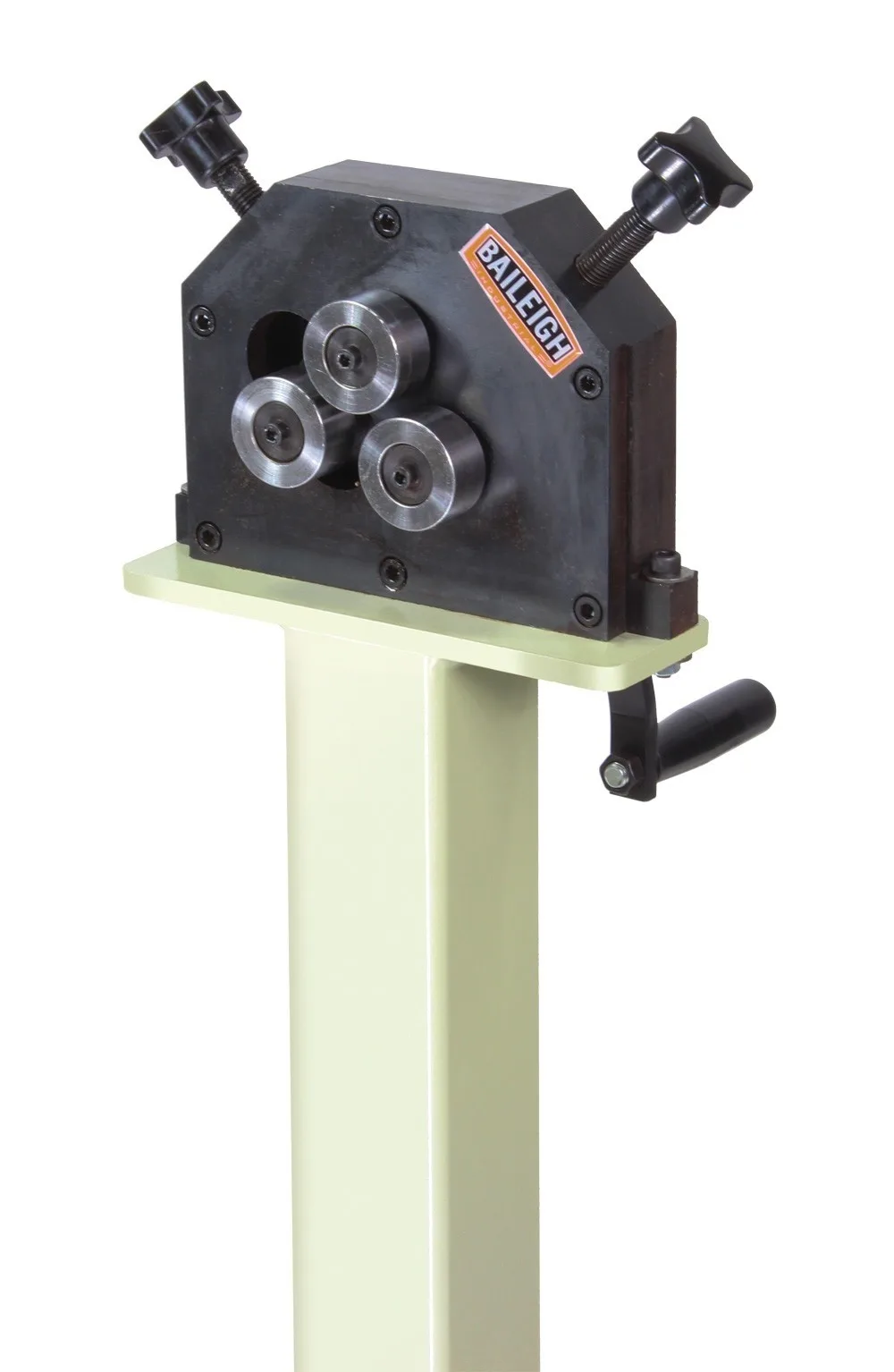

The Baileigh R‑M5 Manual profile rolling machine is a compact yet robust 3 roll ring roller designed for shaping flat bar and round rod into smooth circles and rings. Hand operated and portable with its included floor stand, the R-M5 bends up to 13mm solid round or 5mm x 25mm flat bar, offering the flexibility to roll from either side of the bottom roll for varying radii. Manufactured using heavy-gauge steel the R-M5 is built to last and perfect for small fabrication shops, hobbyists, or custom shop setups.

Baileigh Industrial is a leading U.S. manufacturer of metalworking and woodworking machinery, founded in 1999 in Wisconsin. Known for innovation like the first hydraulic tube bender to do 180 degrees bends in one shot, Baileigh offers a large selection of pipe/tube benders and well as industry leading panel beating, sheet metal and metal forming machinery. They are widely respected not only for durable, high-performance equipment but also for their excellent tutorial videos on youtube, helping users get the most from their machines.

Made in USA

Features:

  • 3 driven rolls
  • Manual operation
  • Includes tooling for flat bar, 1/4" and 1/2" round
  • Perfect for doing small circles
  • Includes heavy duty floor stand
  • Optional tooling sets for round stock available

Optional

  • 3/8" Round rolls

Machine video

See Baileigh R-M5 in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Model R-M5
Solid Round 12.7mm (1/2")
Flat Bar 25.4mm x 4.75mm
Minimum Diameter 70mm
Handle Length 229mm
Power Requirement Manual
Shipping Dimensions (L x W x H) 2 boxes 980 x 730 x 120mm & 350 x 230 x 180mm
Shipping Weight 38kgs
