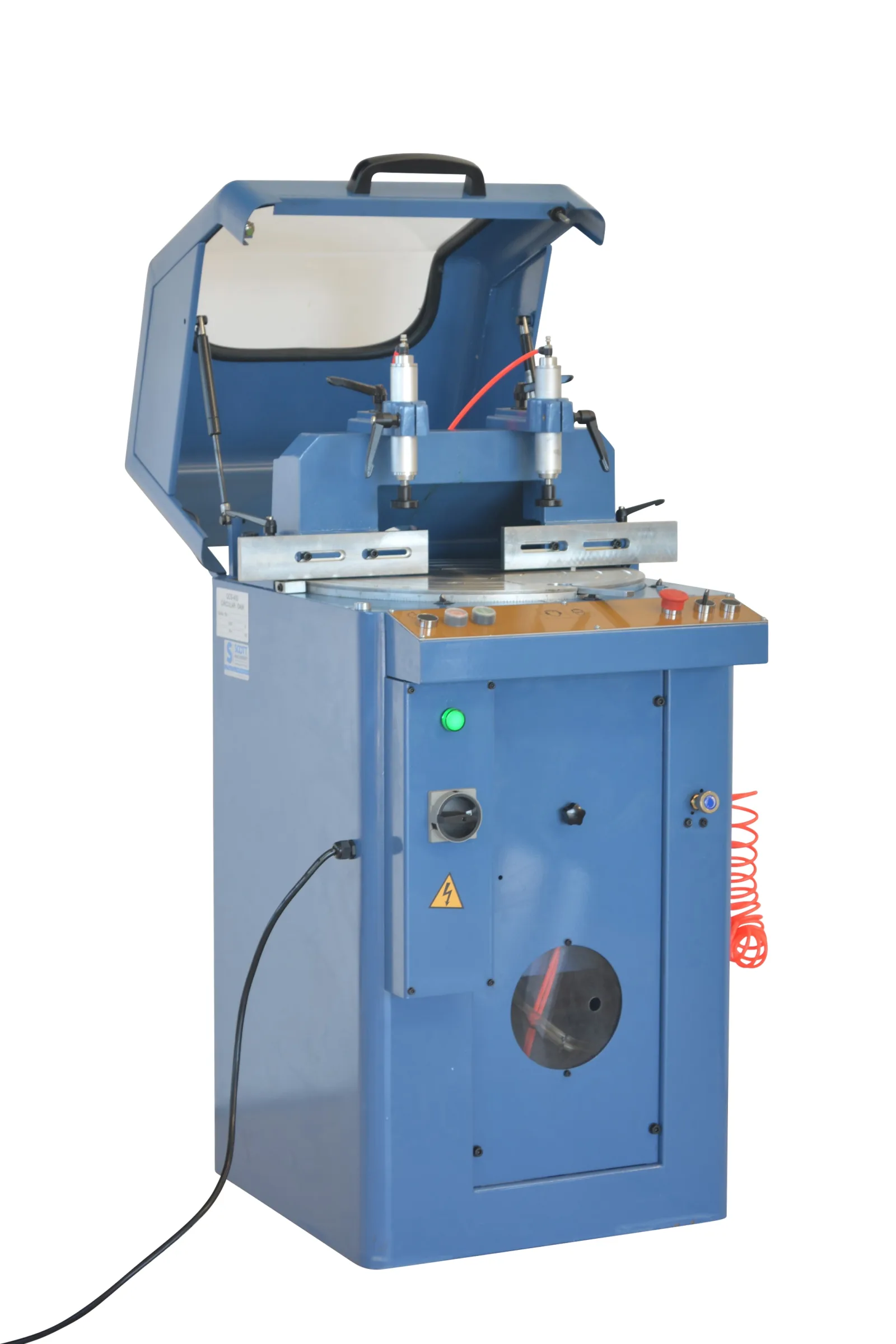

Metalex QCS-400 Non-ferrous up cutting circular saw
1 / 9
Metalex logo SAWC-0-8640

Saws & Cutting · Non-ferrous saws

Metalex QCS-400 Non-ferrous up cutting circular saw

200mm x 80mm or 105mm Round capacity High speed, Up-cut, fully enclosed, Aluminium saw

$4,990.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Blade diameter 400mm - TCT
Capacity 90 degrees Round 105mm
Blade speed 2,800rpm
Motor 1.1kW 3 phase 415V (50Hz)
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Metalex is a trusted name in metalworking machinery and tooling, known for offering reliable performance, practical design, and outstanding value. Engineered to meet the demands of workshops, fabricators, and light industrial environments, the Metalex range includes equipment such as presses, guillotines, bandsaws, folders, and roll formers. Built with a focus on durability and ease of use, Metalex machines are well regarded for their solid construction and dependable operation across a wide range of applications

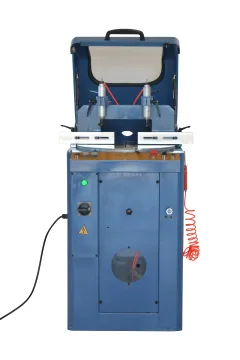

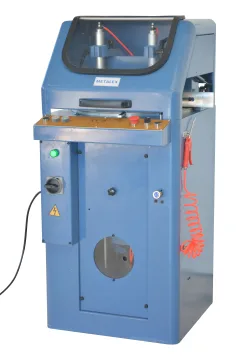

The QCS-400 upcut saw is a compact, high-speed upcut saw designed for precise cutting of aluminium and non ferrous materials. Featuring a 400 mm TCT blade, +/- 45 degree mitre capability, and pneumatic clamping, it delivers clean, accurate results with minimal setup time. A 1.1 kW belt driven motor ensures smooth operation, while dual hand controls and a controlled blade descent system enhance safety and control, ideal for workshops needing efficiency and accuracy in profile cutting.

Features:

  • 400 mm TCT blade for clean, precise cutting
  • Upcut design with automatic blade rise for efficient operation
  • Cuts up to 105 mm round or 200 x 80 mm rectangular at 90 degrees
  • Pivoting table with mechanical stops at 45, 90, and 135 degrees
  • Mitre cutting +/- 45 degree with easy degree setting

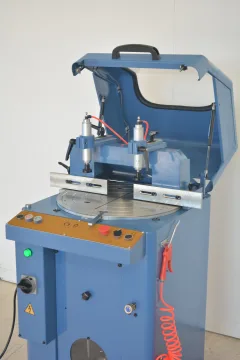

  • Pneumatic clamping for fast, secure workholding

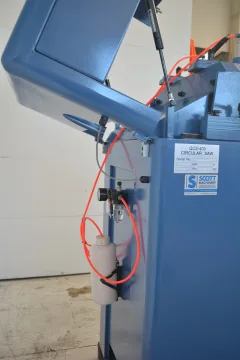

  • Spray mist lubrication system for optimal blade life and finish
  • Hydraulic blade dampener for smooth descent
  • Adjustable rear depth stop for repeatable cuts
  • Full blade protection with dual hand safety control
  • 1.1 kW belt driven motor (approx. 2800 rpm)

Standard Accessories:

  • 400 mm TCT blade
  • Vertical pneumatic clamping set
  • Pneumatic spray mist lubrication
  • Air filter
  • Air gun

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Blade diameter 400mm - TCT
Capacity 90 degrees Round 105mm
90 degrees Rectangular 200x80mm
45 degrees Round 105mm
45 degrees Rectangular 200x80mm
Blade speed 2,800rpm
Motor 1.1kW 3 phase 415V (50Hz)
Drive Belt
Weight 180kg
Shipping (L x H x W) 1000mm x 1000mm x 1500mm (200kg)

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.

0800 215 215 sales@scottmachinery.co.nz
Auckland · Christchurch · Nationwide support
Regarding Metalex QCS-400
