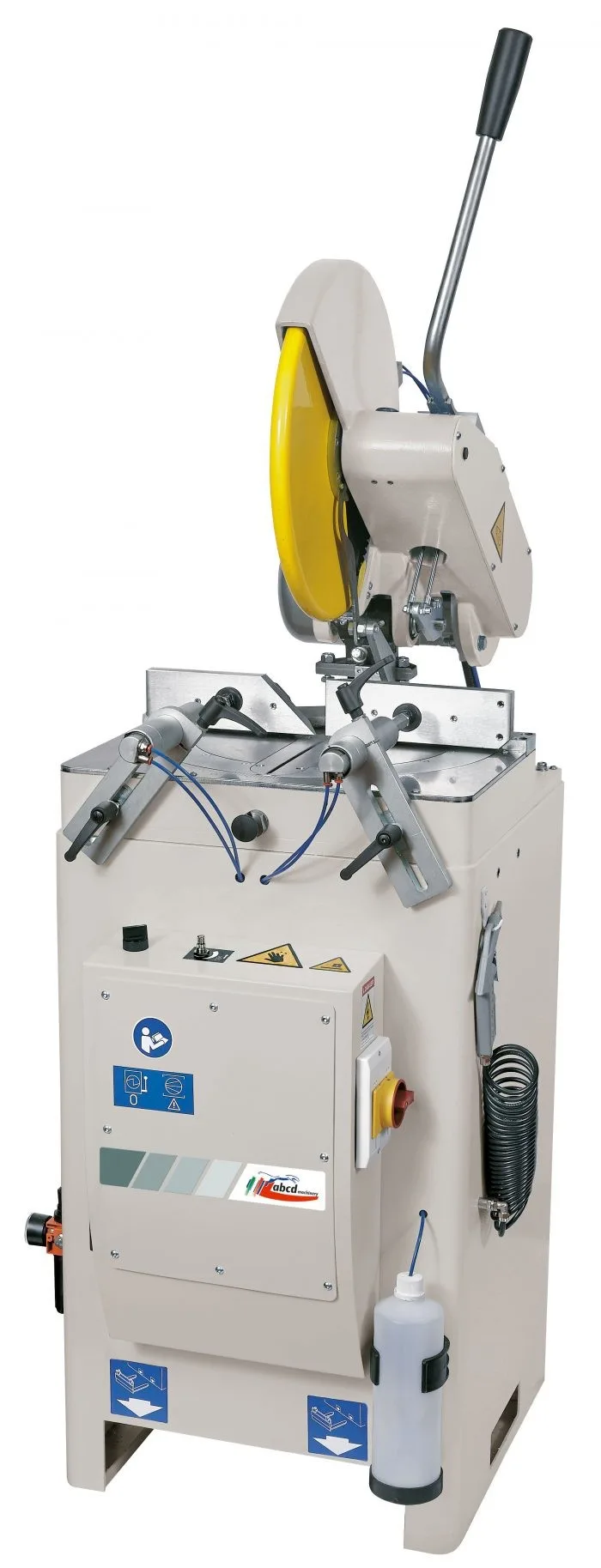

Gemma Group MOST MN Non-ferrous circular saw
1 / 5
SAWC-0-8610

Saws & Cutting · Non-ferrous saws

Gemma Group MOST MN Non-ferrous circular saw

200mm x 80mm capacity

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Gemma MOST MN
Capacity 90 degrees 200mm x 80mm
Capacity 45 degrees 143mm x 80mm
Blade diameter 400mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Gemma Group is a leading manufacturer of advanced machinery for processing aluminium extrusions. Renowned for their innovation, precision, and engineering excellence, Gemma designs and builds fully automated cutting, machining, handling, and packaging systems tailored to the unique demands of the aluminium extrusion industry. Their solutions are trusted by manufacturers worldwide for increasing productivity, reducing waste, and delivering consistent, high-quality results. With decades of experience and a commitment to continuous improvement, Gemma Group is a go-to partner for efficient, state-of-the-art aluminium extrusion processing.

The Gemma MOST is a precision single head miter saw built for professional aluminium profile work. Its rugged electro welded steel base ensures stability, and two horizontal pneumatic clamps lock the material securely for clean cuts. Equipped with a 1.5 kW motor and a 400mm diameter widia blade, the cutting head tilts from 90 degrees to 45 degrees on the left for versatile angle capabilities. A pivoting worktable with mechanical stops allows fast setup, and a sliding square makes trimming easy. With manual blade output control, Venturi type lubrication, and CE-compliant safety guards, the MOST delivers reliable, accurate, burr free cutting while being easy to operate.

Features:

  • Manual single head miter saw with descending (down stroke) blade movement for precision cuts.
  • Electro welded steel base for a stable, vibration free platform.
  • Two horizontal pneumatic clamps to securely hold the workpiece during cutting.
  • Cutting motor power 1.5 kW compatible with a 400mm diameter widia blade.
  • Tilting head can tilt from 90 degrees to 45 degrees to the left, useful for bevel and angled cuts.
  • Rotating worktable (pivoting table) with mechanical angle stops for common settings, making setup faster.
  • Sliding mobile square for trimming operations.
  • Venturi-type or nebulised cutting lubrication (mist lubrication) to reduce blade wear and maintain cutting quality.
  • CE-compliant safety and protection guards as standard.

Standard Accessories:

  • Horizontal pneumatic clamping set
  • Pneumatic spray mist lubrication
  • TCT Saw Blade D. 400mm

Optional Accessories:

  • Spare blades
  • Single phase motor

Safety Features:

  • CE-compliant safety and protection guards as standard.

Machine video

See Gemma Group MOST MN in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Gemma MOST MN
Capacity 90 degrees 200mm x 80mm
Capacity 45 degrees 143mm x 80mm
Blade diameter 400mm
Spindle diameter 30mm
Blade speed 2,850rpm
Cutting speed 59m/min
Advancement speed Manual
Cutting rotation +45 -45 degrees
Cutting inclination 0 -45 degrees
Working pressure 7 bar
Motor power 1.5kw, 400V 50hz 3 phase
Floor space w x d x h 728 x 1200 x 1540mm
Table height 935mm
Shipping 1.02m3 175kg
