Gemma Group Autocut 550 Non-ferrous automatic up cutting saw
1 / 4
SAWC-0-8700

Saws & Cutting · Non-ferrous saws

Gemma Group Autocut 550 Non-ferrous automatic up cutting saw

300mm x 120mm capacity Fully automatic up-cut

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Gemma Autocut 550
Rectangular capacity 160mm x 160mm or 280mm x 130mm
Minimum cut length 5mm
Maximum feed stroke 660mm (will multi-feed)
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Gemma Group is a leading manufacturer of advanced machinery for processing aluminium extrusions. Renowned for their innovation, precision, and engineering excellence, Gemma designs and builds fully automated cutting, machining, handling, and packaging systems tailored to the unique demands of the aluminium extrusion industry. Their solutions are trusted by manufacturers worldwide for increasing productivity, reducing waste, and delivering consistent, high-quality results. With decades of experience and a commitment to continuous improvement, Gemma Group is a go-to partner for efficient, state-of-the-art aluminium extrusion processing.

The Gemma Autocut 550 is a high performance automatic single head saw engineered for precise, high-volume aluminium profile cutting. Powered by a 5.5 kW motor running at 2,800 rpm and fitted with a 550mm diameter widia blade, it delivers clean, burr free 90 degree cuts. The machine includes automatic bar feeding (5-660 mm range), four horizontal and three vertical pneumatic clamps, and a rigid "bridge" locking system to secure profiles tightly during operation. The cutting area uses Venturi atomised lubrication to maintain blade quality, while the operator controls everything from a 7-inch PC Windows touchscreen. Built on an electro welded steel base, this saw meets CE safety standards and includes integrated protection for operator safety

Features:

  • Automatic single head machine designed for 90 degree cuts with automatic in-feeding.
  • Rigid, electro welded steel base for stability and minimal vibration.
  • 4 horizontal and 3 vertical pneumatic clamps plus a central support for small section profiles.
  • Heavy duty "bridge" locking system ("pont" system) for profile locking to ensure secure grip during cutting.
  • Motor: 5.5 kW running at 2,800 rpm, with a 550mm diameter widia (carbide) blade.
  • Venturi (nebulised / mist) lubrication system to reduce blade wear and improve cut quality.
  • Cutting range minimum cutting length of 5 mm, up to a maximum of 660 mm.
  • Bar advancement / feed system: Brushless motors, linear guides, ground rack; includes end-bar length laser detector.

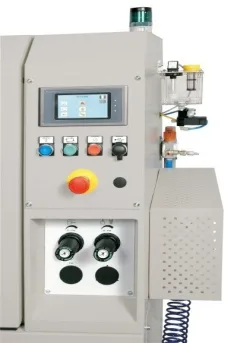

  • Operator interface PC-Windows based control with a 7 inch colour touchscreen.
  • Maximum material section: approx 160 x 160 mm (square) or 300 x 120 mm in another orientation.
  • Dimensions & weight approx 1,600 x 800 x 1,650 mm, with a machine weight around 680 kg.

Standard Accessories:

  • 550mm TCT blade
  • Vertical and horizontal clamps
  • Pneumatic spray mist lubrication
  • Central support for small profiles
  • Air gun / air filter

Optional Accessories:

  • Spare blades

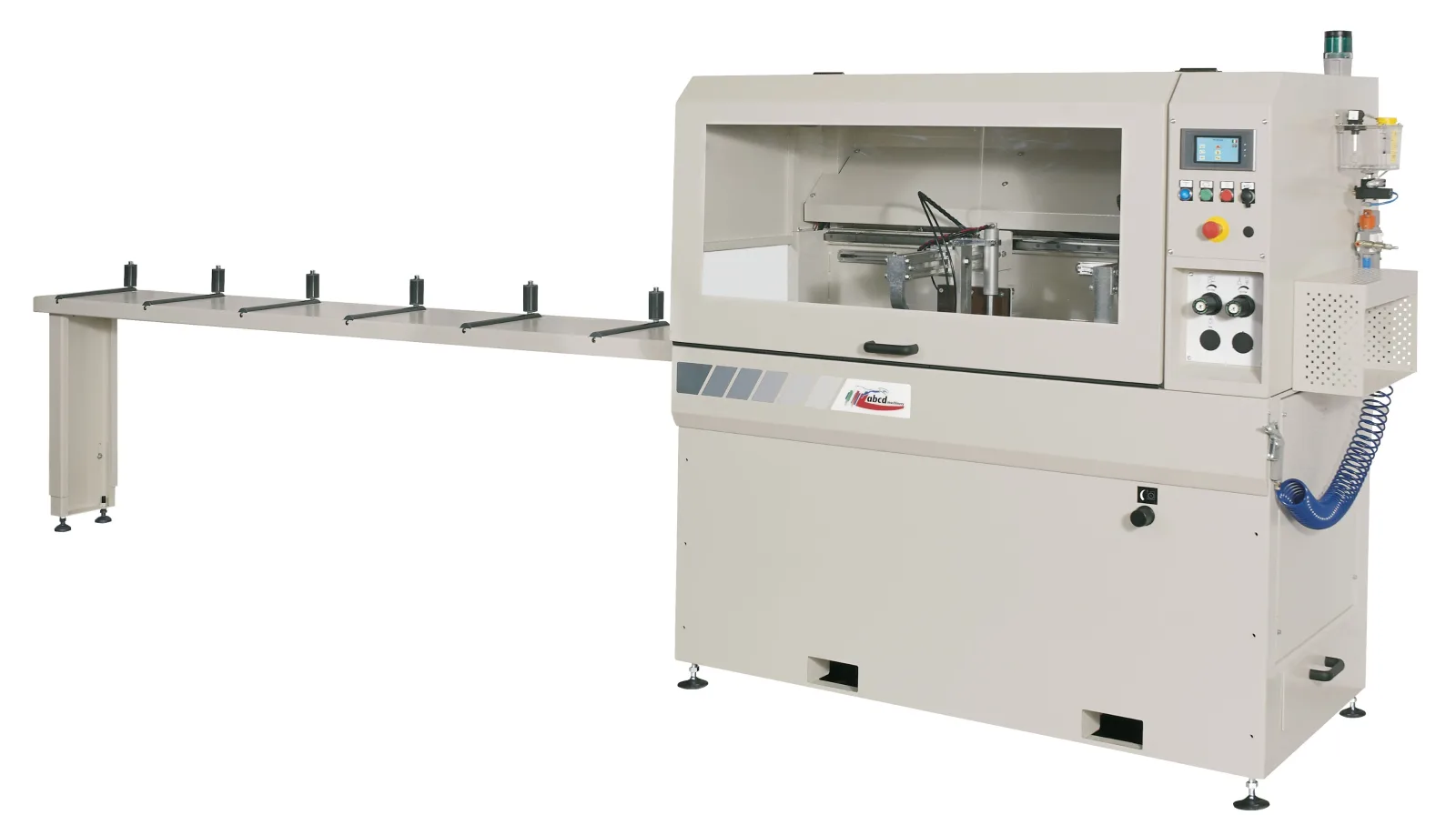

  • 3m infeed roller ( As shown in image )

Safety Features:

  • Standard safety and protection devices compliant with EU / CE regulations.

Machine video

See Gemma Group Autocut 550 in operation.

Watch the machine at work, then talk to Scott about the right configuration for your material, application and workflow.

Discuss your application

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Gemma Autocut 550
Rectangular capacity 160mm x 160mm or 280mm x 130mm
Minimum cut length 5mm
Maximum feed stroke 660mm (will multi-feed)
Cutting speed 73m/sec
Blade size 550mm
Blade speed 2800rpm
Spindle diameter 30mm
Motor 5.5kW, three phase
Weight 680kg
Machine size 1800 x 900 x 1800
