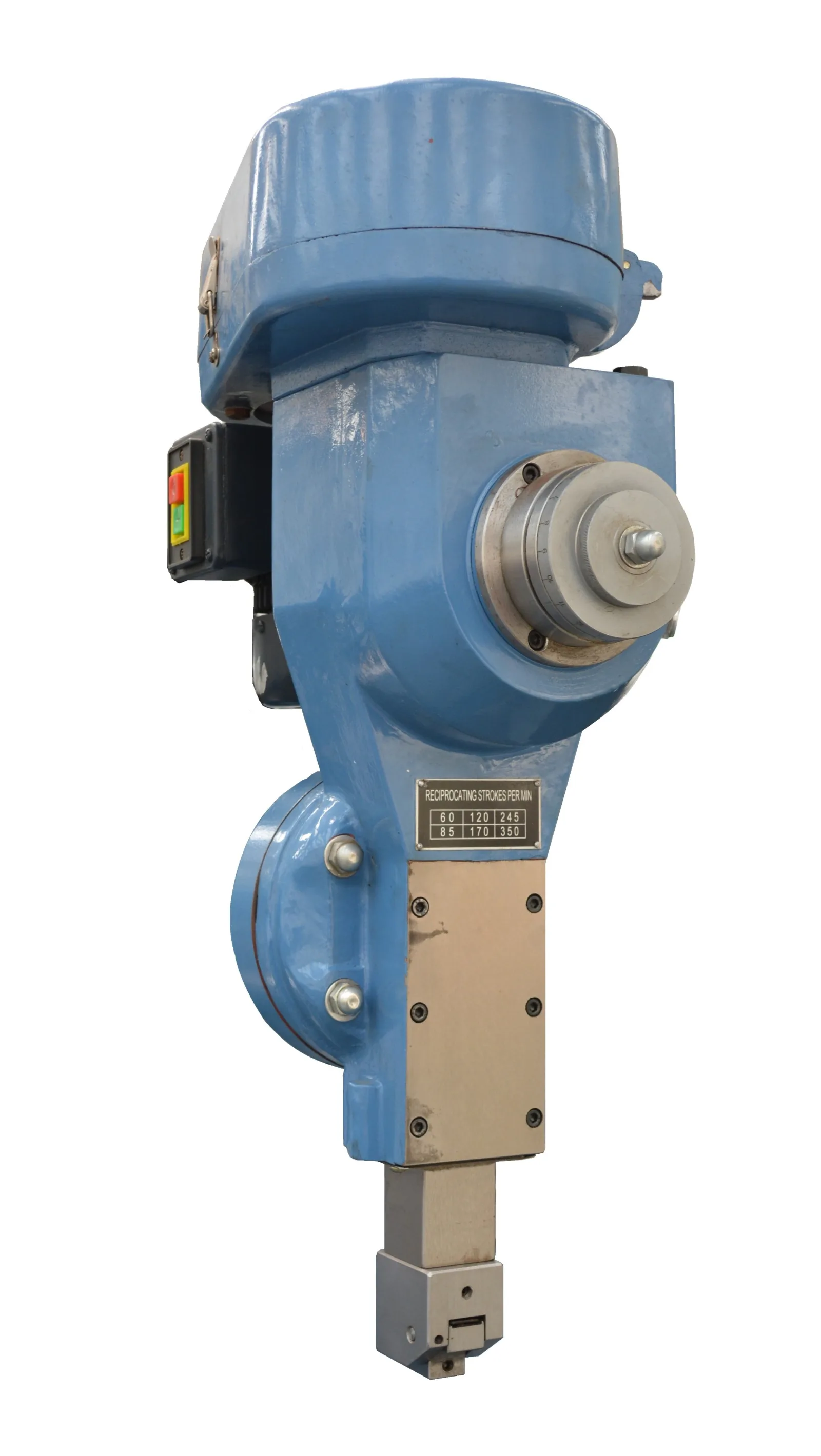

METALEX LC100 Slotting Head Attachment

100mm stroke

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

METALEX LC-100
Stroke (maximum) 100mm
Strokes per minute 60 p/min
Number stroke speeds 6 steps
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Metalex is a trusted name in metalworking machinery and tooling, known for offering reliable performance, practical design, and outstanding value. Engineered to meet the demands of workshops, fabricators, and light industrial environments, the Metalex range includes equipment such as presses, guillotines, bandsaws, folders, and roll formers. Built with a focus on durability and ease of use, Metalex machines are well regarded for their solid construction and dependable operation across a wide range of applications

The LC100 Belt drive slotting head is a reliable and adaptable attachment designed to convert milling machines into efficient slotting machines. Featuring a smooth belt drive system, it delivers consistent power and precise vertical cutting motion, ideal for internal keyways, grooves, and square holes. Built with robust construction and easy mounting options, the LC100 enhances your milling machine's capabilities without compromising accuracy. Its adjustable stroke and feed settings provide versatility across a variety of materials and slotting applications

Features:

  • Belt drive system for smooth, consistent power transmission
  • Converts milling machines into versatile slotting machines
  • Adjustable stroke length for various slotting depths
  • Precise vertical cutting motion for keyways, grooves, and square holes
  • Robust, heavy duty construction for durability and accuracy
  • Tounge style mounting bracket for easy mounting on compatible milling machines
  • Adjustable feed rate to suit different materials and cutting requirements
  • Compact design minimizes interference with machine operations

NOTE : This is sold as an attachment so will need to be wired into your milling machine or powered separately.

  • Supplied with on/off switch only. All other wiring & protection to be arranged by the installer.

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
METALEX LC-100
Stroke (maximum) 100mm
Strokes per minute 60 p/min
Number stroke speeds 6 steps
Motor 370w / 415v 3 phase
Weight 95 kg
Shipping 1,200mm x 750mm x 500mm (110kg)
