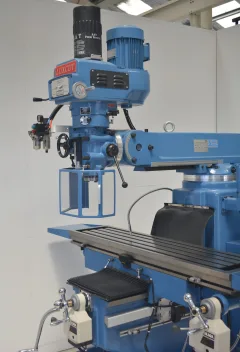

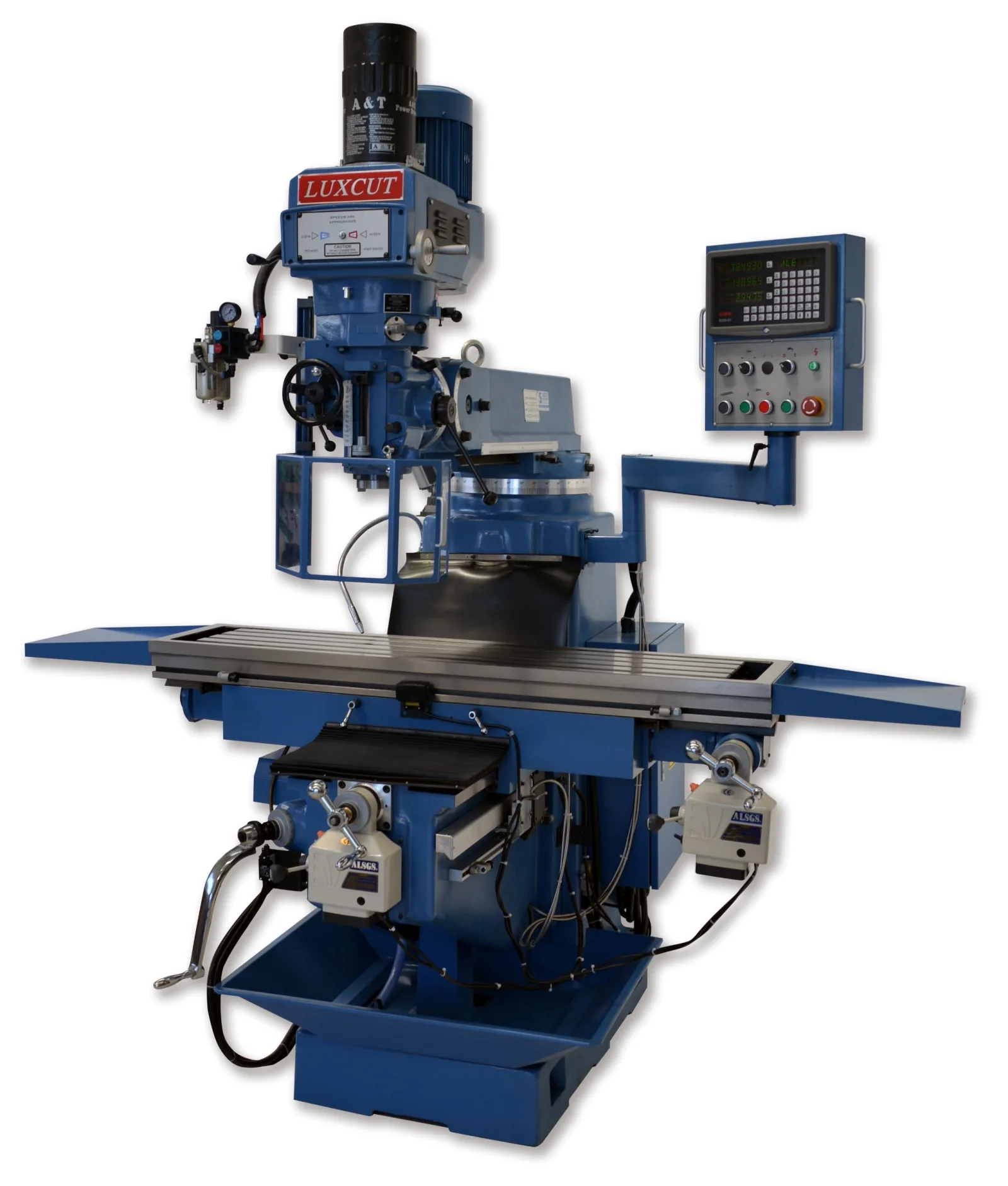

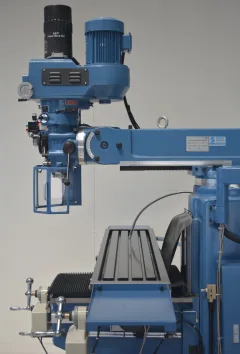

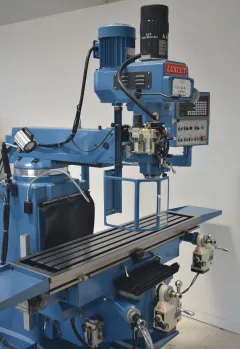

Luxcut TM-5VSL Turret Mill

Workshop Quality Series, Fitted with 3 axis digital readout. NT40 taper, 5hp, feeds, Powered knee lift.

$25,490.00 Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Table size 1500 x 330mm
Longitudinal travel 1015mm
Cross travel 420mm (385mm with DRO fitted)
Vertical travel 500mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Luxcut has been providing high quality workshop machinery for over 40 years. Renowned for precision, reliability, and durability, the brand offers a wide range of equipment, including lathes, mills, linishers, folders, drill presses, benders, and more. Designed to meet the needs of workshops, fabrication, and industrial applications, Luxcut products combine robust construction with ease of use, ensuring consistent performance across a variety of metalworking and fabrication tasks

Standard features:

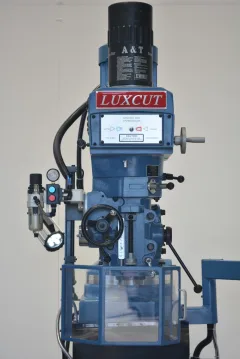

  • Taiwanese variable speed milling head
  • SINO 3 Axis Digital Readout System
  • Power feed on quill
  • Large wide knee providing good table support

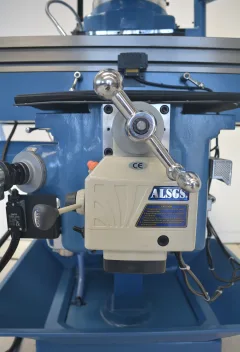

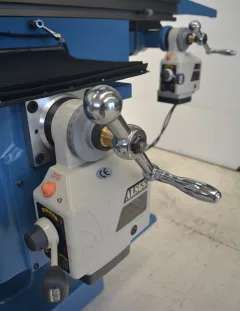

  • Electronic longitudinal power feed unit
  • Electronic cross power feed unit

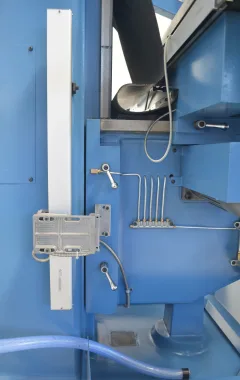

  • Centralised lubrication system
  • Brake on spindle
  • Meehanite casting
  • Powered elevating motor on knee
  • Air power draw bar
  • Spindle guard

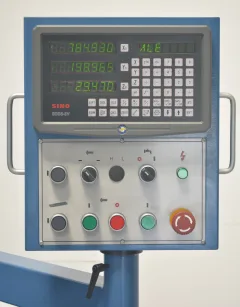

  • Pendant with control panel & integrated DRO

Solid square Y & Z slideways

  • Hardened and ground table & slideways
  • Coolant system
  • Halogen lamp
  • Splash tray
  • Pictured with optional slotting head attachment (sold separately)

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Table size 1500 x 330mm
Longitudinal travel 1015mm
Cross travel 420mm (385mm with DRO fitted)
Vertical travel 500mm
Ram travel 500mm
Quill diameter 105mm
Quill travel 127mm
Spindle taper NT40
Spindle nose to table 0 - 500mm
Spindle speed range 70 - 3,600 rpm Variable
Motor 3.75 kW (5hp)
Gross weight 2300 kg
Floor space W x D x H 3.4 x 2.1 x 2.5m
Shipping 5.9m3 2400kg

Talk to Scott Machinery

Is this the right machine for your work?

Tell us about the largest job, material and likely workload. We can confirm the fit — or point you to the model either side.
