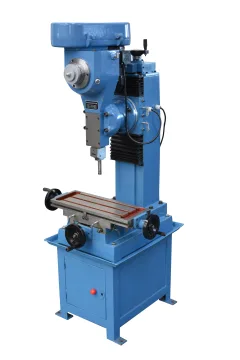

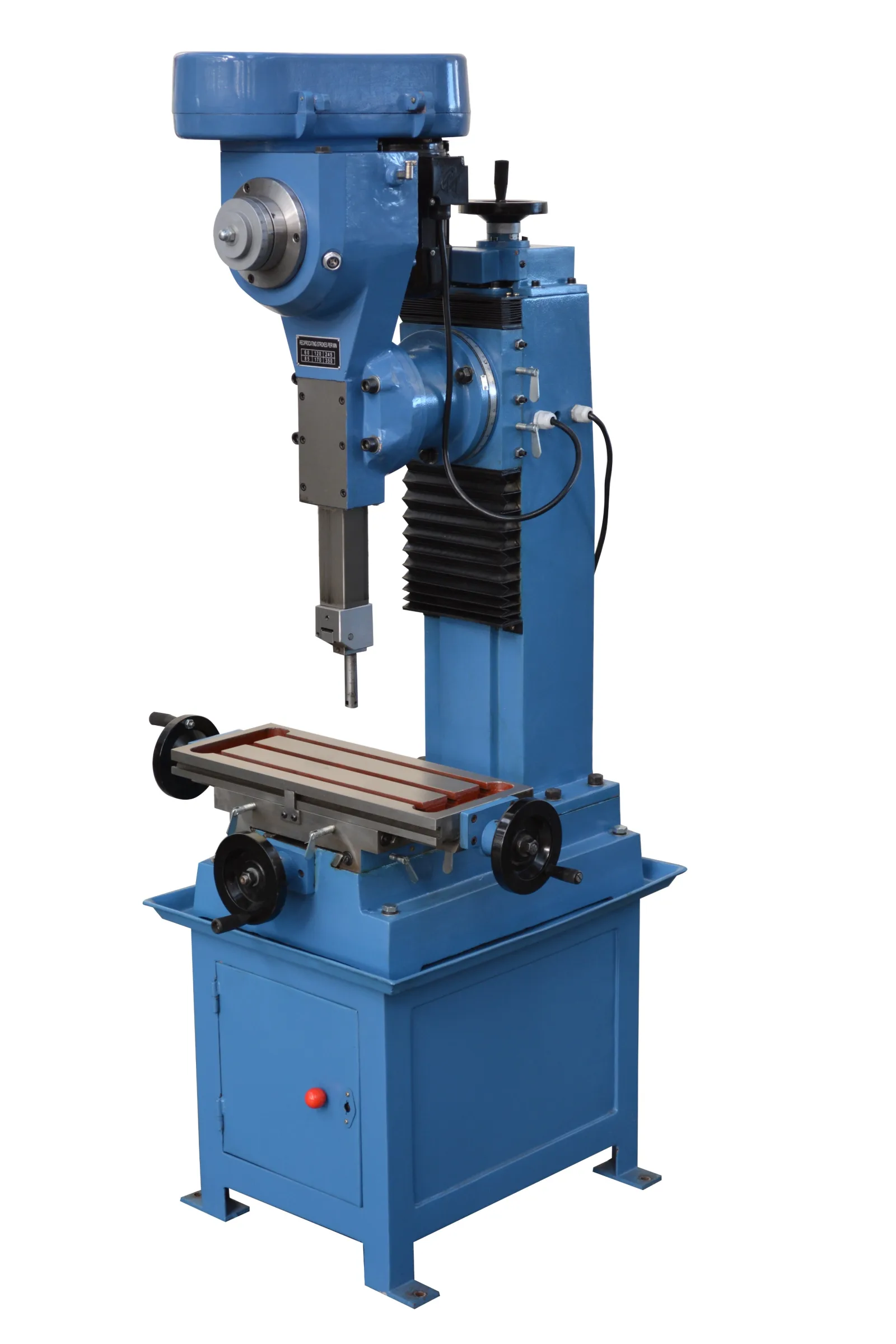

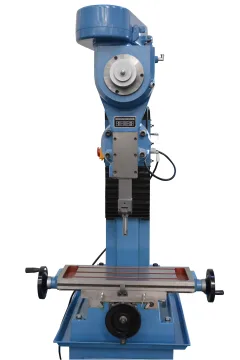

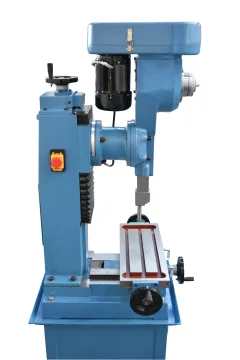

Metalex LC-125 Simple Slotting Machine

Compound table & cabinet stand

POA Excludes GST. Configuration and freight quoted with your enquiry.
Call 0800 215 215 Print product flyer

NZ Prepared, installed and supported nationwide by Scott Machinery.

Stroke length 125mm
Strokes per minute 6 steps 60, 85, 120, 170, 245, 350
Table size 500 x 200mm
Longitudinal table travel 200mm
NZ owned Since 1989
Industry people Practical machine advice
Auckland + Christchurch Two support hubs
Nationwide support Installation, training & service
Parts & accessories Large local range

Product overview

About this machine.

Metalex is a trusted name in metalworking machinery and tooling, known for offering reliable performance, practical design, and outstanding value. Engineered to meet the demands of workshops, fabricators, and light industrial environments, the Metalex range includes equipment such as presses, guillotines, bandsaws, folders, and roll formers. Built with a focus on durability and ease of use, Metalex machines are well regarded for their solid construction and dependable operation across a wide range of applications

The LC-125 is a versatile and compact vertical slotting machine designed for precise internal keyways, splines, and square holes in a wide range of materials. Featuring a 125 mm stroke and powered by a reliable 230V motor, it's ideal for maintenance workshops, toolrooms, and light production environments. Simple to operate and built with a solid cast iron frame, the LC-125 delivers accurate vertical motion and stable performance, perfect for those needing dependable slotting without the footprint of a full scale broaching machine.

Features

  • Compact slotting machine
  • 125 mm stroke length suitable for internal keyways, splines, and square holes
  • Adjustable stroke length
  • Adjustable stroke speed
  • Powered by a 230V single phase motor making it ideal for standard workshop power
  • Compact, space saving design perfect for toolrooms and maintenance bays
  • Solid cast iron construction ensures stability and durability
  • Adjustable ram height and feed rate for versatility across different materials
  • Simple, manual controls for ease of use and minimal training required
  • Precision vertical motion for clean, accurate slotting
  • Compound movement table
  • Cabinet floor stand
  • Slotting tool

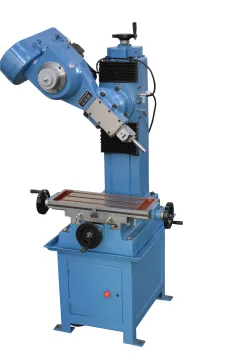

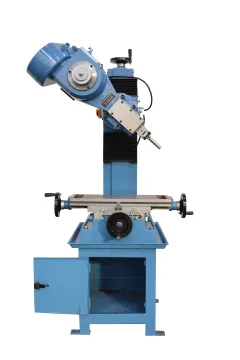

  • Slotting head can tilt +/- 90 degree
  • Low maintenance and robust for long term reliability

Published data

Specifications

Use these to shortlist. We’ll confirm the specification and configuration against the application.
Stroke length 125mm
Strokes per minute 6 steps 60, 85, 120, 170, 245, 350
Table size 500 x 200mm
Longitudinal table travel 200mm
Cross table travel 150mm
Motor power 550W / 230V
Weight 243kg
Shipping dimensions 800 x 800 x 1650mm (255kg)
